APC
APC SRC3000UXICH
Single-in and single-out 3K long machines include tax in most areas
- Model
- APC SRC3000UXICH
- Capacity / Power
- 3KVA / 2.1KW
- Dimensions mm
- 175*432*457
¥6,110.98View details
APC

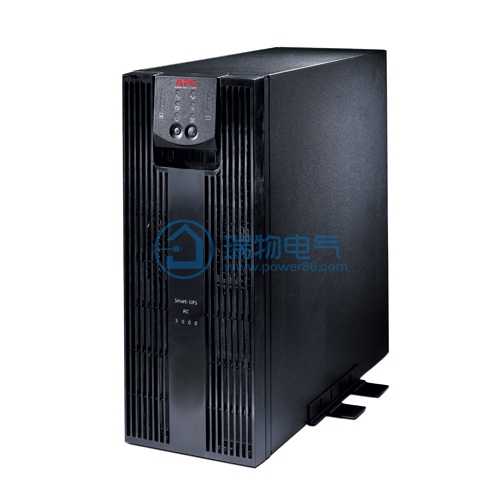

APC SRC3000XLICH
Single-in single-out 3K built-in battery labeling machine includes tax in most areas
¥7,816.60
- Rated power
- 2.1KW (kW)
- Rated capacity
- 3KVA (kVA)
- Input / output
- Single in and single out (220V:220V)
- Built-in battery voltage
- (standard machine) built-in battery 96V (DC)
- Net weight
- 34.00kg (kg)
- Gross weight
- 0kg (kg)
- Dimensions (L×W×H)
- 175*432*457mm (mm) U
Ratings
View on mobileDetailed specifications:
APC SRC3000XLICH output
| Output power Capacity | 2100 Wattage/3000 VA | ||
| Maximum Configurable Power | 2100 Wattage/3000 VA | ||
| Rated output voltage | 230V | ||
| Adjustable range of output voltage | Configurable for 220 or 230V rated output voltage | ||
| Full load efficiency | 89.0% | ||
| Output voltage distortion | Less than 3% | ||
| Output frequency (synchronized with main frequency) | 50/60Hz /- 3 Hz user adjustable/- 0.1 | ||
| Other output voltages | 220 | ||
| crest factor | 3 : 1 | ||
| Topology | double conversion online | ||
| Waveform Type | Sine wave | ||
| Output Connections |
|
||
| Bypass | Built-in bypass |
APC SRC3000XLICH Input
| Rated input voltage | 220V | ||
| Input frequency | 45 - 65 Hz (automatic adaptation) | ||
| Input terminal type |
|
||
| Input line length | 2.44 meters | ||
| Operating voltage range | 160 - 280V | ||
| Adjustable Input Voltage Range | 100 - 280V | ||
| Other input voltages | 230,240 |
APC SRC3000XLICH Communications and Management
| Interface Port | DB-9 RS-232,SmartSlot slot |
| Number of smart slots available | 1 |
| Control Panel | LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators. |
| Emergency Shutdown | Optional |
| audible alarm | Alarm when mains power failure: special low battery alarm overload continuous tone alarm |
APC SRC3000XLICH Battery and Runtime
| Battery Model | Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof | ||||||||||||
| Pre-installed battery | 1 | ||||||||||||
| Empty battery slot | 1 | ||||||||||||
| Typical charging time | 2 hours | ||||||||||||
| Replaceable battery pack | APCRBC120, SRC96XLBP2S, SRC96XLBP | ||||||||||||
| Runtime Chart | |||||||||||||
|
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output. |
||||||||||||
APC SRC3000XLICH Surge Protection and Filtering
| Surge suppression energy | 420 Joule |
| Data line protection | RJ-45 Modem/Fax (Modem/Fax) protection (4-wire dual) |
| Filter | Multi-stage noise filter, according to UL1449 standard |
APC SRC3000XLICH Physical Indicators
| High | 175.00 mm |
| Wide | 432.00 mm |
| deep | 457.00 mm |
| Equipment installation effective height | 4U |
| Net weight | 34.00 KG |
| Transport weight | 37.70 KG |
| Transportation height | 337.00 mm |
| Transport width | 622.00 mm |
| Transport length | 597.00 mm |
| Colour | Black |
| Quantity of products on each transport pallet | 12.00 |
APC SRC3000XLICH Environment
| Operating environment | 0 - 40 °C |
| Operating relative humidity | 0 - 95% |
| Operating height | 0-3000 m |
| Storage temperature | -20 - 50 °C |
| Storage Relative Humidity | 0 - 95% |
| Storage height | 0-15000 m |
| Online running heat dissipation | 652.00 BTU/hr |
| Audible noise 1 m from equipment surface | 45.00 dBA |
APC SRC3000XLICH compliance
| Management body certification | EN 60950,EN/IEC 62040-2 |
| Compliance with environmental requirements | RoHS 7b Exemption, China RoHS,REACH: SVHC not included |
| Standard warranty | Repair or replacement within 2 years, field service available, extended internal authorization optional |
