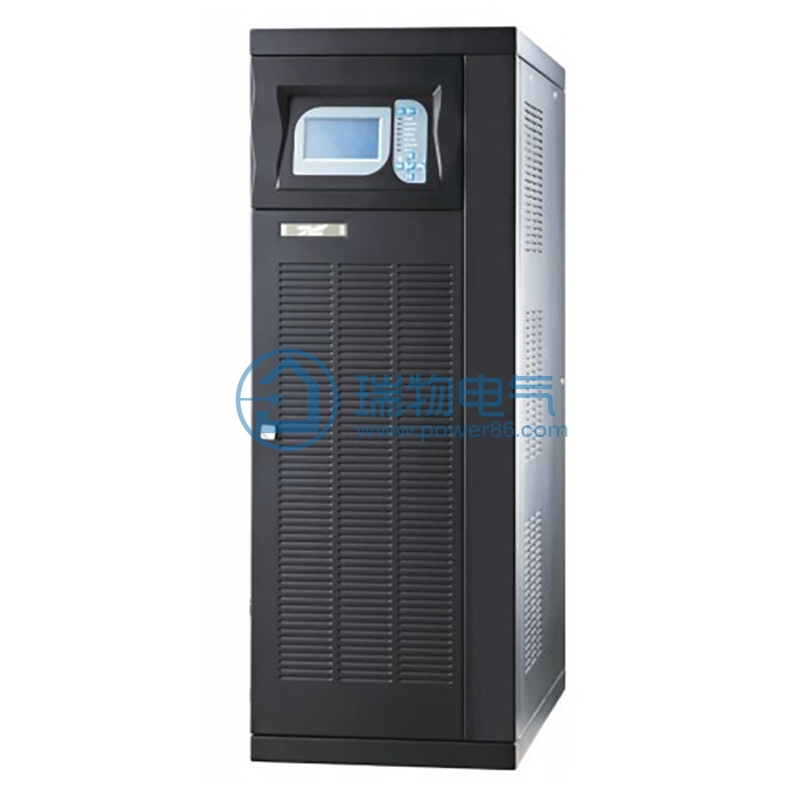

Kehua FR-UK3115

Name: Kehua FR-UK3115
Brand: Kehua
SKU: 1668
Availability: InStock

Kehua Transformer-based three-phase in / single-phase out 15KVA/12KW DC voltage 192V

Price on request

Ratings

UPS runtime configurations

View on mobile

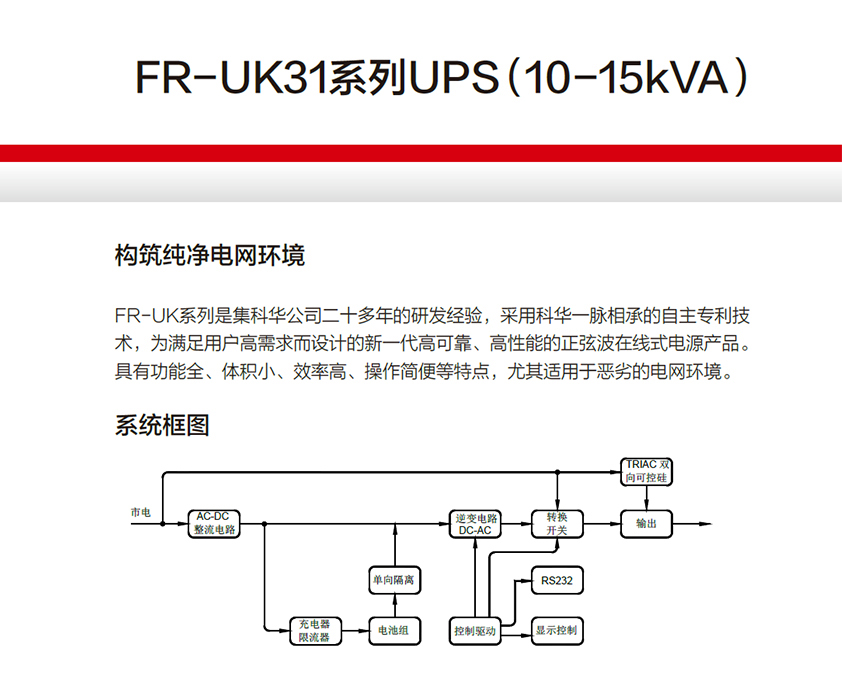

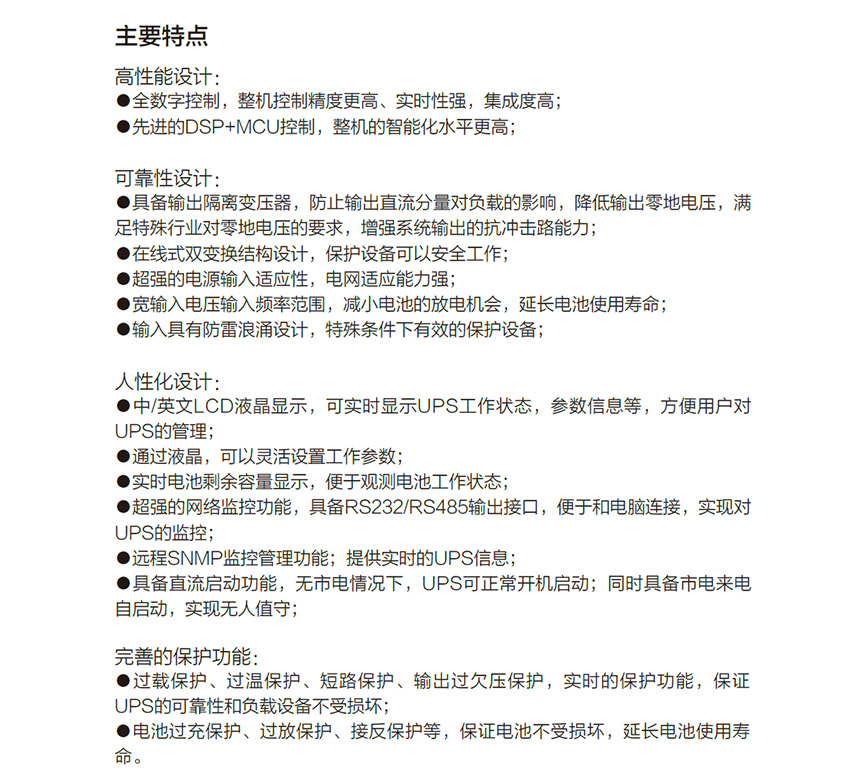

Product introduction https://img.rwyun.com/power86/rs1/ups/743/747/1668/1668_c0.jpg

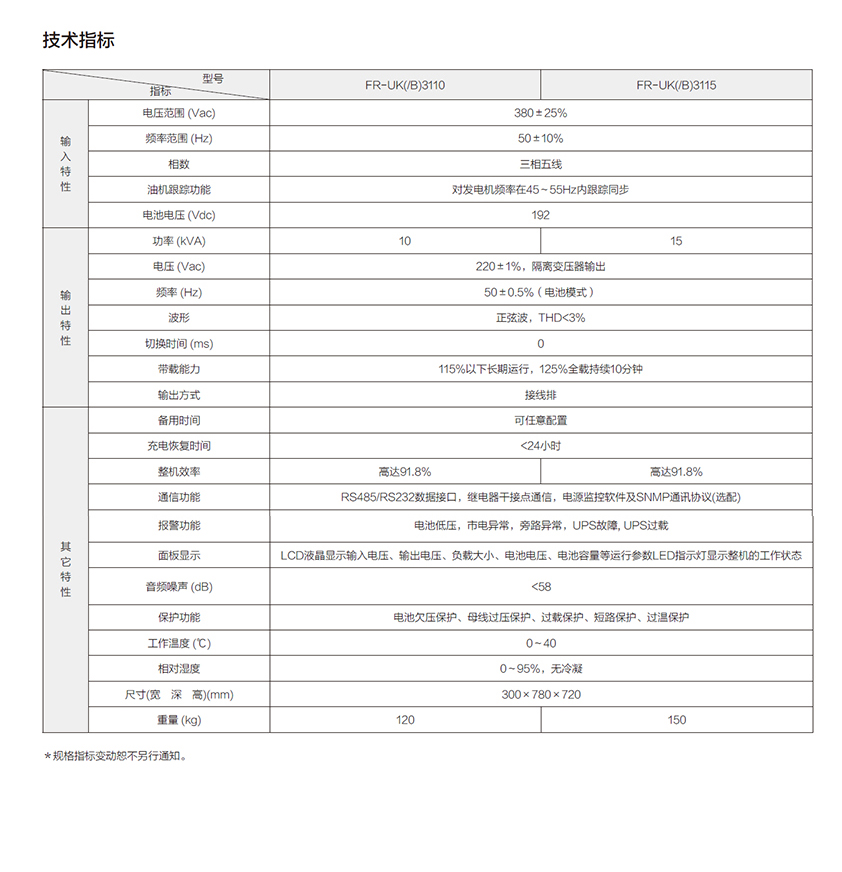

Detailed specifications:

Voltage range (Vac)	380±25%
Frequency range (Hz)	50±10%
Phase number	Three-phase five-wire
Oil machine tracking function	Synchronization of generator frequency within 45~55Hz
Battery voltage （Vdc）	192

Power （kVA）	15
Voltage (Vac)	220±1%, isolated transformer output
Frequency (Hz)	50±0.5% (battery mode)
Waveform	Sine wave, THD<3%
Switching time (ms)	0
Load-carrying capacity	Long-term operation below 115%, full load at 125% for 10 minutes
Output method	Terminal block

Standby time	Can be arbitrarily configured
Charging recovery time	<24 hours
Overall efficiency	Up to 91.8 percent
Communication function	RS485/RS232 data interface, relay dry contact communication, power monitoring software and SNMP communication protocol (optional)
Alarm function	Low battery voltage, abnormal mains supply, abnormal bypass, UPS failure, UPS overload
Panel display	LCD liquid crystal display input voltage, output voltage, load size, battery voltage, battery capacity and other operating parameters LED indicator the working status of the whole machine
Audio Noise (dB)	＜58
Protection function	Battery undervoltage protection, bus overvoltage protection, overload protection, short circuit protection, over temperature protection
Operating temperature （℃）	0~40
Relative humidity	0 ~ 95%, no condensation
Size (width * height * depth)(mm)	300780720
Weight （kg）	150

15KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	25mm²
Input neutral conductor size	25mm²
Input earth conductor size	10mm²
Input breaker	100A -3P
Output parameter
Output voltage	380V AC
Output conductor size	25mm²
Output neutral conductor size	25mm²
Output earth conductor size	10mm²
Output breaker	80A -3P
Battery specifications
External battery breaker	150A-3P
External battery cable size	10mm²

15KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	25mm²
Input neutral conductor size	25mm²
Input earth conductor size	10mm²
Input breaker	100A -3P
Output parameter
Output voltage	380V AC
Output conductor size	25mm²
Output neutral conductor size	25mm²
Output earth conductor size	10mm²
Output breaker	80A -3P
Battery specifications
External battery breaker	150A-3P
External battery cable size	10mm²
