Kehua

Kehua FR-UK3110

Name: Kehua FR-UK3110
Brand: Kehua
SKU: 1667
Availability: InStock

Kehua Online double-conversion Transformer-based three-phase in / single-phase out 10K/8KW

Price on request

Ratings

UPS runtime configurations

View on mobile

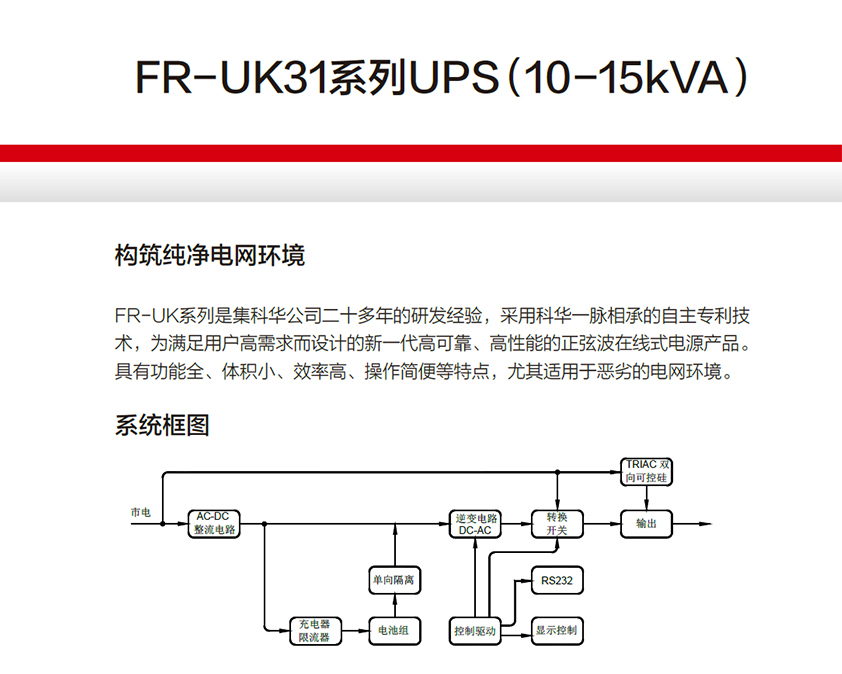

Product introduction https://img.rwyun.com/power86/rs1/ups/743/747/1667/1667_c0.jpg

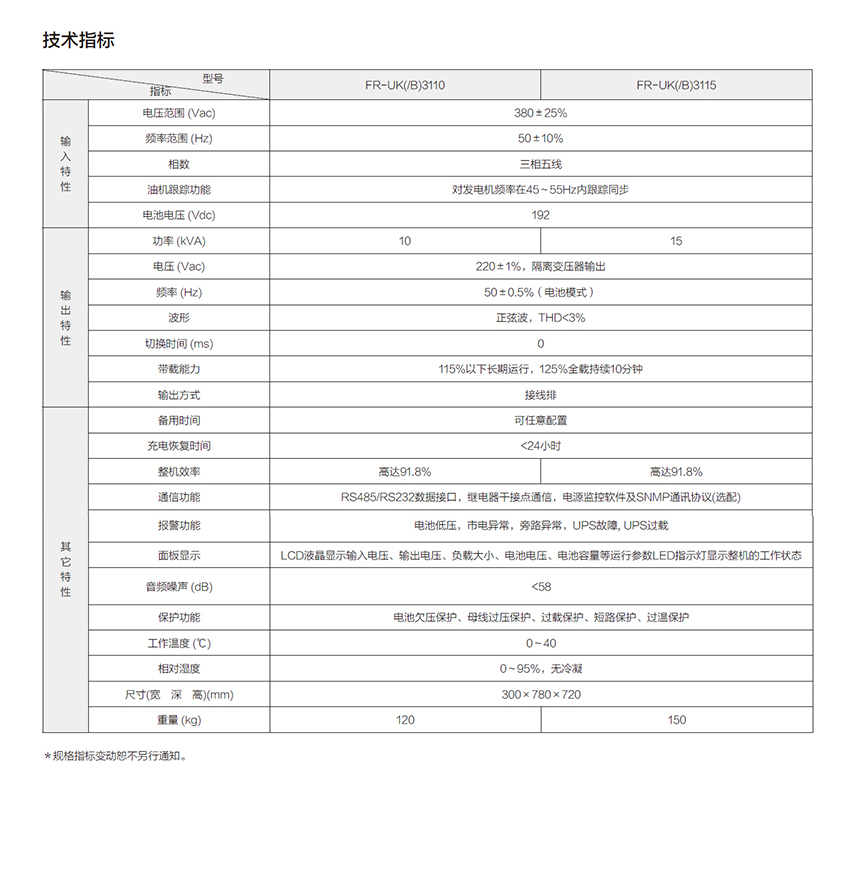

Detailed specifications:

Voltage range (Vac)	380±25%
Frequency range (Hz)	50±10%
Phase number	Three-phase five-wire
Oil machine tracking function	Synchronization of generator frequency within 45~55Hz
Battery voltage （Vdc）	192

Power （kVA）	10
Voltage (Vac)	220±1%, isolated transformer output
Frequency (Hz)	50±0.5% (battery mode)
Waveform	Sine wave, THD<3%
Switching time (ms)	0
Load-carrying capacity	Long-term operation below 115%, full load at 125% for 10 minutes
Output method	Terminal block

Standby time	Can be arbitrarily configured
Charging recovery time	<24 hours
Overall efficiency	Up to 91.8 percent
Communication function	RS485/RS232 data interface, relay dry contact communication, power monitoring software and SNMP communication protocol (optional)
Alarm function	Low battery voltage, abnormal mains supply, abnormal bypass, UPS failure, UPS overload
Panel display	LCD liquid crystal display input voltage, output voltage, load size, battery voltage, battery capacity and other operating parameters LED indicator the working status of the whole machine
Audio Noise (dB)	＜58
Protection function	Battery undervoltage protection, bus overvoltage protection, overload protection, short circuit protection, over temperature protection
Operating temperature （℃）	0~40
Relative humidity	0 ~ 95%, no condensation
Size (width * height * depth)(mm)	300780720
Weight （kg）	120

10KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -2P
Battery specifications
External battery breaker	100A-2P
External battery cable size	10mm²

10KVA input AC 380V: output AC 220V

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -2P
Battery specifications
External battery breaker	100A-2P
External battery cable size	10mm²

10KVA input AC 380V: output AC 380V

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -3P
Battery specifications
External battery breaker	100A-3P
External battery cable size	10mm²
