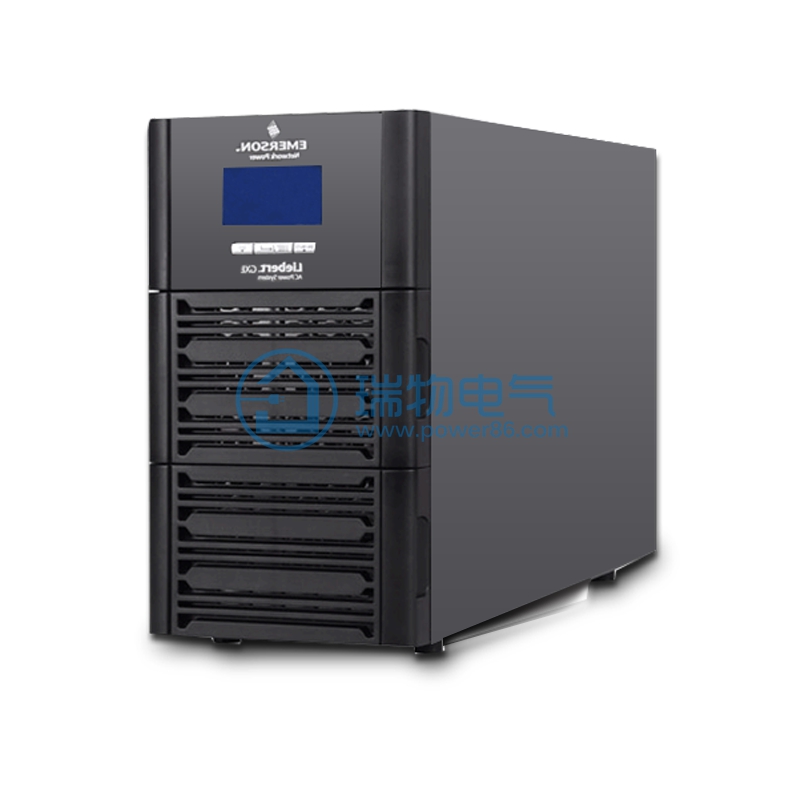

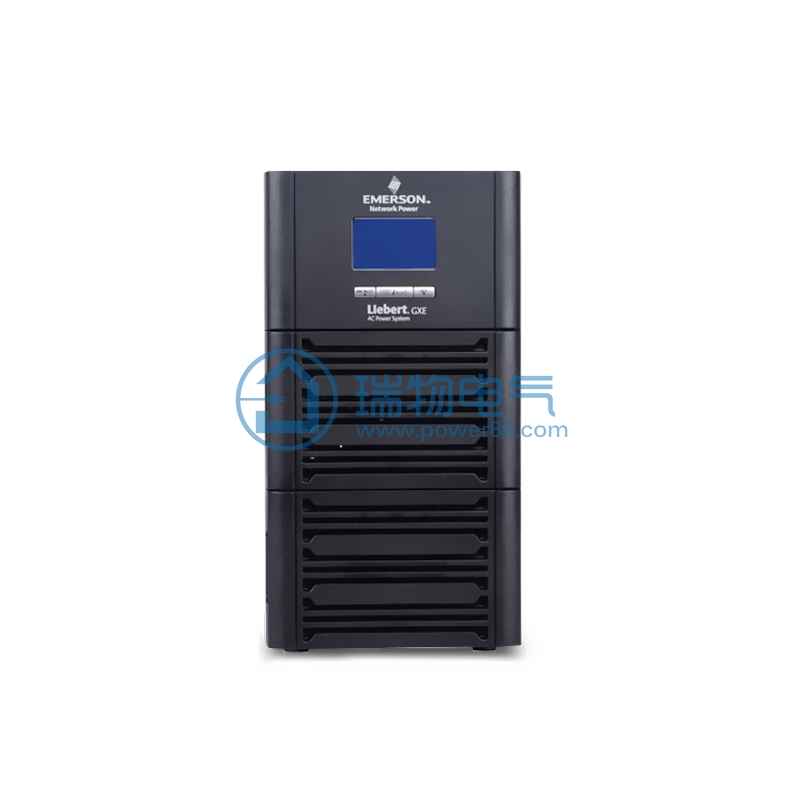

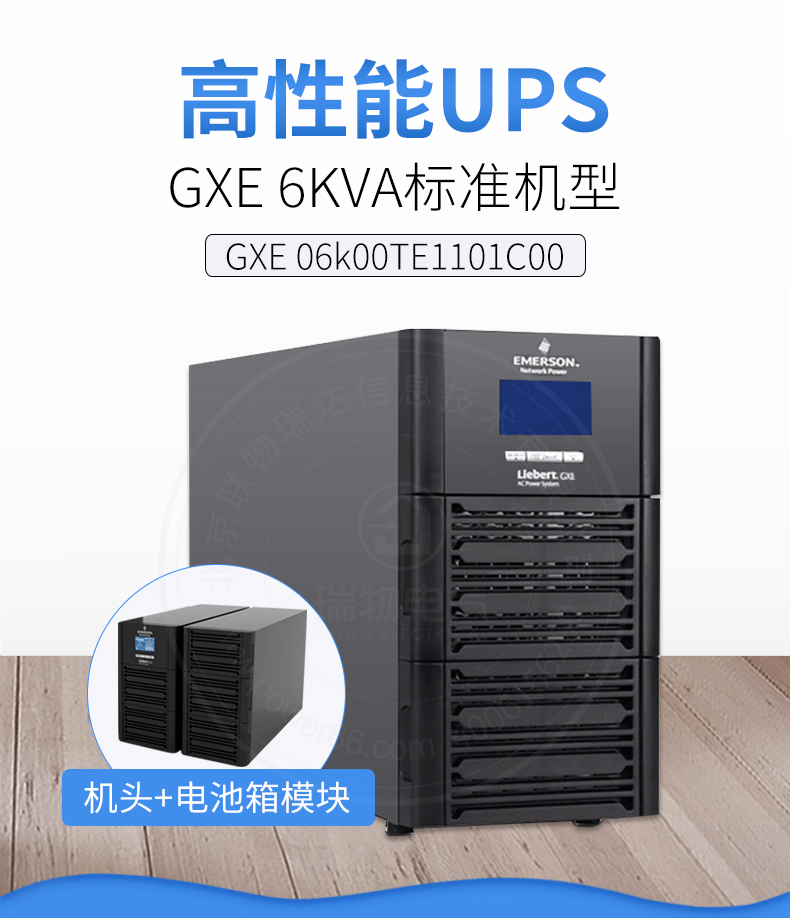

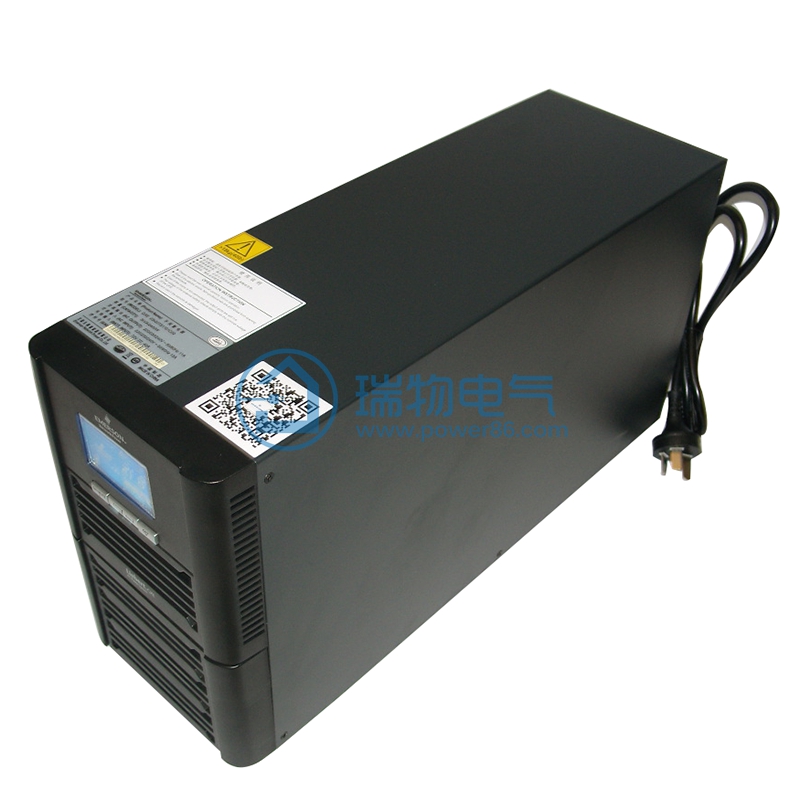

Emerson GXE 06K00TE1101C00

Detailed specifications:

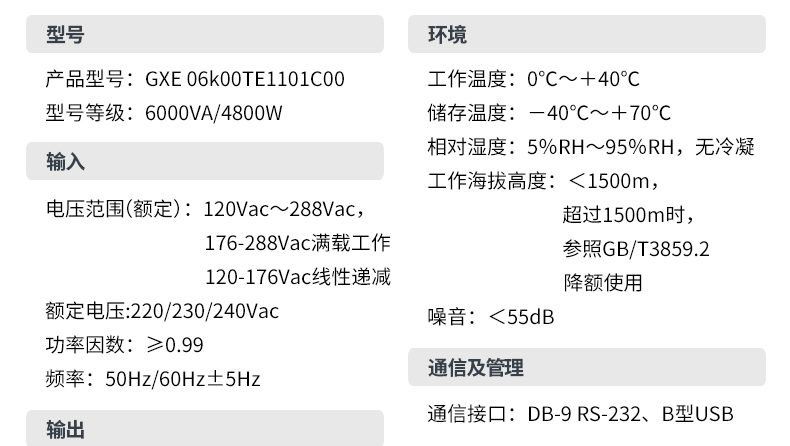

Emerson GXE 06K00TE1101C00 detailed parameter table

Capacity	6KVA
Model	GXE06K00TE1101C00

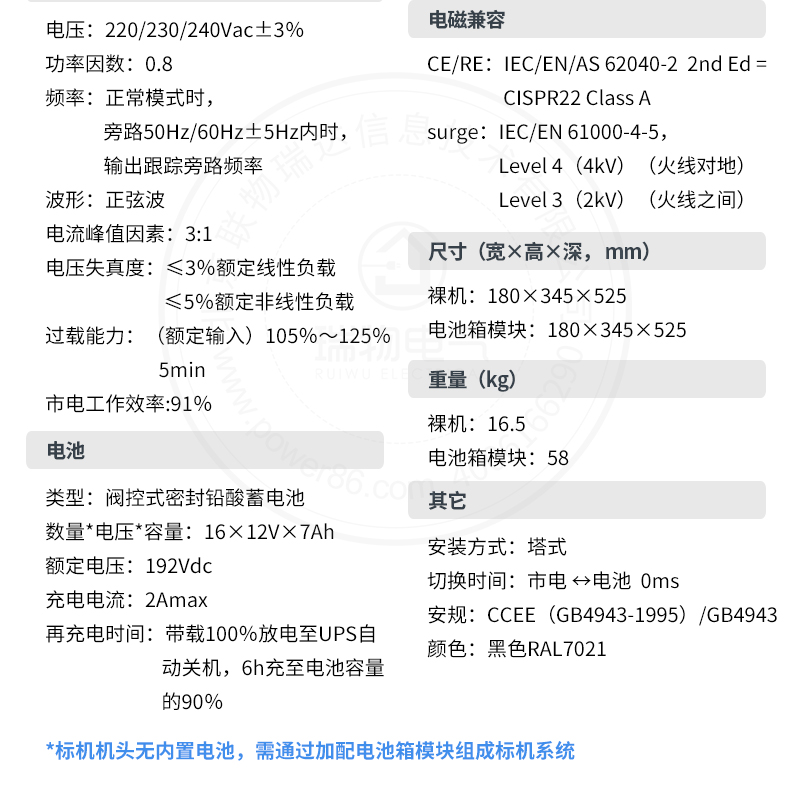

Emerson GXE 06K00TE1101C00 Input Parameters

Rectifier type	IGBT rectification
Rated voltage	220V single-phase three-wire
Input voltage range	120Vac ~ 288Vac,176-288 full load operation; 120-176vac linear decrease
Input frequency range	50 Hz/60 Hz ± 5 Hz
Input power factor	Single-phase ≥ 0.99

Emerson GXE 06K00TE1101C00 output parameters

Rated output power	6000VA / 4.8KW
Rated output voltage	Single-phase 220Vac
Output frequency	50Hz/60 Hz +/- 5Hz
Work style	double transform online
Output waveform	Sine wave
Transfer time	0ms
Overload capacity	Rated input: 105-125, 5min;

Emerson GXE 06K00TE1101C00 battery and run time

Battery Model	Maintenance-free sealed lead-acid battery
Standard model Backup time	>4min
Battery pack model
Battery typical charging time	With load 100% discharge to UPS automatic shutdown, 6 hours charging 90% of battery capacity
Battery voltage	1922V

Emerson GXE 06K00TE1101C00 system parameters and standards

Mounting	Tower
Overall efficiency	Up to 91%
Electromagnetic Compatibility	ICE/EN/AS 62040-2 2nd Ed=CISPR22 Class A
Surge protection	ICE/EN 61000-4-5,level 4(4kv)(fire to ground);level 3(2kv)(L,N to ground)
Type of safety regulations	CCEE(GB4943-1995)

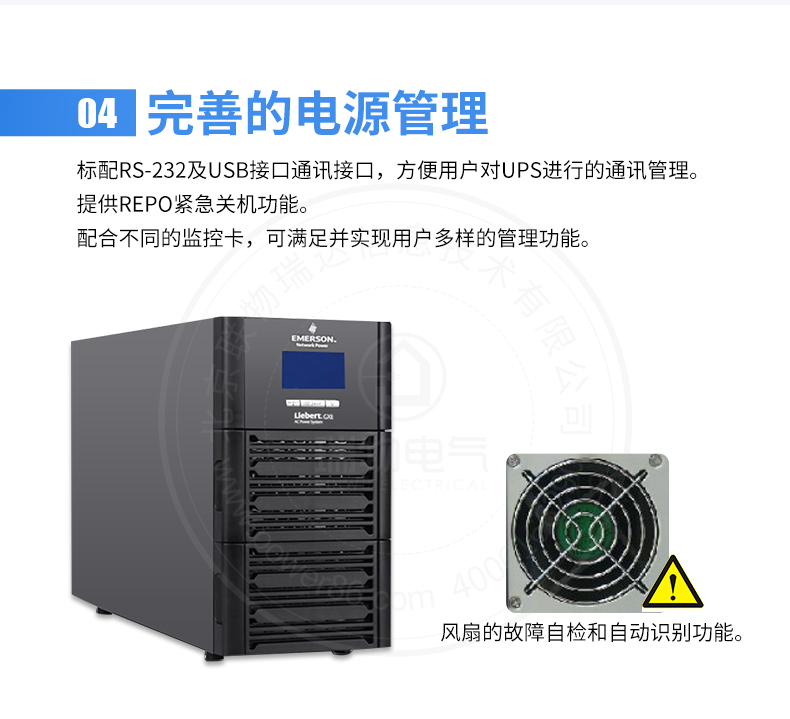

Emerson GXE 06K00TE1101C00 Communication and Management

Interface Port	DB-9 RS-232,B-type USB, optional external SNMP;

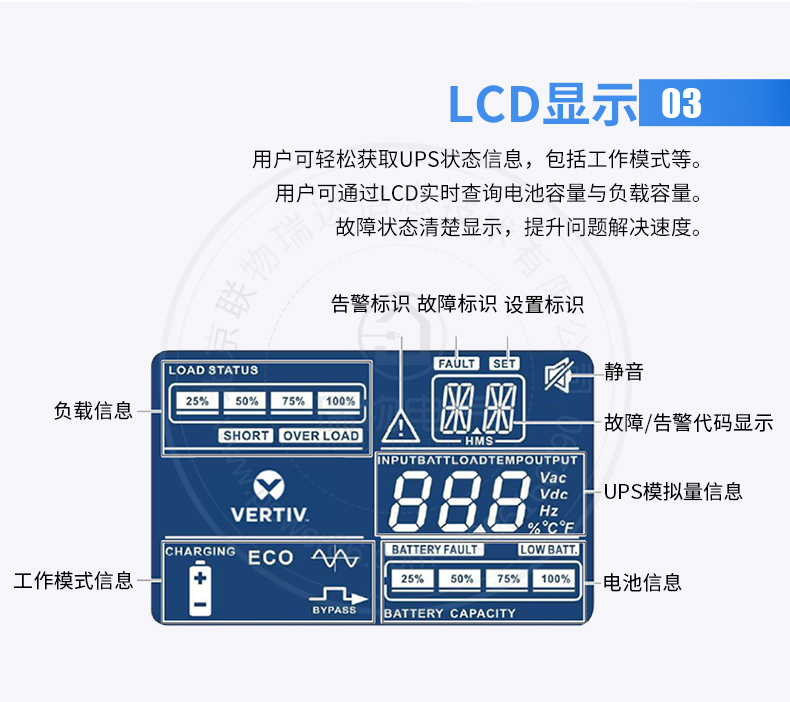

Control Panel	Multi-function LCD status management console.
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

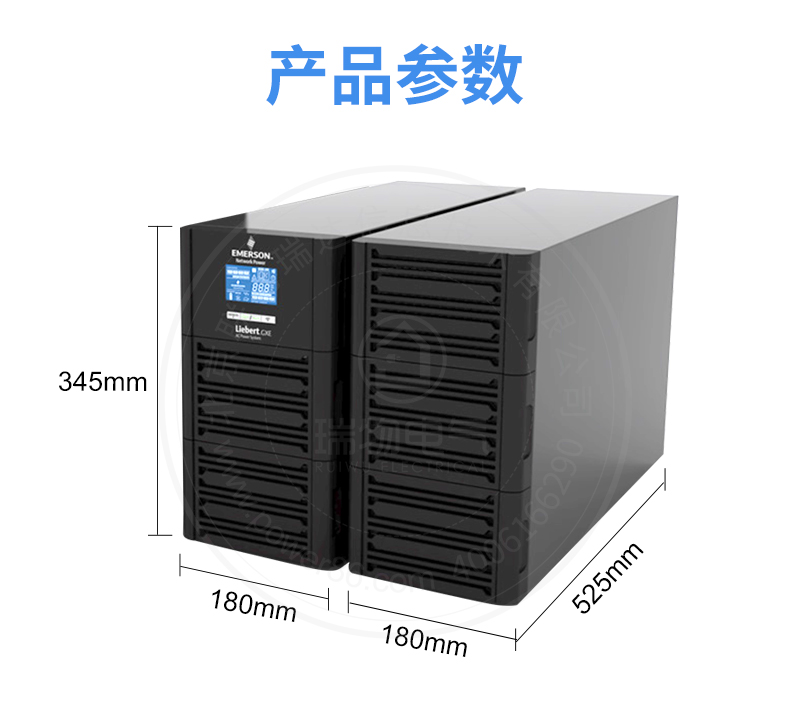

Emerson GXE 06K00TE1101C00 Physical Indicators

Host:
W	180.00 mm
D	525.00 mm
H	345.00 mm
Weight	16.5KG
Battery box module:
W	180.00mm
D	525.00mm
H	345.00mm
Weight	58KG
Colour	Black

Emerson GXE 06K00TE1101C00 Environment

Operating environment	0 - 40 °C
Operating relative humidity	5 - 95% free of condensation
Operating height	At 40°C, up to 2,000 meters, no derating required.
Storage temperature	-40 - 70 °C
Storage Relative Humidity	0 - 95% RH, non-condensing
Storage height	0-15000 m
Audible noise 1 m from equipment surface	<55.00 dB

Emerson GXE 06K00TE1101C00 Warranty

Standard warranty

Repair or replacement within 3 years

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm2
Input neutral conductor size	4mm2
Input earth conductor size	4mm2
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm2
Output neutral conductor size	4mm2
Output earth conductor size	4mm2
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm2

Data not yet provided
