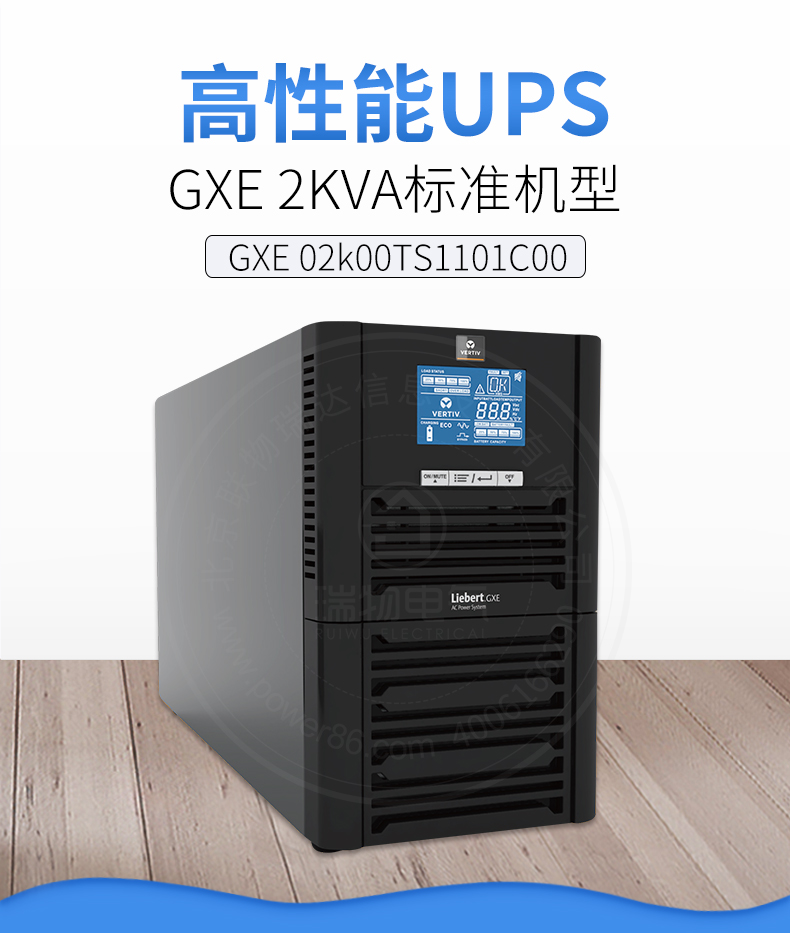

Emerson GXE 02K00TS1101C00

Detailed specifications:

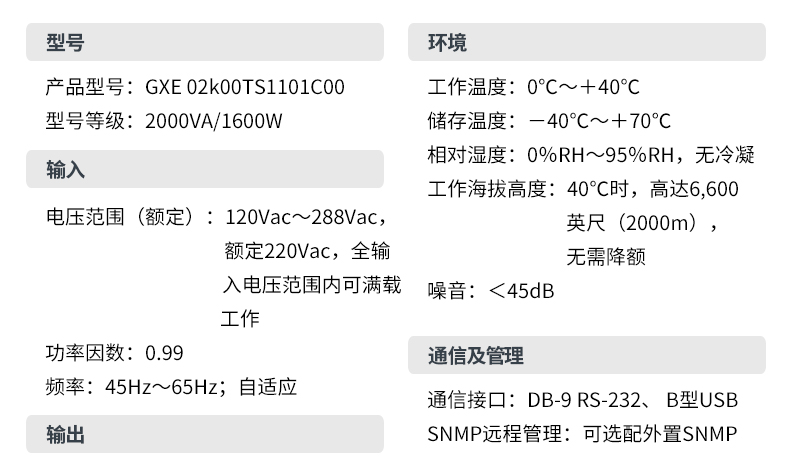

Emerson GXE 02K00TS1101C00 detailed parameter table

Capacity	2KVA
Model	GXE02K00TS1101C00

Emerson GXE 02K00TS1101C00 Input Parameters

Rectifier type	IGBT rectification
Rated voltage	220V single-phase three-wire
Input voltage range	120Vac~288Vac
Input frequency range	45Hz~65Hz
Input power factor	Single-phase ≥ 0.99

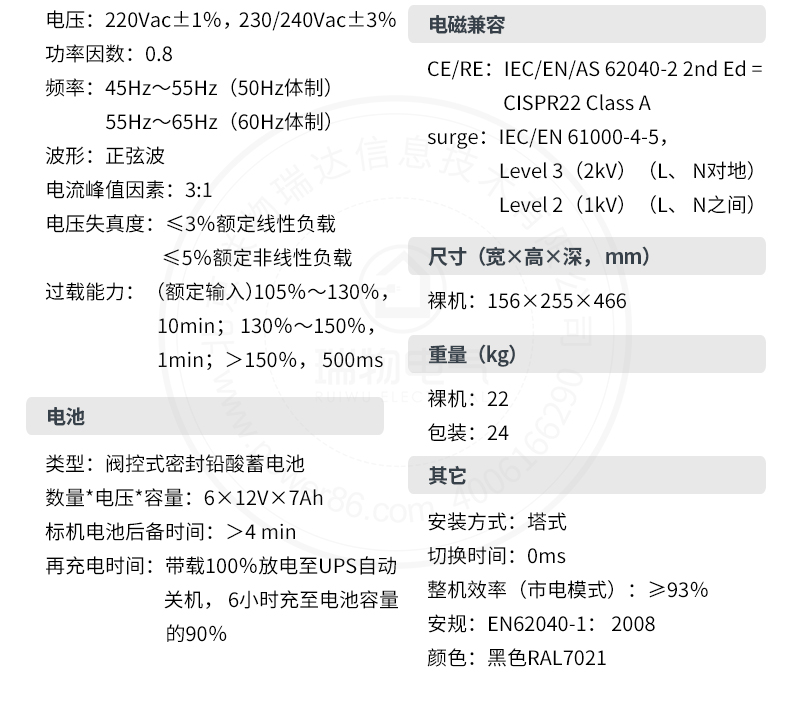

Emerson GXE 02K00TS1101C00 output parameters

Rated output power	2000VA / 1.6KW
Rated output voltage	Single-phase 220Vac
Output frequency	50/60 Hz ± 5 Hz
Work style	double transform online
Output waveform	Sine wave
Transfer time	0ms
Overload capacity	Rated input: 105-130, 10min;130-150, 1min; >150, 500ms

Emerson GXE 02K00TS1101C00 battery and run time

Battery Model	Maintenance-free sealed lead-acid battery
Standard model Backup time	>4min
Battery pack model
Battery typical charging time	With load 100% discharge to UPS automatic shutdown, 6 hours charge to 90% of battery capacity
Battery voltage	72V

Emerson GXE 02K00TS1101C00 system parameters and standards

Mounting	Tower
Overall efficiency	Up to 91%
Electromagnetic Compatibility	ICE/EN/AS 62040-2 2nd Ed=CISPR22 Class A
Surge protection	ICE/EN 61000-4-5,level 3(2kv)(L,N to ground),level 2 (1kv)(L,N between)
Type of safety regulations	EN62040-1:2008

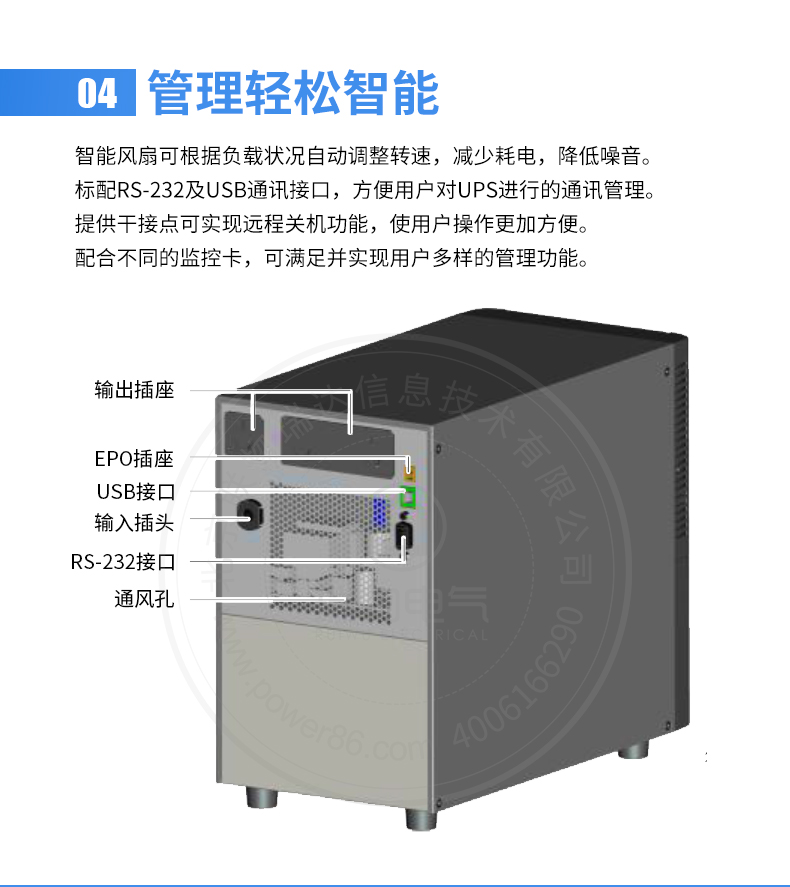

Emerson GXE 02K00TS1101C00 Communication and Management

Interface Port	DB-9 RS-232,B-type USB, optional external SNMP;

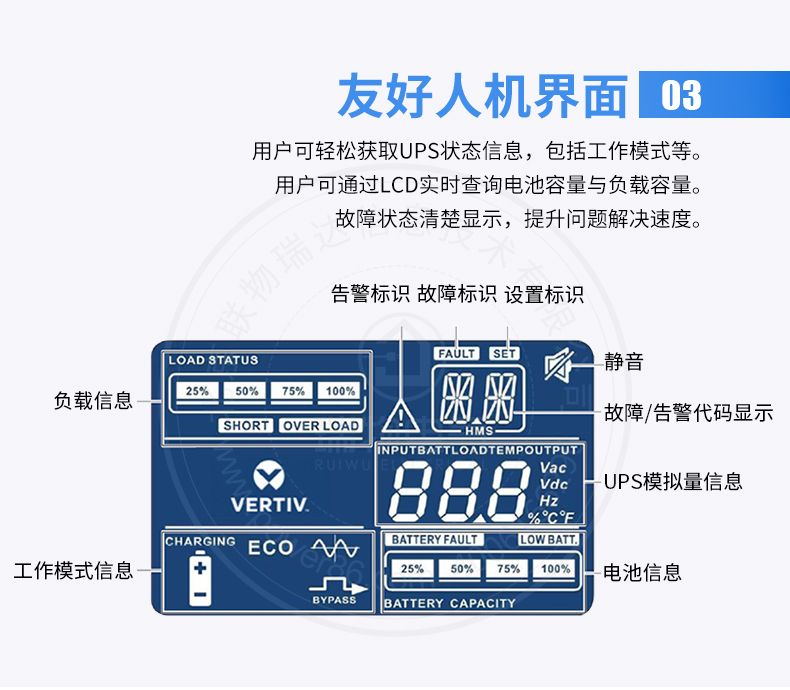

Control Panel	Multi-function LCD status management console.
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

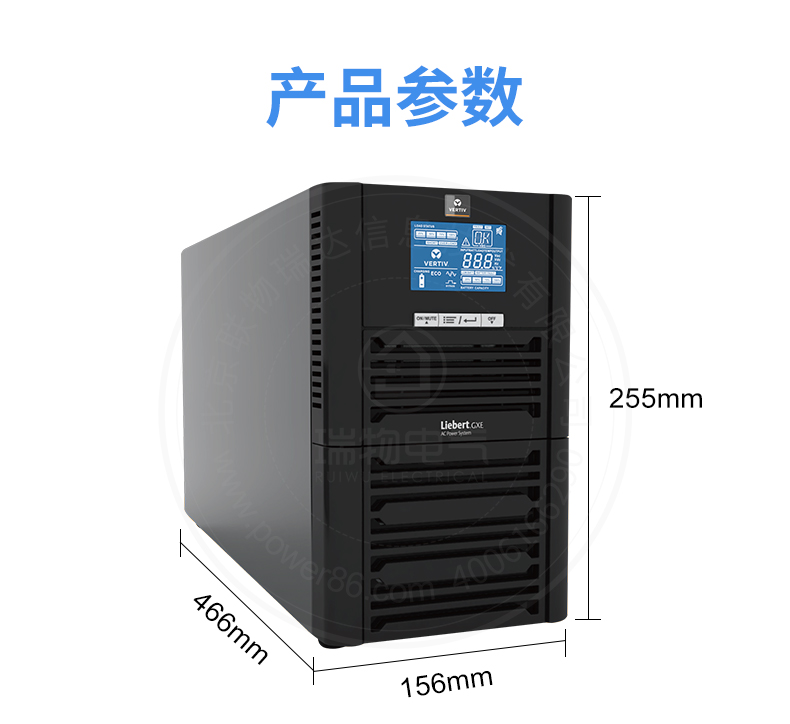

Emerson GXE 02K00TS1101C00 Physical Indicators

W	156.00 mm
D	466.00 mm
H	255.00 mm
Weight	22 KG
Colour	Black

Emerson GXE 02K00TS1101C00 Environment

Operating environment	0 - 40 °C
Operating relative humidity	5 - 95% free of condensation
Operating height	At 40°C, up to 2,000 meters, no derating required.
Storage temperature	-40 - 70 °C
Storage Relative Humidity	0 - 95% RH, non-condensing
Storage height	0-15000 m
Audible noise 1 m from equipment surface	<45.00 dB

Emerson GXE 02K00TS1101C00 Warranty

Standard warranty

Repair or replacement within 3 years

2KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm2
Input neutral conductor size	2.5mm2
Input earth conductor size	2.5mm2
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm2
Output neutral conductor size	2.5mm2
Output earth conductor size	2.5mm2
Output breaker	10A -2P
Battery specifications
External battery breaker	40A-2P
External battery cable size	4mm2
