Emerson GXE 06K00TL1101C00

Name: Emerson GXE 06K00TL1101C00
Brand: Emerson
SKU: 1540
Price: 4252.22 CNY
Availability: InStock

Single-in, single-out online high-frequency 6K long machine can issue VAT invoices by postage in most areas.

¥4,252.22List price ¥15308.00

Ratings

UPS runtime configurations

View on mobile

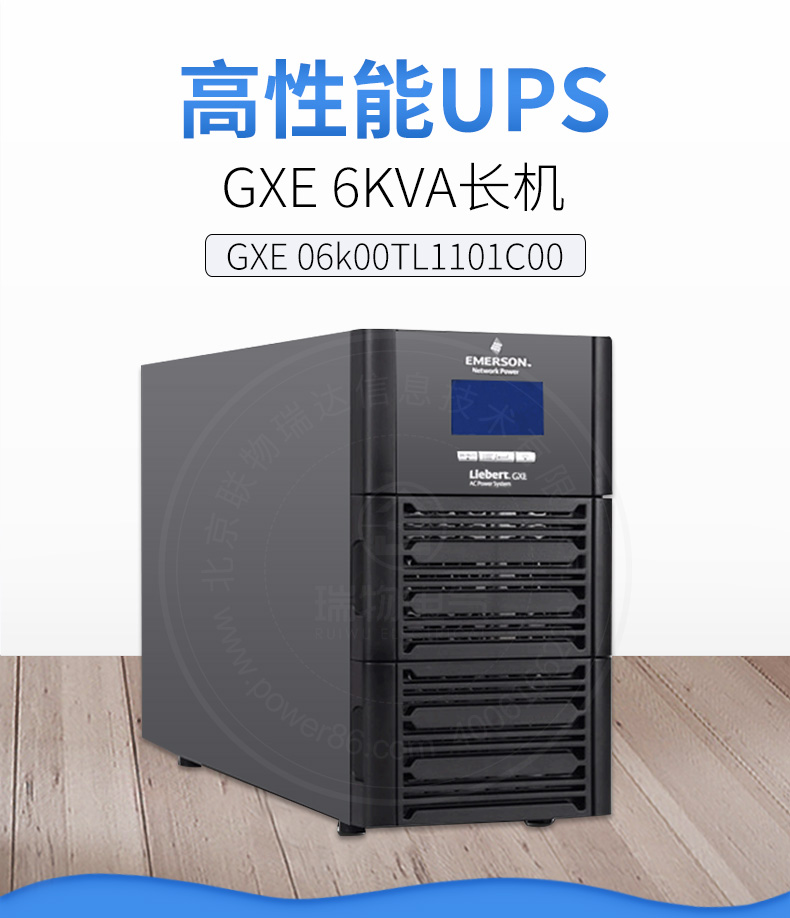

Product introduction https://img.rwyun.com/power86/rs1/ups/13/724/1540/1540_c0.jpg

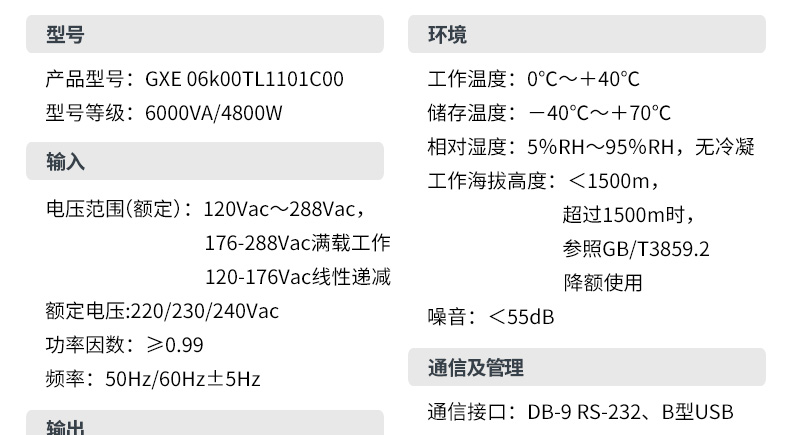

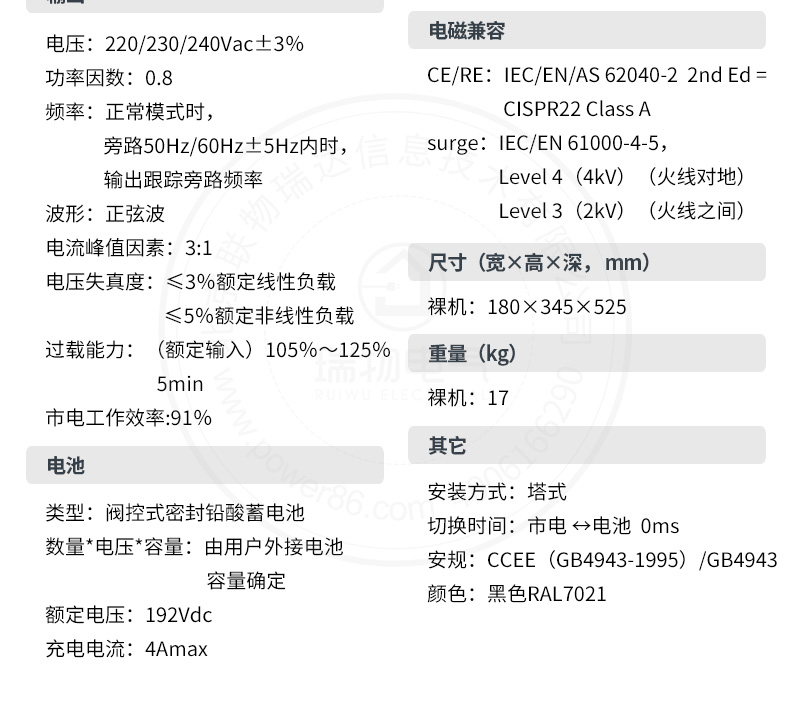

Detailed specifications:

Capacity	6KVA
Model	GXE06K00TL1101C00

Rectifier type	IGBT rectification
Rated voltage	220V single-phase three-wire
Input voltage range	120Vac ~ 288Vac,176-288 full load operation; 120-176vac linear decrease
Input frequency range	50Hz/60Hz±5Hz
Input power factor	Single-phase ≥ 0.99

Battery Model	Maintenance-free sealed lead-acid battery
Backup time	30 minutes -8 hours
Battery pack model
Battery typical charging time	8 hours
Battery voltage	192V

Mounting	Tower
Overall efficiency	Up to 91%
Electromagnetic Compatibility	ICE/EN/AS 62040-2 2nd Ed=CISPR22 Class A
Surge protection	ICE/EN 61000-4-5,level 4(4kv)(fire to ground);level 3(2kv)(L,N to ground)
Type of safety regulations	CCEE(GB4943-1995)

Interface Port	DB-9 RS-232,B-type USB, optional external SNMP;

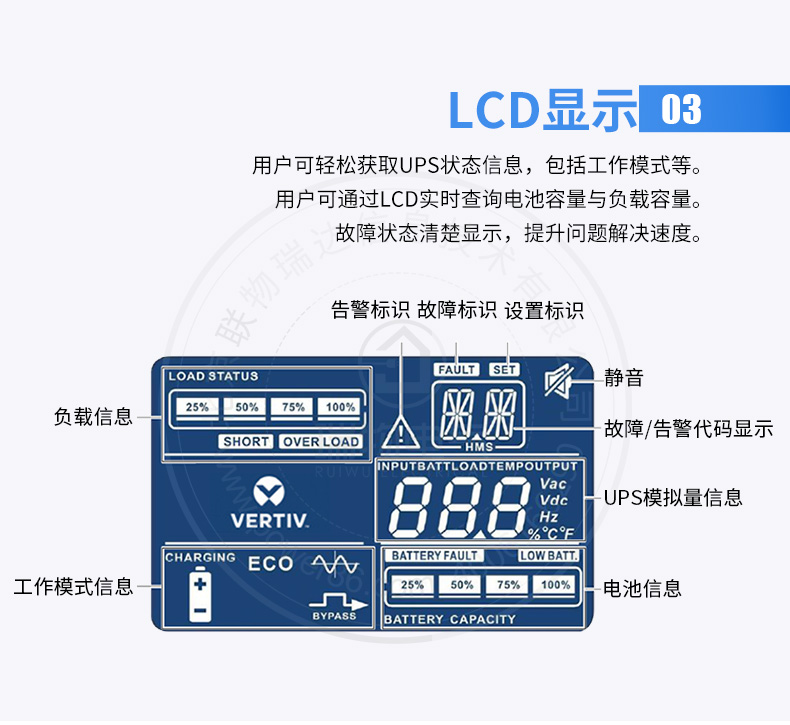

Control Panel	Multi-function LCD status management console.
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

Operating environment	0 - 40 °C
Operating relative humidity	5 - 95% free of condensation
Operating height	At 40°C, up to 2,000 meters, no derating required.
Storage temperature	-40 - 70 °C
Storage Relative Humidity	0–95% RH, non-condensing
Storage height	0-15000 m
Audible noise 1 m from equipment surface	<55.00 dB

Standard warranty

Repair or replacement within 3 years

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
