APC

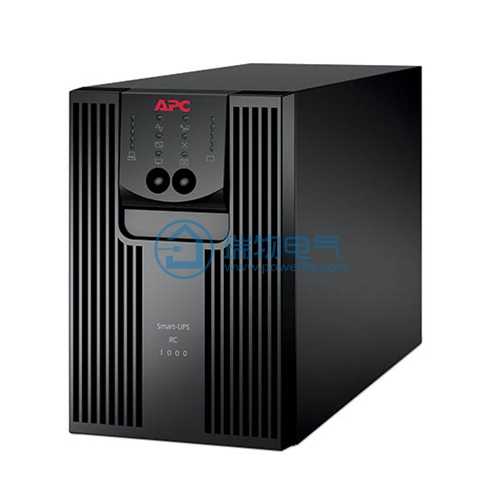

APC SRC1000UXICH2

Single-in, single-out 1K long machine includes tax in most areas

¥1,938.90

Ratings

UPS runtime configurations

View on mobile

Detailed specifications:

Output power Capacity	800 watts/1000 VA
Maximum Configurable Power	800 watts/1000 VA
Rated output voltage	220V,230V
Adjustable range of output voltage	Configurable for 220 or 230V rated output voltage
Full load efficiency	88.0%
Output voltage distortion	Less than 2%
Output frequency (synchronized with main frequency)	50/60Hz /- 3 Hz user adjustable/- 0.1
Other output voltages	240
crest factor	3 : 1
Topology	double conversion online
Waveform Type	Sine wave
Output Connections	(4) Chinese outlet
Output voltage THD	< 3% linear load and <5% non-linear load
half-load efficiency	82%
Bypass	Built-in bypass

Rated input voltage

220V

Input frequency

47 - 63 Hz

Input terminal type

IEC-320 C20

Input line length

1.22 m

Operating voltage range

160 - 280V

Adjustable Input Voltage Range

100 - 280V

Other input voltages

230,240

Interface Port	DB-9 RS-232,SmartSlot slot
Number of smart slots available	1
Control Panel	LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators.
Emergency Shutdown	Yes
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

Battery Model	No internal battery-using external battery system
Typical charging time	2 hours
Precautions for replacing battery modules	Unit ships without batteries
Rated battery voltage	36V

Surge suppression energy	420 Joule
Filter	Multi-stage noise filter, according to UL1449 standard
Data line protection	RJ-45 Modem/Fax (Modem/Fax) protection (4-wire dual)

High	257.00 mm
Wide	166.00 mm
deep	420.00 mm
Equipment installation effective height	4U
Net weight	7.20 KG
Transport weight	9.60 KG
Transportation height	384.00 mm
Transport width	288.00 mm
Transport length	556.00 mm
Colour	Black
Quantity of products on each transport pallet	12.00

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-20 - 50 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	652.00 BTU/hr
Audible noise 1 m from equipment surface	50.00 dBA

Management body certification	EN 60950,EN/IEC 60950-1,EN/IEC 62040-1,EN/IEC 62040-2
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS,REACH: SVHC not included
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

1KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
