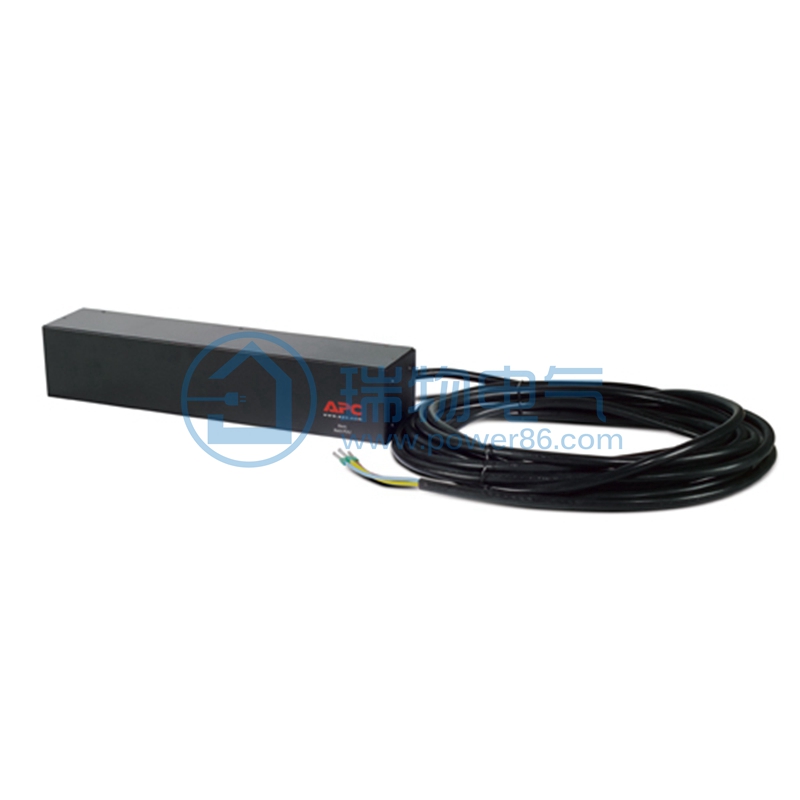

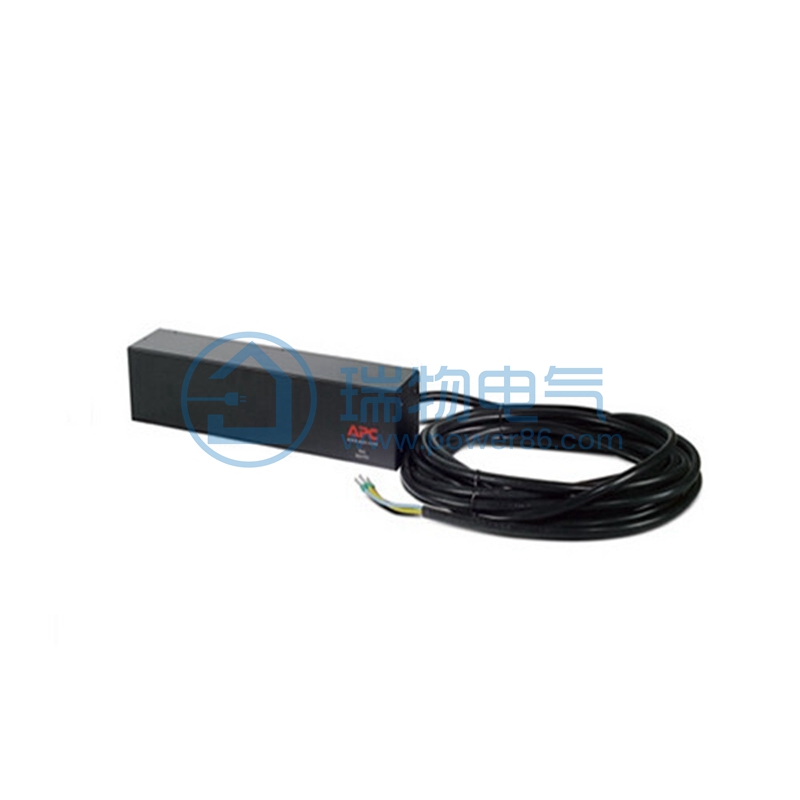

AP7585

Name: AP7585
SKU: 26
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	32A
Output Connections	(4) IEC 320 C19
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Input terminal type	Hard Wire 3-wire
Input line length	8.53 m
Number of power cords	1
Maximum input current	32A
Load capacity	7360VA
Physical indicators
Net weight	4.09KG
High	89.00 mm
Wide	437.00 mm
deep	89.00 mm
Transport weight	5.00KG
Transportation height	152.00 mm
Transport width	521.00 mm
Transport length	521.00 mm
Colour	Black
Environment
Operating environment	0-45°C
Operating relative humidity	0-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	0-95%
Storage height	0-15000 m
Conformity
Management body certification	CE, GOST, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Other Environmental Compliance	China RoHS

Data not yet provided
