AP9559

Name: AP9559
SKU: 28
Availability: InStock

Price on request

Ratings

View on mobile

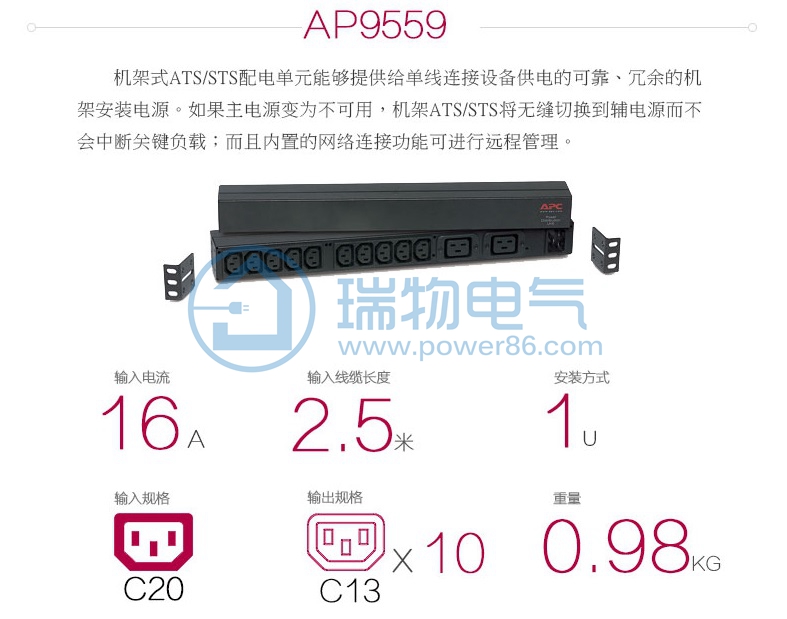

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1927/28/28_c0.jpg

Detailed specifications:

Output
Rated output voltage	120V, 208V, 230V
Maximum total load current	16A
Output Connections	(10) IEC 320 C13；(2) IEC 320 C19
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Input terminal type	IEC-320 C20
Input line length	2.5 m
Number of power cords	1
Acceptable Input Voltage	90-250 VAC
Maximum line current per phase	16A
Maximum input current	16A
Load capacity	3680VA

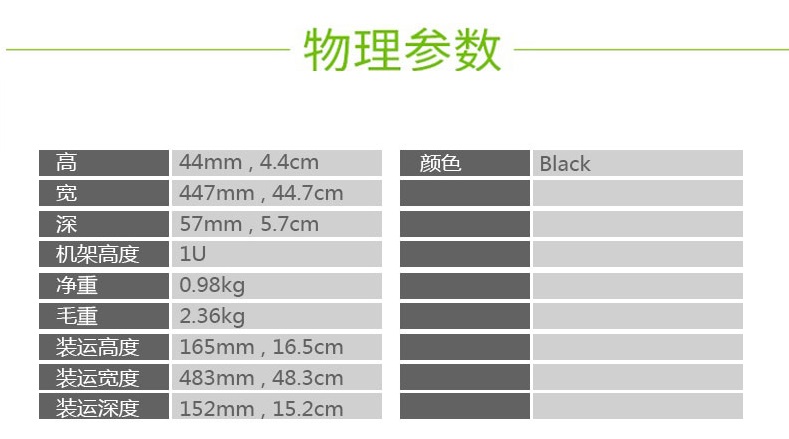

Physical indicators
Net weight	0.98KG
High	44.00 mm
Wide	447.00 mm
deep	57.00 mm
Transport weight	2.36KG
Transportation height	165.00 mm
Transport width	483.00 mm
Transport length	152.00 mm
Colour	Black
Environment
Operating environment	0-45°C
Operating relative humidity	0-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	0-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, CE, UL, VDE, Victoria
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Other Environmental Compliance	China RoHS

Data not yet provided
