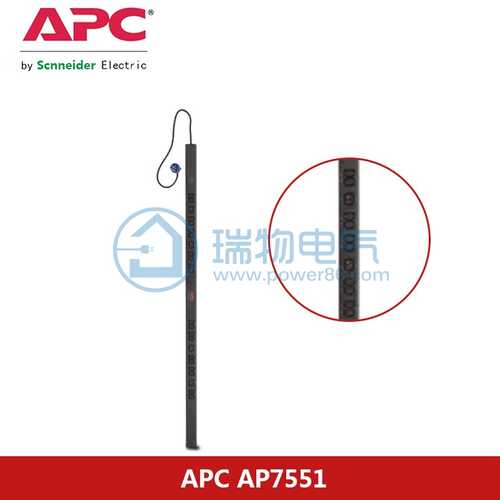

AP7551

Name: AP7551
SKU: 22
Availability: InStock

Price on request

Ratings

View on mobile

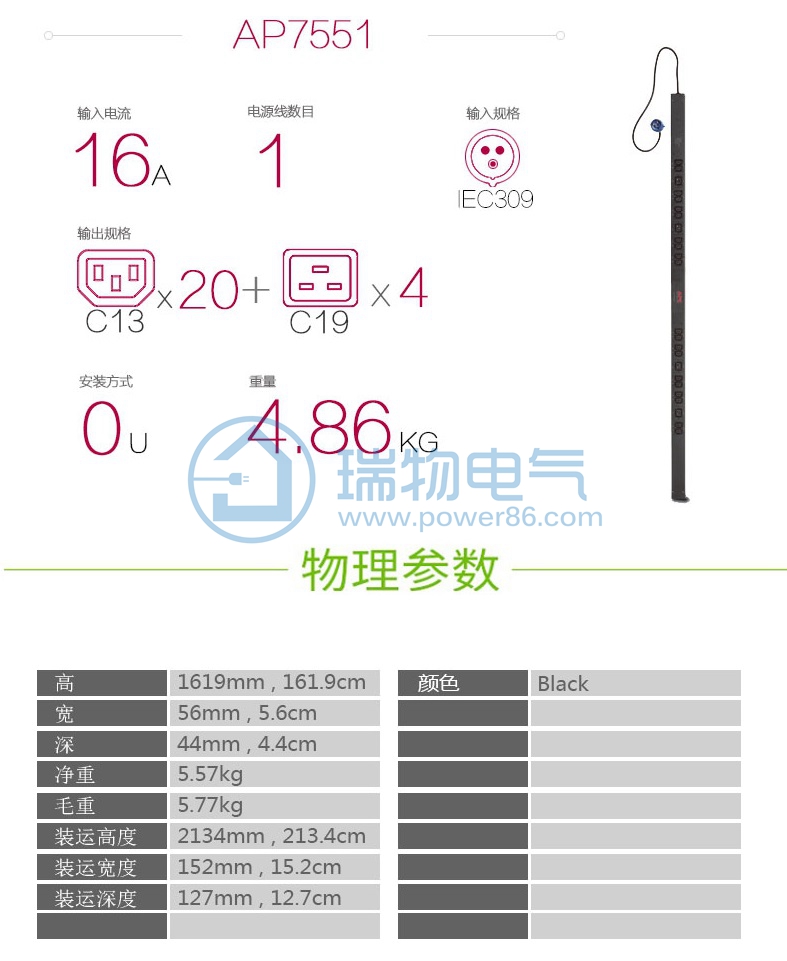

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1927/22/22_c0.jpg

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	16A
Output Connections	(20) IEC 320 C13；(4) IEC 320 C19
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Input terminal type	IEC 309 16A 2P+E
Input line length	0.91 m
Number of power cords	1
Maximum input current	16A
Load capacity	3680VA
Physical indicators
Net weight	4.86KG
High	1619.00 mm
Wide	56.00 mm
deep	44.00 mm
Transport weight	5.77KG
Transportation height	2134.00 mm
Transport width	152.00 mm
Transport length	127.00 mm
Colour	Black
Environment
Operating environment	0-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	CE, GOST, IRAM, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Other Environmental Compliance	China RoHS

Data not yet provided
