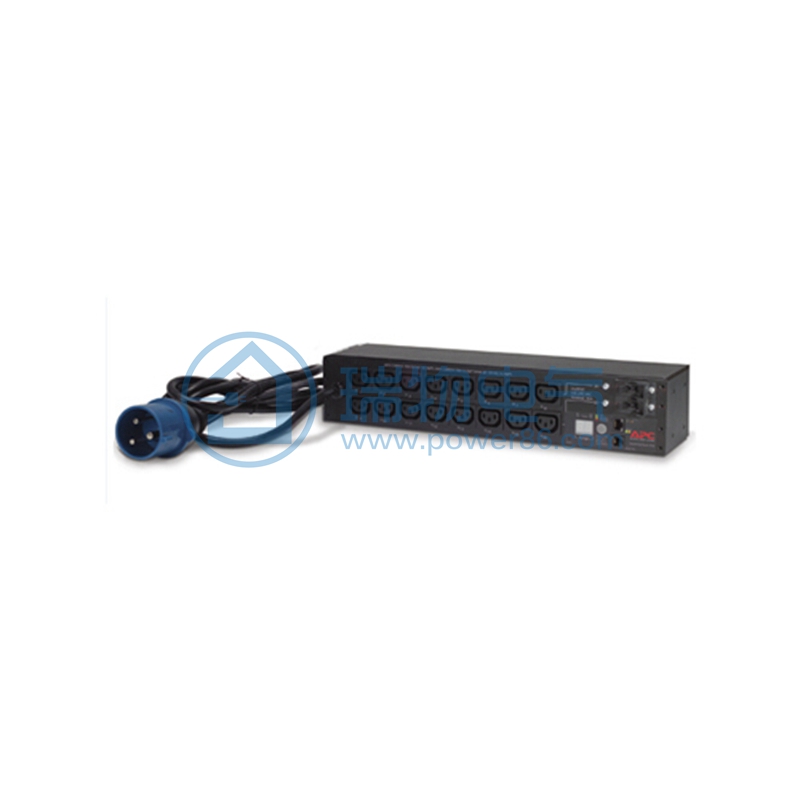

AP7922

Name: AP7922
SKU: 4
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	32A
Output Connections	(16) IEC 320 C13
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Input terminal type	IEC 309 32A 2P+E
Input line length	3.05 m
Number of power cords	1
Acceptable Input Voltage	220-240 VAC
Maximum input current	32A
Load capacity	7360 VA
Physical indicators
Net weight	4.50 KG
High	89.00 mm
Wide	445.00 mm
deep	114.00 mm
Transport weight	6.55 KG
Transportation height	140.00 mm
Transport width	508.00 mm
Transport length	368.00 mm
Colour	Black
Environment
Operating environment	0-45°C
Operating relative humidity	0-95%
Operating height	0-3000 m
Storage temperature	0-25 - 65°C
Storage Relative Humidity	0-95%
Storage height	0-15000 m
Conformity
Management body certification	CE, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Other Environmental Compliance	China RoHS

Data not yet provided
