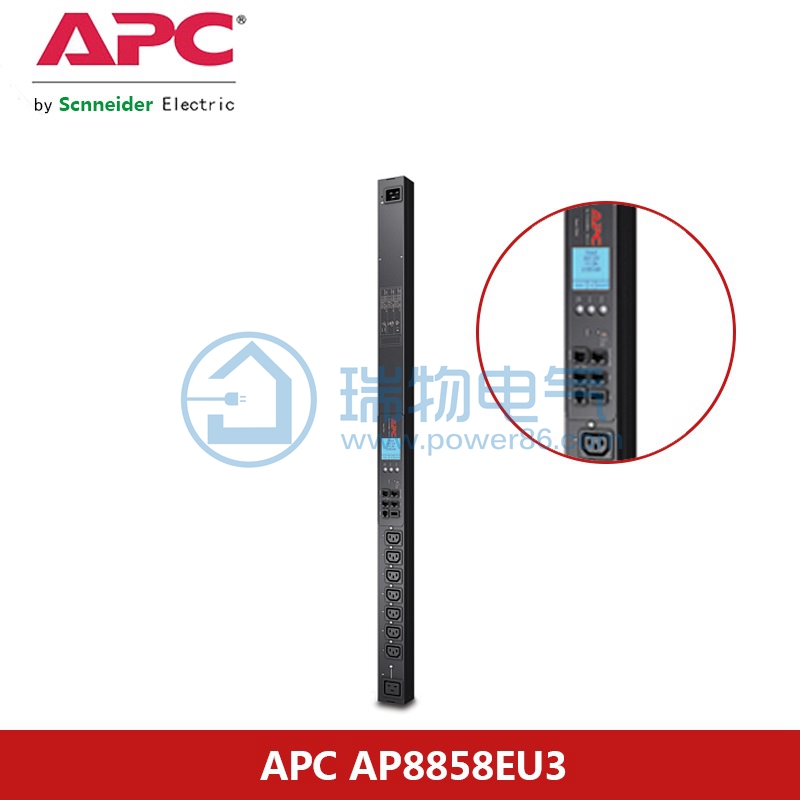

AP8958EU3

Name: AP8958EU3
SKU: 8
Availability: InStock

Price on request

Ratings

View on mobile

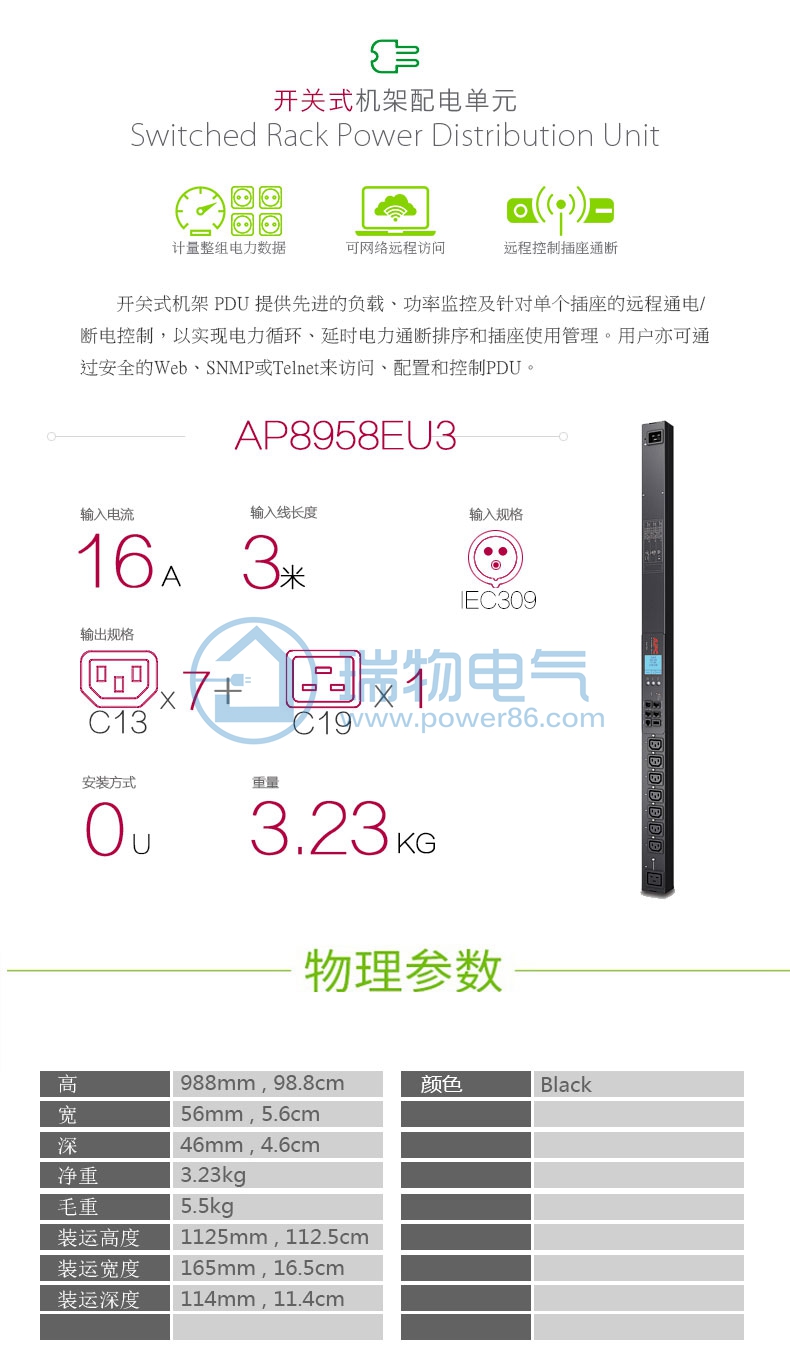

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1908/8/8_c0.jpg

Detailed specifications:

Output
Rated output voltage	200V, 208V, 230V
Maximum total load current	16A
Output Connections	(7) IEC 320 C13；(1)IEC 320 C19
Overload protection	No
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Adjusted Reduced Input Current (North America)	16A

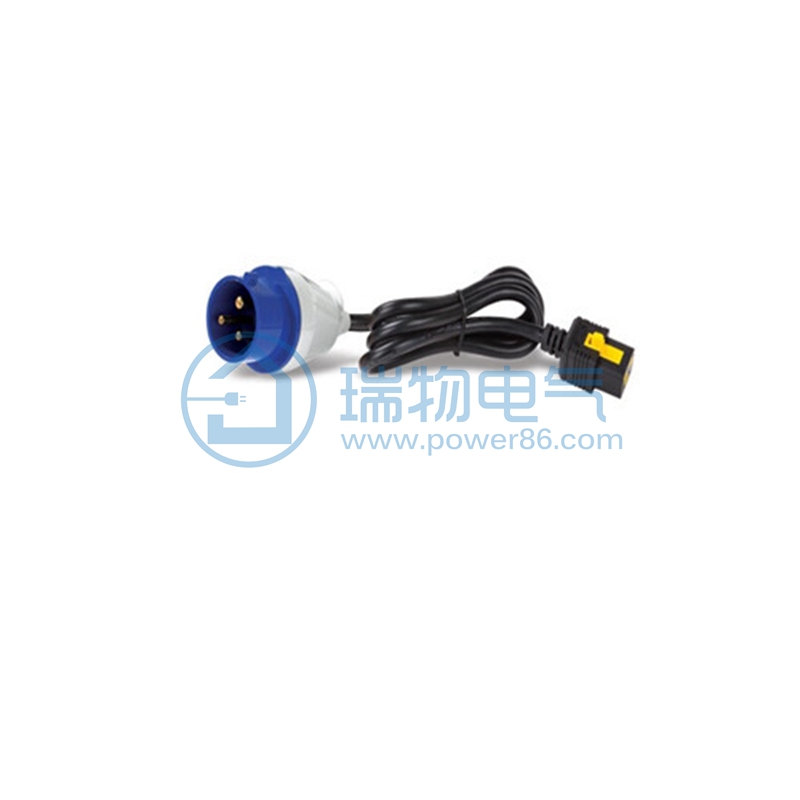

Input terminal type	IEC 309 16A 2P+E
Input line length	3 meters
Number of power cords	1
Acceptable Input Voltage	220-240 VAC
Maximum line current per phase	16A
Maximum input current	16A
Physical indicators
Net weight	3.23 KG
High	988.00 mm
Wide	56.00 mm
deep	46.00 mm
Transport weight	5.50KG
Transportation height	1125.00 mm
Transport width	165.00 mm
Transport length	114.00 mm
Colour	Black
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
