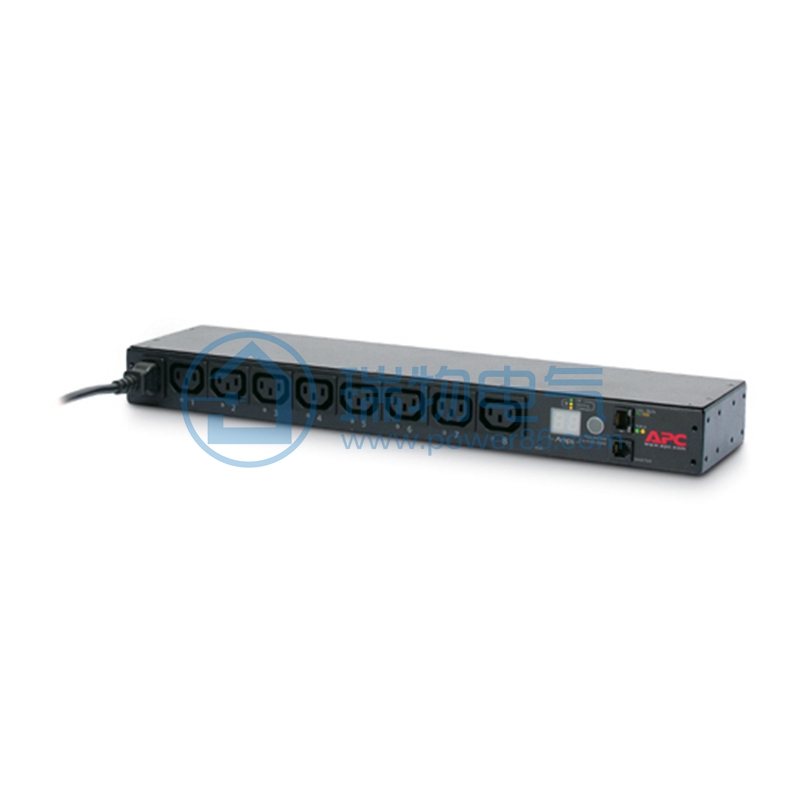

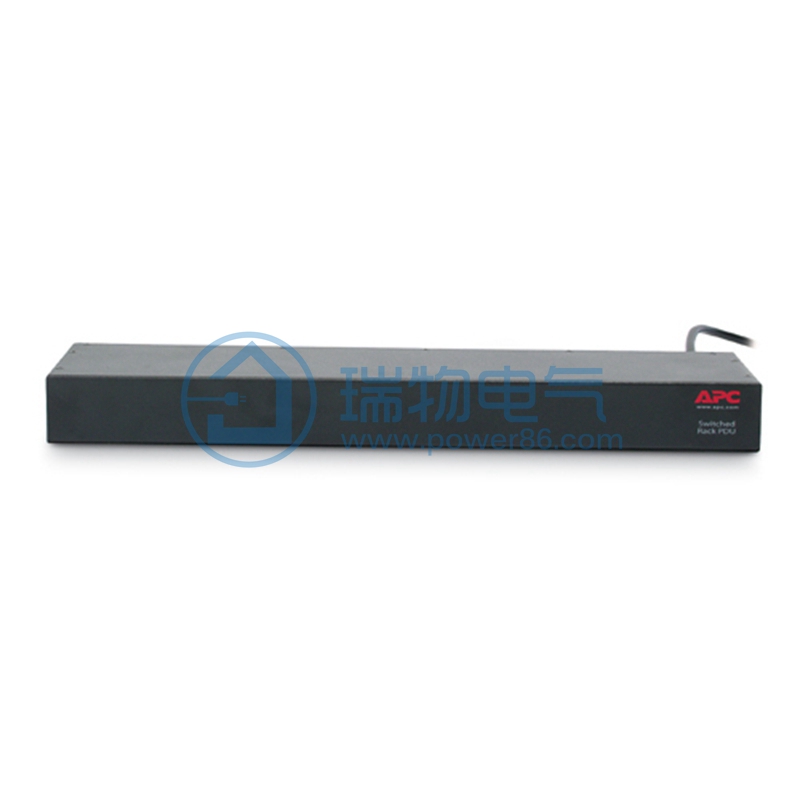

AP7920

Name: AP7920
SKU: 2
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	208V, 230V
Maximum total load current	10A
Different voltages and corresponding amperages	10A @ 230V, 12A @ 208V
Output Connections	(8) IEC 320 C13
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Adjusted Reduced Input Current (North America)	12A
Input terminal type	IEC-320 C14
Input line length	1.98 meters
Number of power cords	1
Acceptable Input Voltage	200-240 VAC
Maximum input current	15A
Load capacity	2300 VA
Physical indicators
Net weight	2.27 KG
High	44.00 mm
Wide	445.00 mm
deep	108.00 mm
Transport weight	3.45 KG
Transportation height	70.00 mm
Transport width	470.00 mm
Transport length	343.00 mm
Colour	Black
Environment
Operating environment	0-45°C
Operating relative humidity	0-95%
Operating height	0-3000 m
Storage temperature	0-25 - 65°C
Storage Relative Humidity	0-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL as listed, VDE, VCCI
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Other Environmental Compliance	China RoHS

Data not yet provided
