AP8953

Name: AP8953
SKU: 6
Availability: InStock

Price on request

Ratings

View on mobile

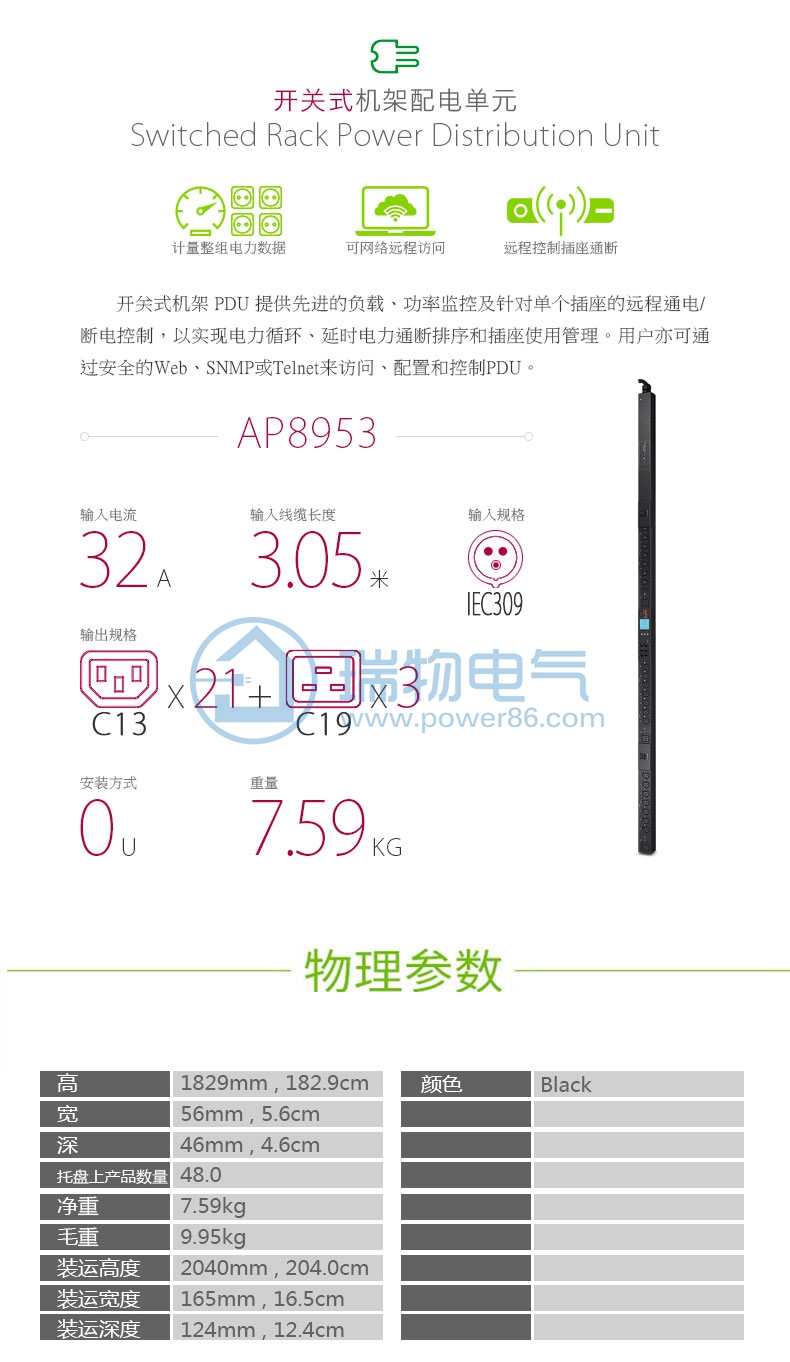

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1908/6/6_c0.jpg

Detailed specifications:

Output
Maximum total load current	32A
Output Connections	(21) IEC 320 C13；(3)IEC 320 C19
Overload protection	Yes
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz

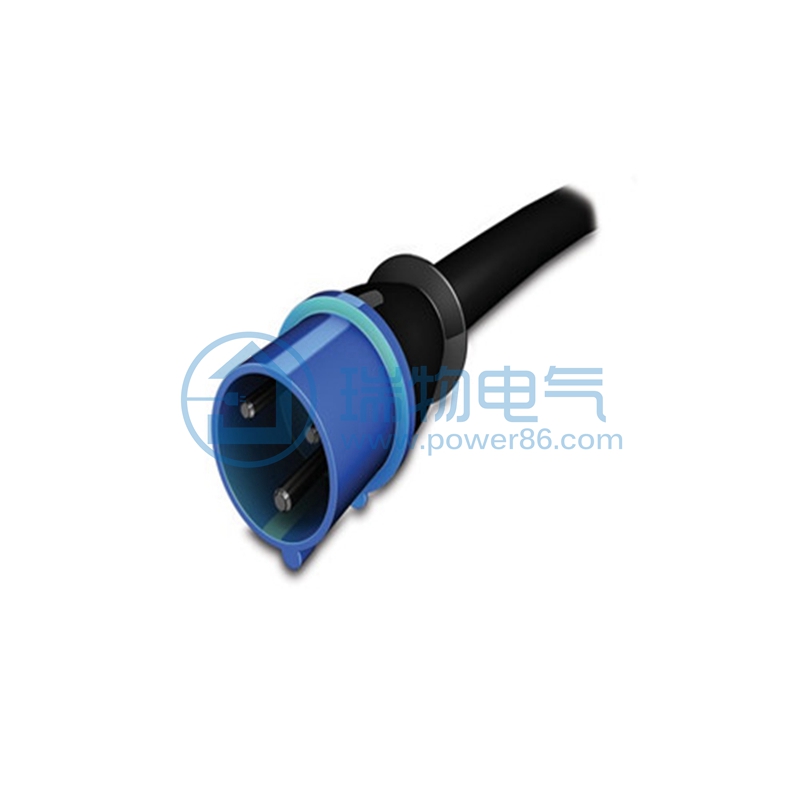

Input terminal type	IEC 309 32A 2P+E
Input line length	3.05 m
Number of power cords	1
Acceptable Input Voltage	220-240 VAC
Maximum line current per phase	32A
Maximum input current	32A
Physical indicators
Net weight	7.59 KG
High	1829.00 mm
Wide	56.00 mm
deep	46.00 mm
Transport weight	9.95KG
Transportation height	2040.00 mm
Transport width	165.00 mm
Transport length	124.00 mm
Colour	Black
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	EN 55022, Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
