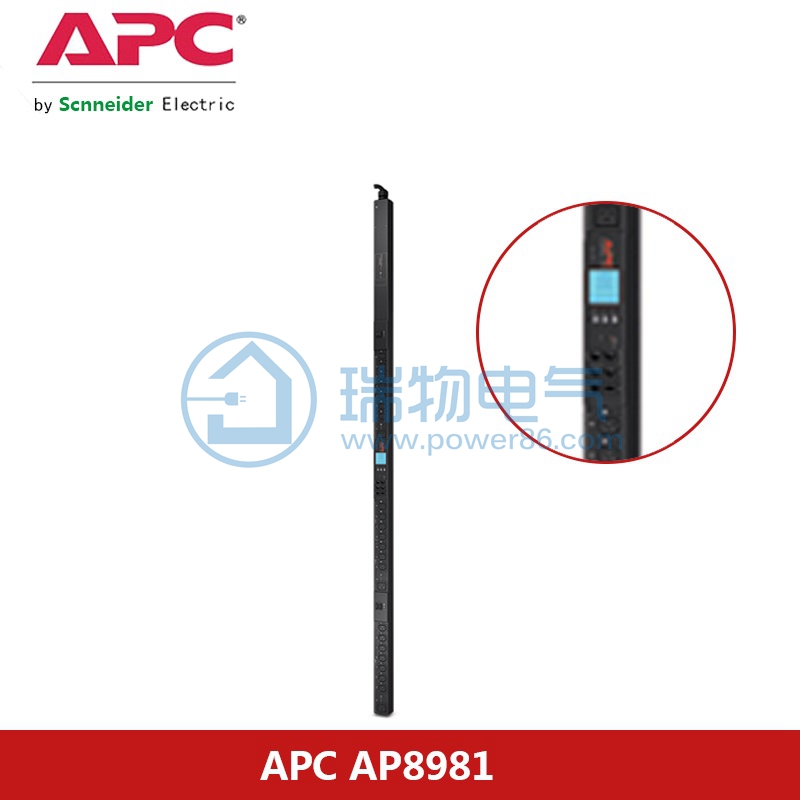

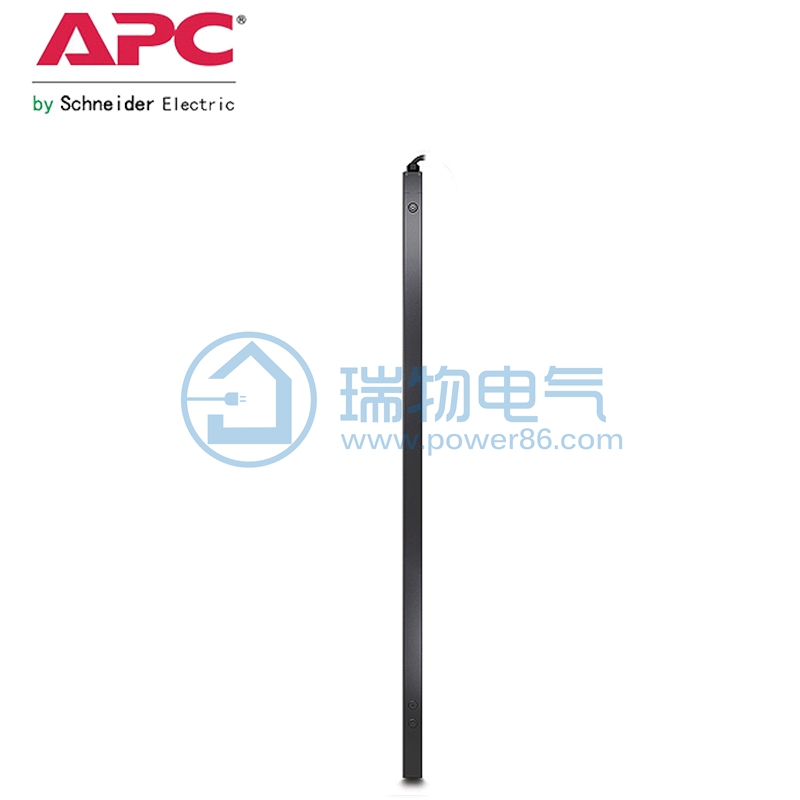

AP8981

Name: AP8981
SKU: 11
Availability: InStock

Price on request

Ratings

View on mobile

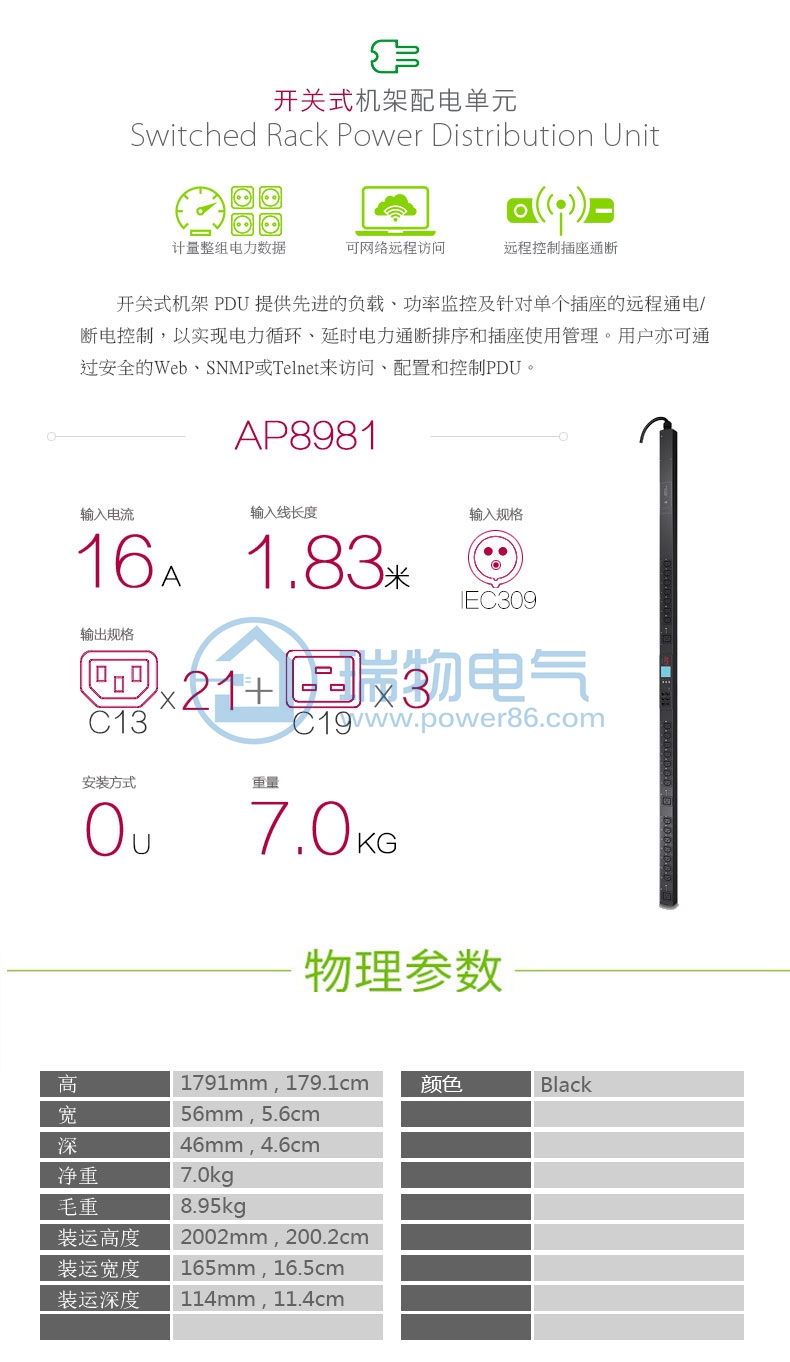

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1908/11/11_c0.jpg

Detailed specifications:

Output
Rated output voltage	208V，230V
Maximum total load current	16A
Output Connections	(21) IEC 320 C13；(3)IEC 320 C19
Overload protection	No
Input
Rated input voltage	400V 3PH
Input frequency	50/60 Hz
Adjusted Reduced Input Current (North America)	16A
Input terminal type	IEC 309 16A 3P+N+PE；IEC 309 20A 3P+N+E
Input line length	1.83 meters
Number of power cords	1
Maximum line current per phase	16A
Maximum input current	16A
Physical indicators
Net weight	7.00 KG
High	1791.00 mm
Wide	56.00 mm
deep	46.00 mm
Transport weight	8.59KG
Transportation height	2002.00 mm
Transport width	165.00 mm
Transport length	114.00 mm
Colour	Black
Quantity of products on each transport pallet	48.00
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
