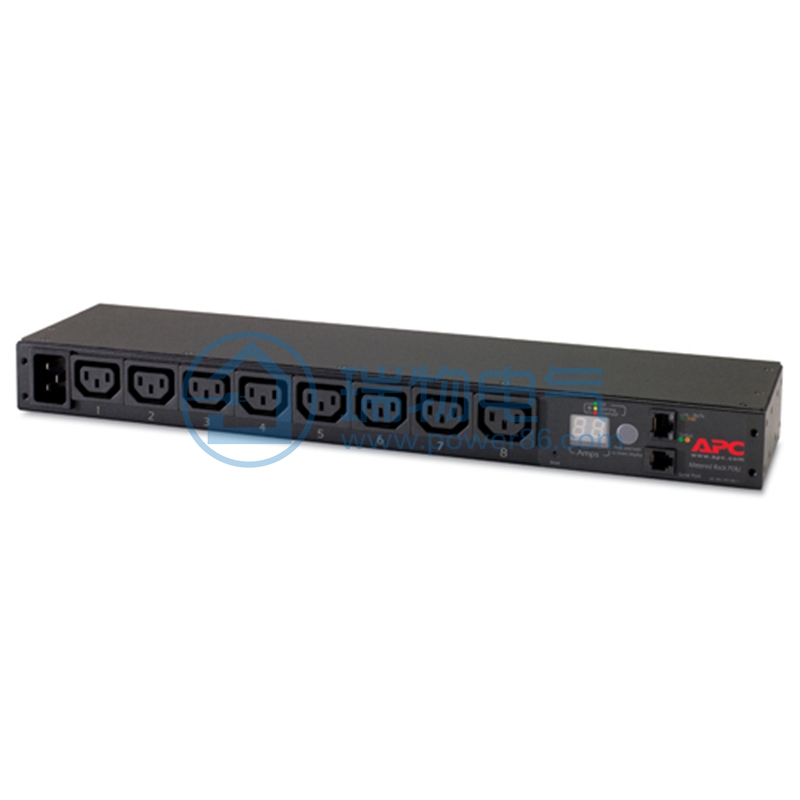

AP7821

Name: AP7821
SKU: 13
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	208V，230V
Maximum total load current	20A
Output Connections	(8) IEC 320 C13
Overload protection	No
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Adjusted Reduced Input Current (North America)	16A
Input terminal type	IEC-320 C20
Input line length	2.5 m
Maximum input current	20A
Physical indicators
Net weight	1.74KG
High	44.00 mm
Wide	444.00 mm
deep	102.00 mm
Transport weight	2.92KG
Transportation height	64.00 mm
Transport width	470.00 mm
Transport length	337.00 mm
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, C- tick, CE, CSA, FCC Part 15 Class A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to
Other Environmental Compliance	China RoHS

Data not yet provided
