AP8853

Name: AP8853
SKU: 16
Availability: InStock

Price on request

Ratings

View on mobile

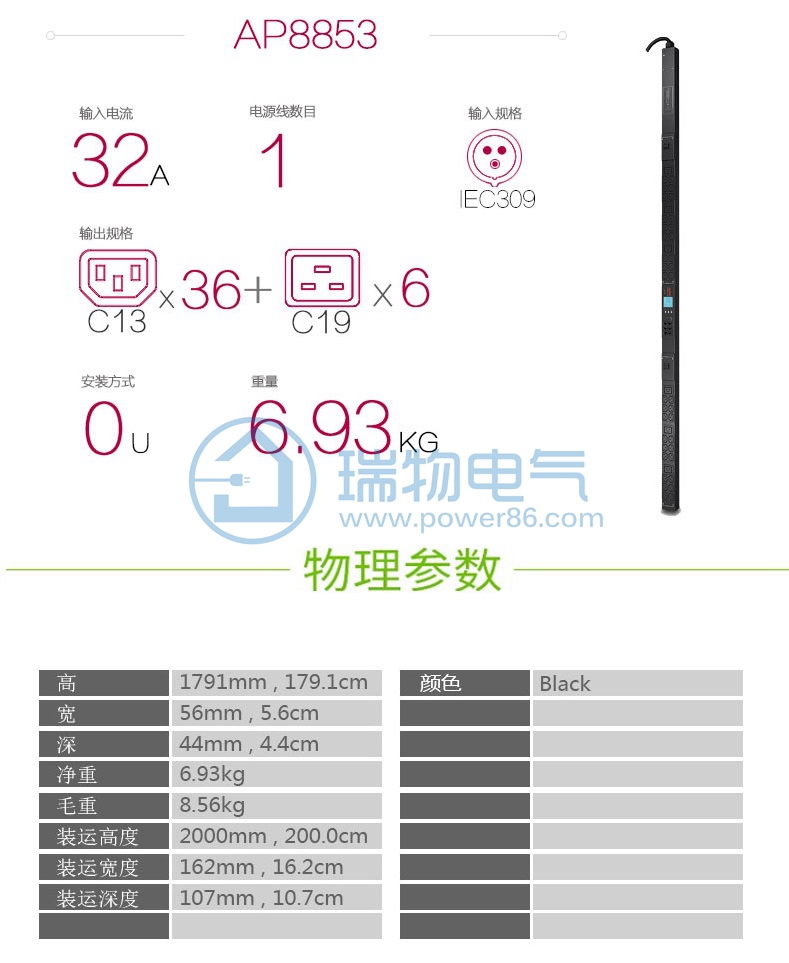

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1911/16/16_c0.jpg

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	32A
Output Connections	(36) IEC 320 C13；(6) IEC 320 C19
Overload protection	Yes
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Input terminal type	IEC 309 32A 2P+E
Input line length	3 meters
Number of power cords	1
Acceptable Input Voltage	220-240 VAC
Maximum line current per phase	32A
Maximum input current	32A
Physical indicators
Net weight	6.93KG
High	1791.00 mm
Wide	56.00 mm
deep	44.00 mm
Transport weight	8.56KG
Transportation height	2000.00 mm
Transport width	162.00 mm
Transport length	107.00 mm
Colour	Black
Quantity of products on each transport pallet	48.00
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	IEC 60950, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
