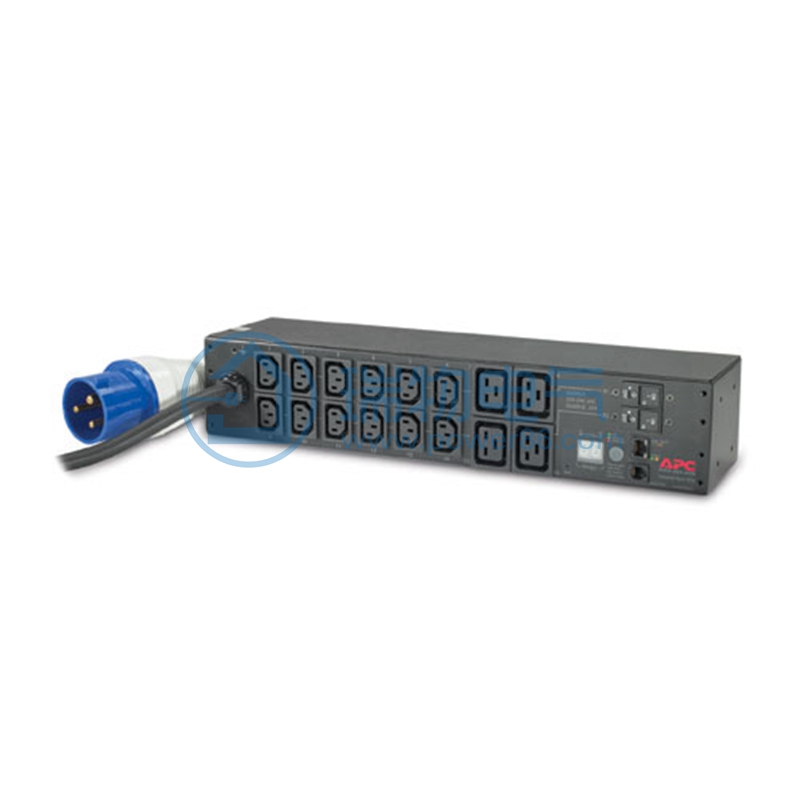

AP7822

Name: AP7822
SKU: 14
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	200V
Maximum total load current	32A
Output Connections	(12) IEC 320 C13；IEC 320 C19
Overload protection	Yes
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Input terminal type	IEC 309 32A 2P+E
Input line length	3.66 meters
Number of power cords	1
Maximum input current	32A
Physical indicators
Net weight	3.36KG
High	88.00 mm
Wide	444.00 mm
deep	112.00 mm
Transport weight	5.42KG
Transportation height	140.00 mm
Transport width	508.00 mm
Transport length	368.00 mm
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	C- tick, CE, FCC Part 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
