AP8881

Name: AP8881
SKU: 20
Availability: InStock

Price on request

Ratings

View on mobile

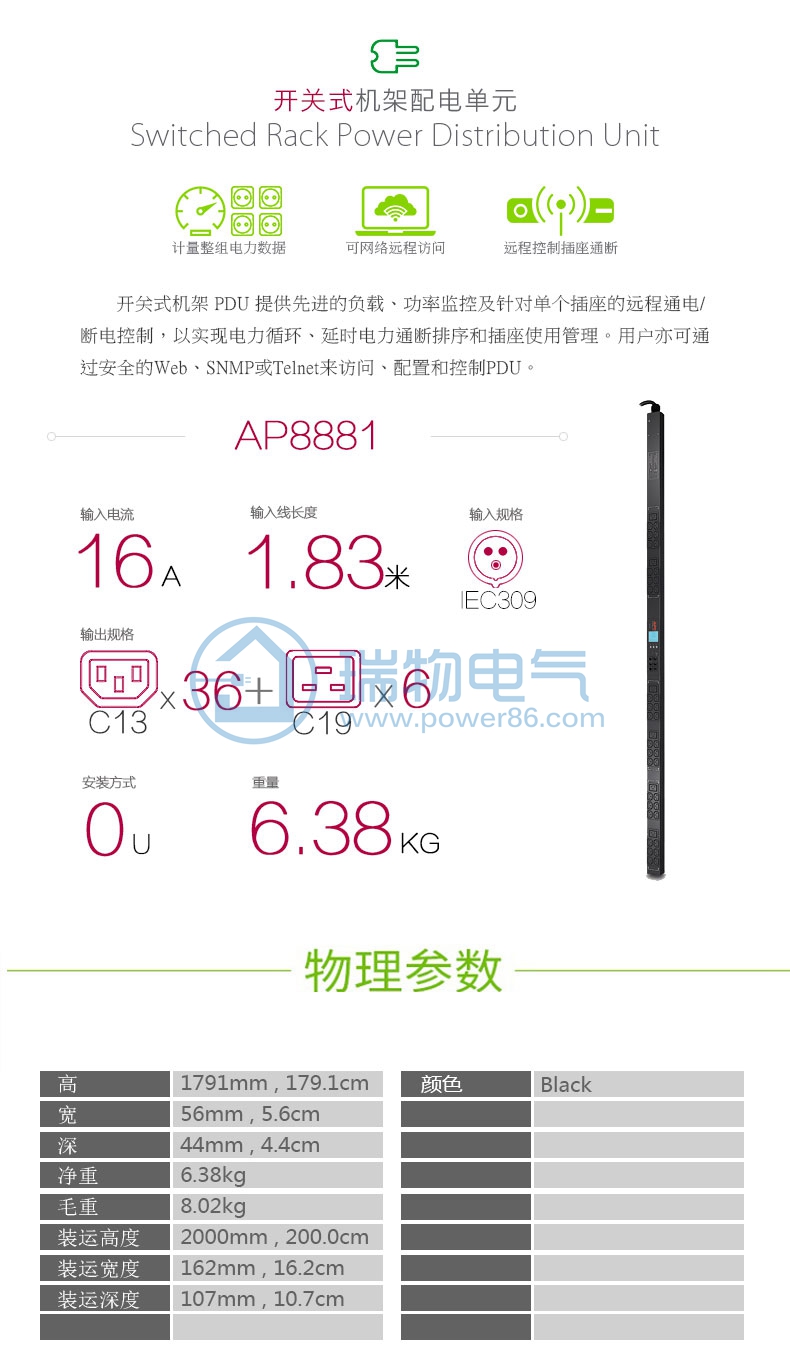

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1911/20/20_c0.jpg

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	16A
Output Connections	(36) IEC 320 C13；(6) IEC 320 C19
Overload protection	No
Input
Rated input voltage	400V 3PH
Input frequency	50/60Hz
Adjusted Reduced Input Current (North America)	16A
Input terminal type	IEC 309 16A 3P+N+PE；IEC 309 20A 3P+N+E
Input line length	1.83 meters
Maximum line current per phase	16A
Maximum input current	16A
Physical indicators
Net weight	6.38KG
High	1791.00 mm
Wide	56.00 mm
deep	44.00 mm
Transport weight	8.02KG
Transportation height	2000.00 mm
Transport width	162.00 mm
Transport length	107.00 mm
Colour	Black
Quantity of products on each transport pallet	48.00
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	CSA C22.2 No. 60950, IEC 60950, UL 60950-1, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
