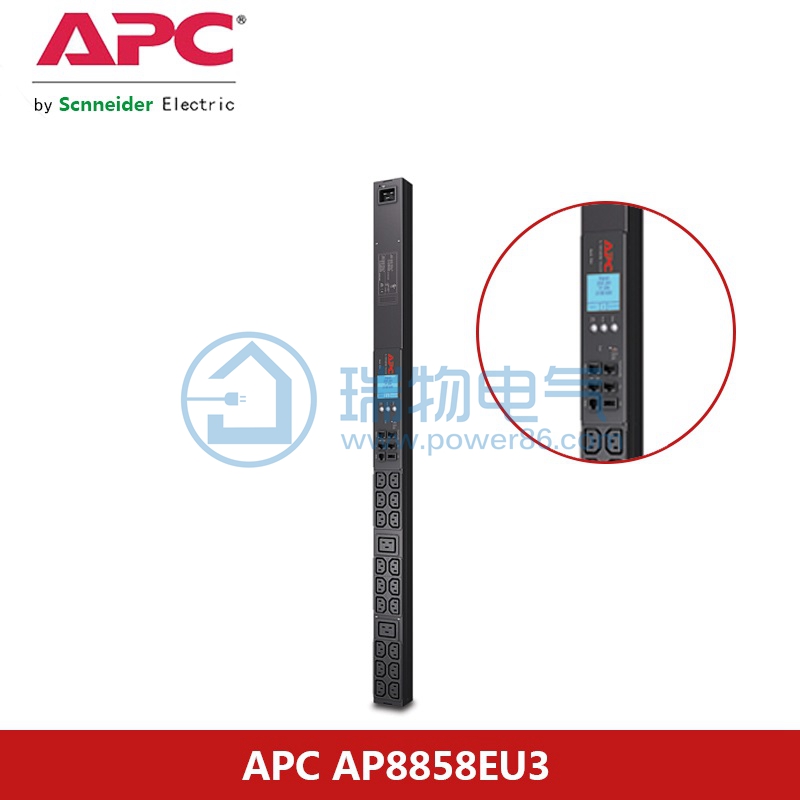

AP8858EU3

Name: AP8858EU3
SKU: 18
Availability: InStock

Price on request

Ratings

View on mobile

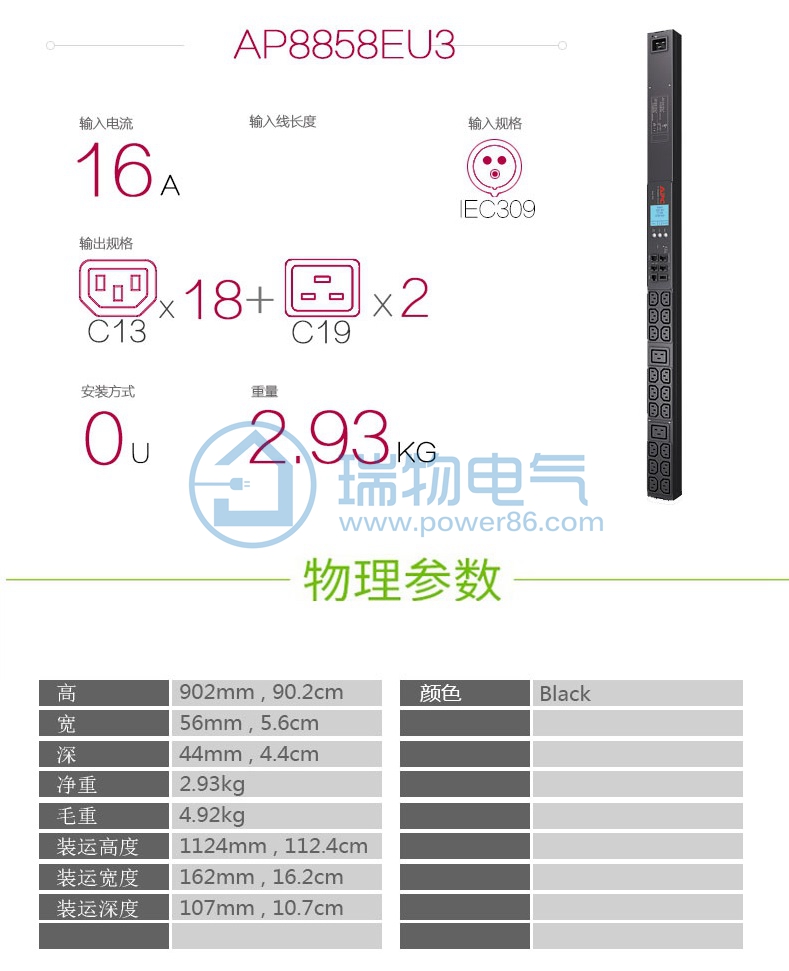

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1911/18/18_c0.jpg

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	16A
Output Connections	(18) IEC 320 C13；(2) IEC 320 C19
Overload protection	No
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Input terminal type	IEC 309 16A 2P+E
Input line length	3 meters
Number of power cords	1
Acceptable Input Voltage	100-240 VAC
Maximum line current per phase	16A
Maximum input current	16A
Physical indicators
Net weight	2.93KG
High	902.00 mm
Wide	56.00 mm
deep	44.00 mm
Transport weight	4.92KG
Transportation height	1124.00 mm
Transport width	162.00 mm
Transport length	107.00 mm
Colour	Black
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
PEP	Available in Documentation tab
EOLI	Available in Documentation tab
Battery Directive	Conform to

Data not yet provided
