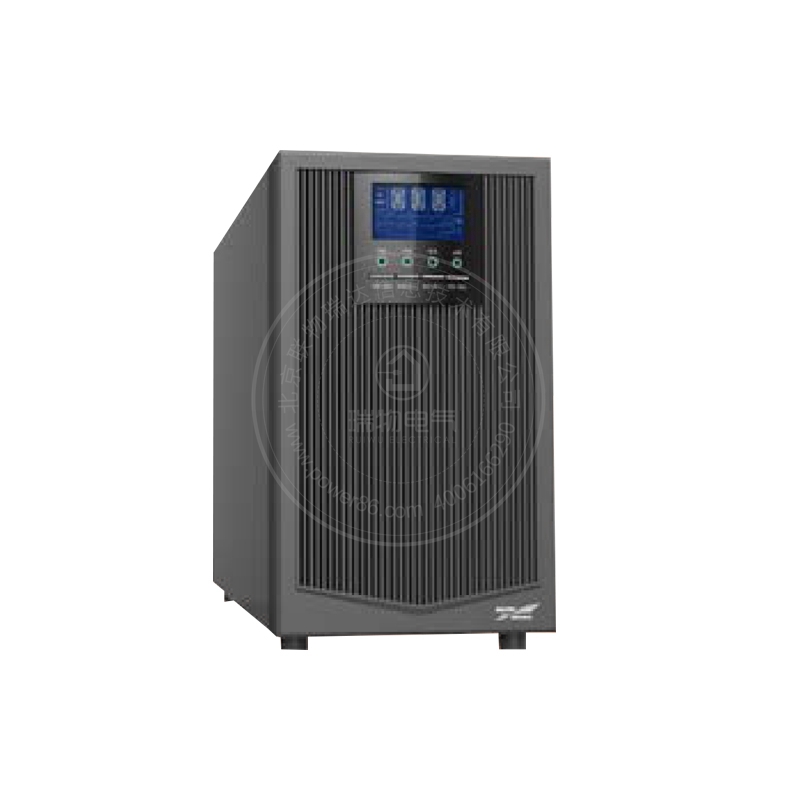

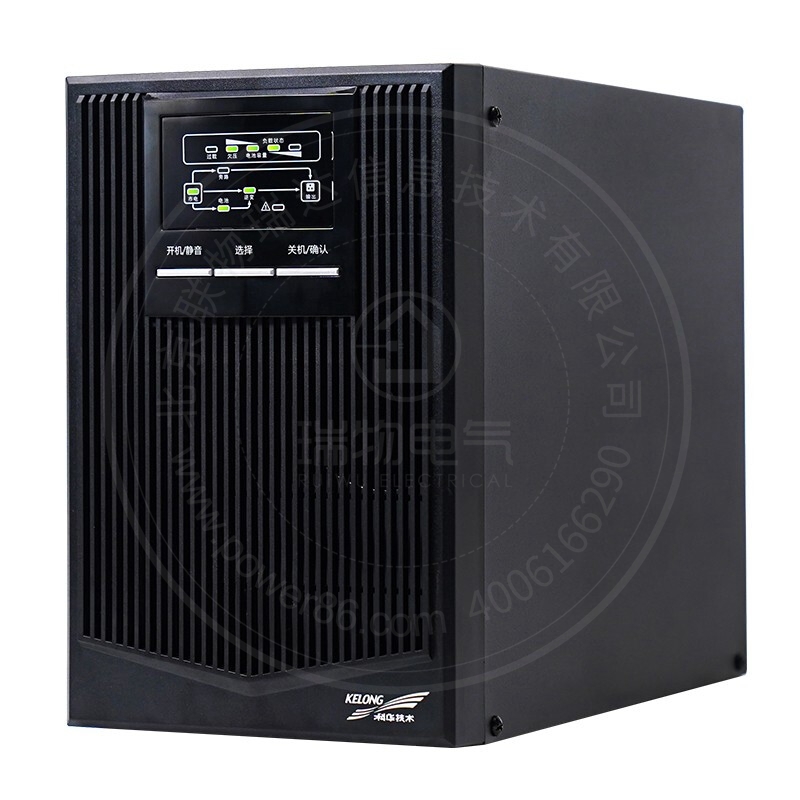

Kehua YTR1102

Name: Kehua YTR1102
SKU: 5450
Price: 1833 CNY
Availability: InStock

Single-in and single-out 2K standard machine includes tax in most areas

¥1,833.00

Ratings

View on mobile

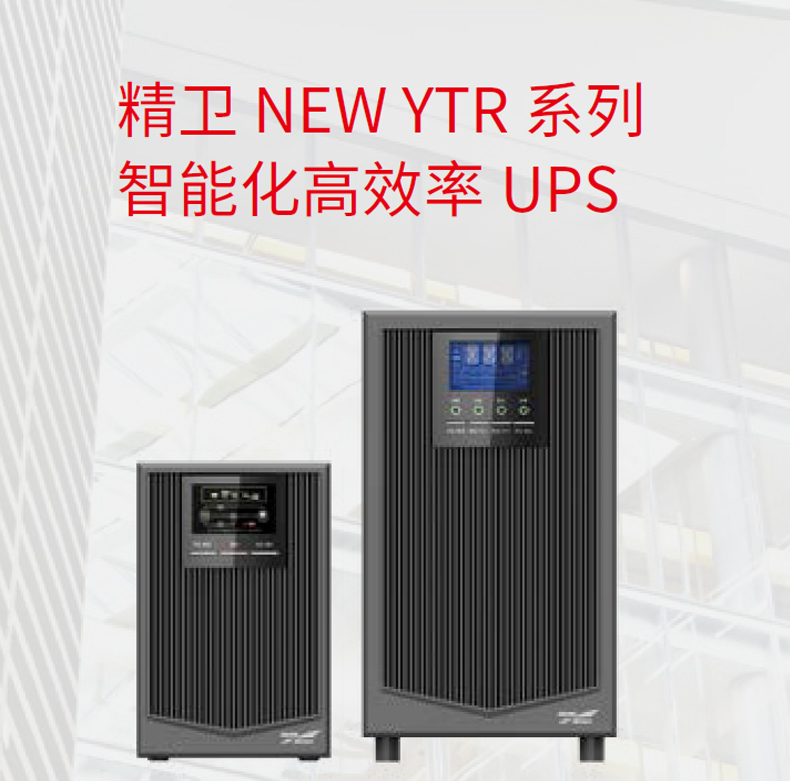

Product introduction https://img.rwyun.com/power86/rs1/ups/743/2586/5450/5450_c0.jpg

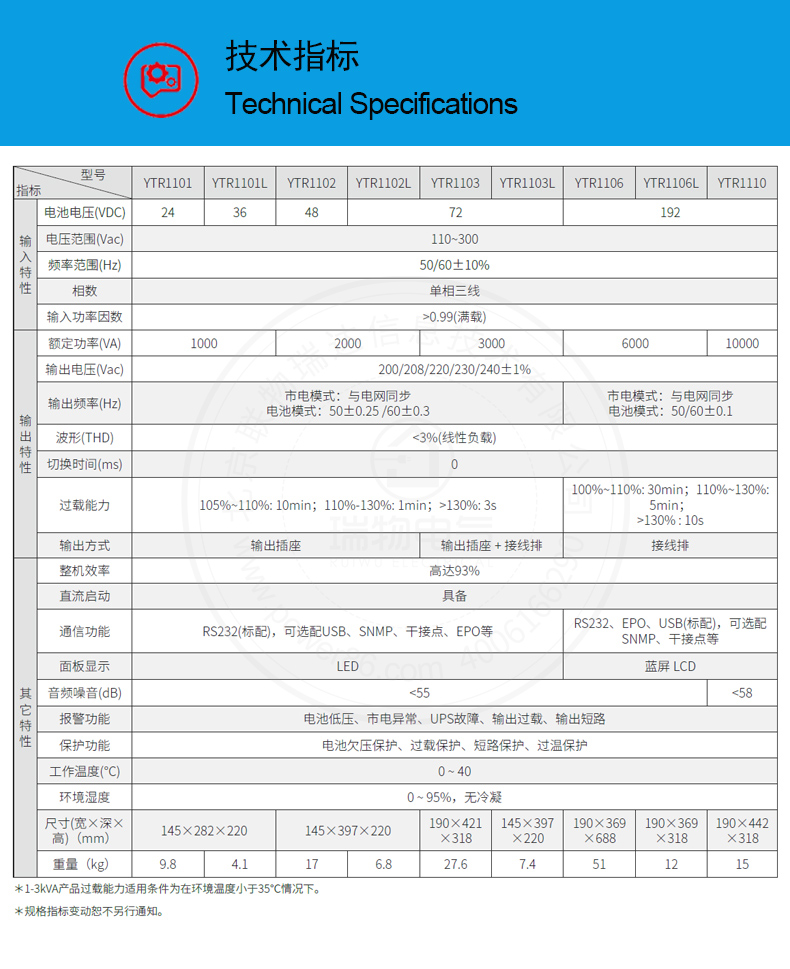

Detailed specifications:

Rated capacity	2000VA/1600W
Model	YTR1102

Rated power （VA）	2000
Output voltage （Vac）	200/208/220/230/240±1%
Output frequency （Hz）	Utility mode: Synchronized with the grid Battery mode: 50±0.25/60±0.3Hz
Waveform (THD)	<3% (linear load)
Switching time (ms)	0
Overload capacity	105%~110%：10min;110%~130%:1min;＞130%：3S
Output method	Output socket

Overall efficiency	Up to 93%
DC start	Possess

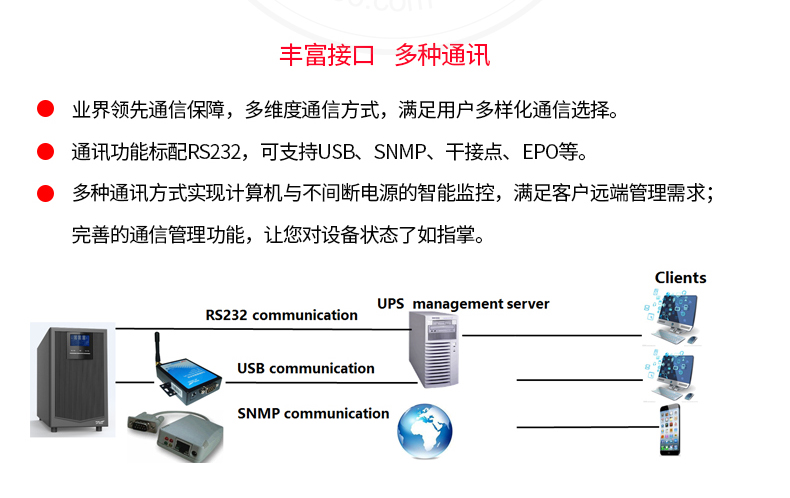

Communication function	RS232 (standard), optional USB, SNMP, dry contact, EPO, etc.
Panel display	LED
Audio Noise (dB)	＜55
Alarm function	Battery low voltage, abnormal mains supply, UPS fault, output overload, output short circuit
Protection function	Battery undervoltage protection, overload protection, short circuit protection, over temperature protection
Operating temperature （℃）	0~40
Environmental humidity	0 ~ 90%, no condensation
Size (width * depth * height)(mm)	145397220
Weight (kg)	17

2KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	40A-2P
External battery cable size	4mm²
