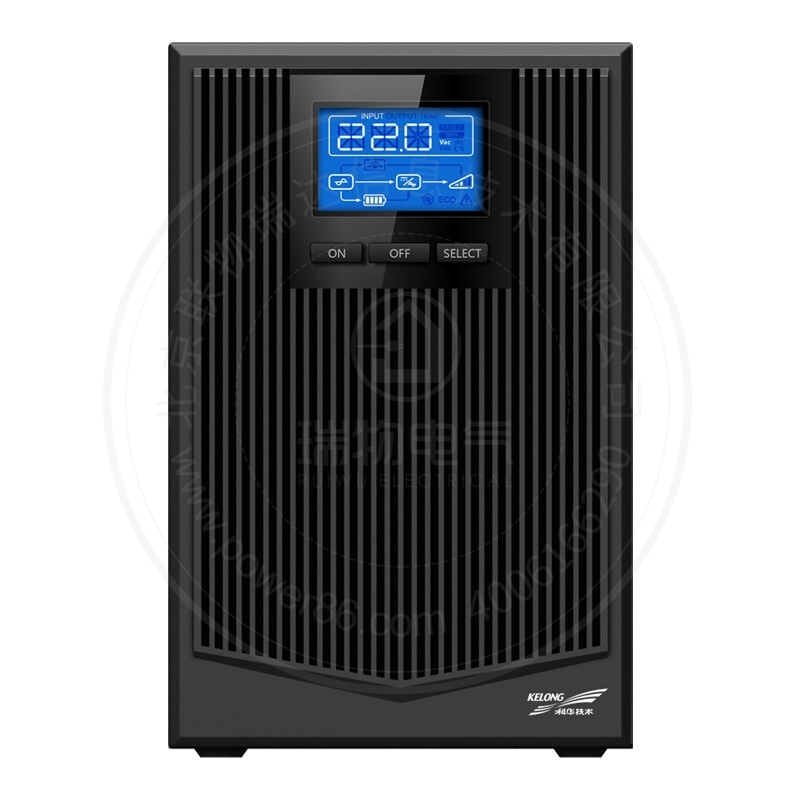

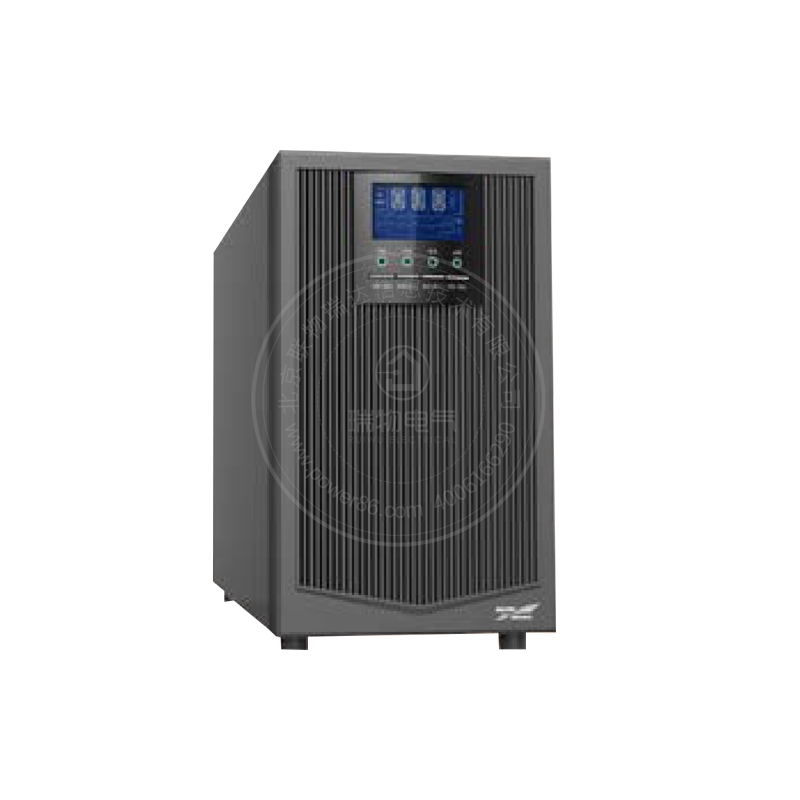

Kehua YTR1106L

Name: Kehua YTR1106L
SKU: 5455
Price: 3462 CNY
Availability: InStock

Single-in, single-out 6K online high-frequency pilot machine includes tax in most areas

¥3,462.00

Ratings

UPS runtime configurations

View on mobile

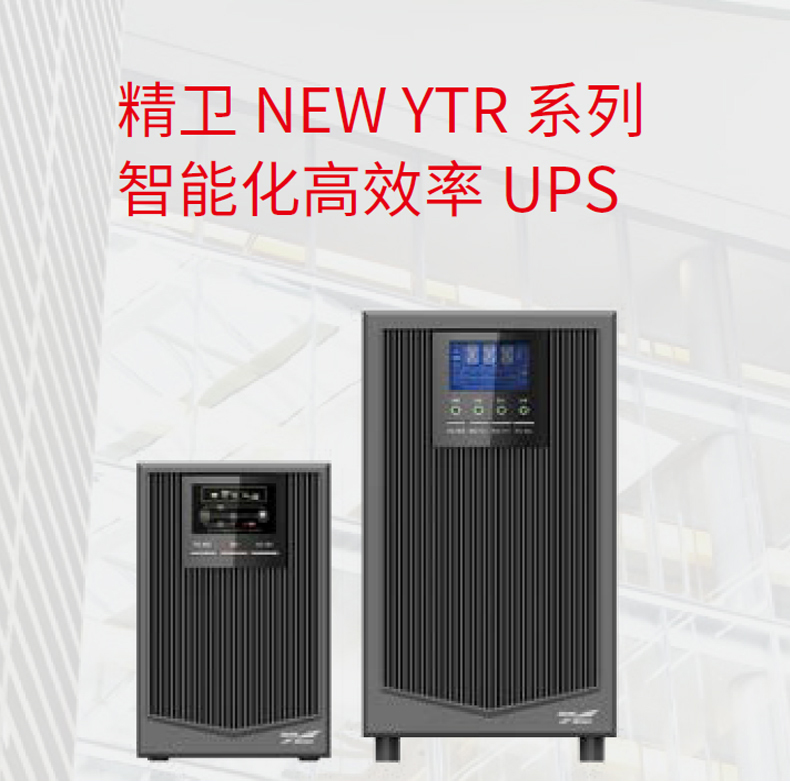

Product introduction https://img.rwyun.com/power86/rs1/ups/743/2586/5455/5455_c0.jpg

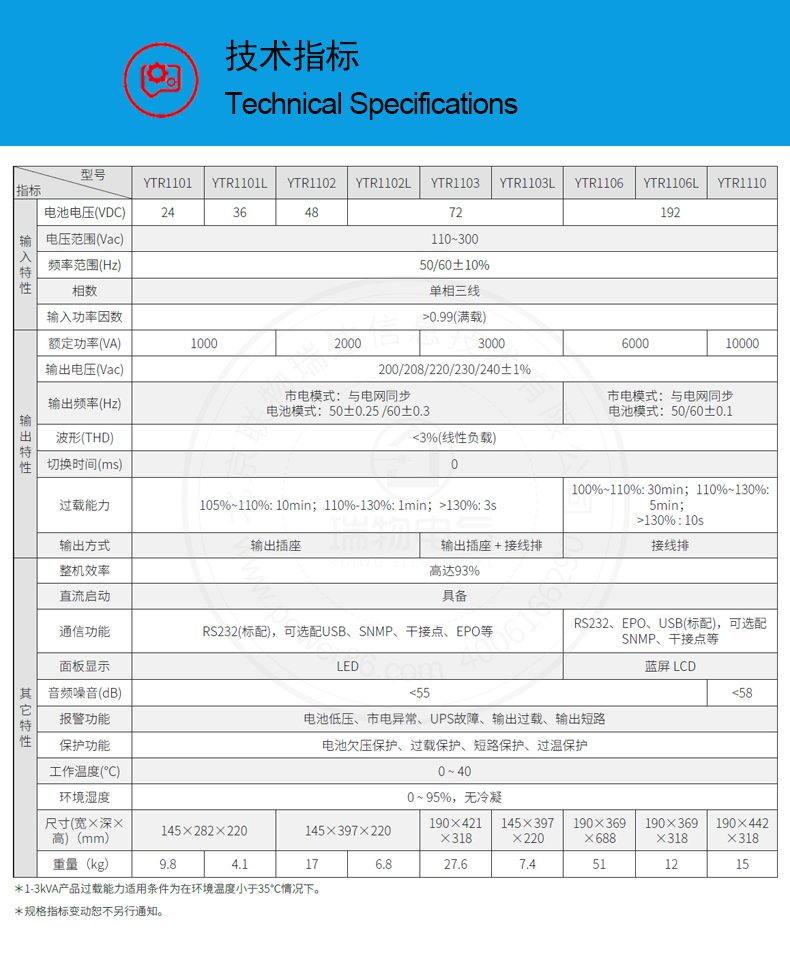

Detailed specifications:

Rated capacity	6KA/4.8KW
Model	YTR1106L

Rated power （VA）	6000
Output voltage （Vac）	200/208/220/230/240±1%
Output frequency （Hz）	Utility mode: Synchronized with the grid Battery mode: 50/60±0.1Hz
Waveform (THD)	<3% (linear load)
Switching time (ms)	0
Overload capacity	105%~110%：30min;110%~130%:5min;＞130%：10S
Output method	Terminal block

Overall efficiency	Up to 93%
DC start	Possess

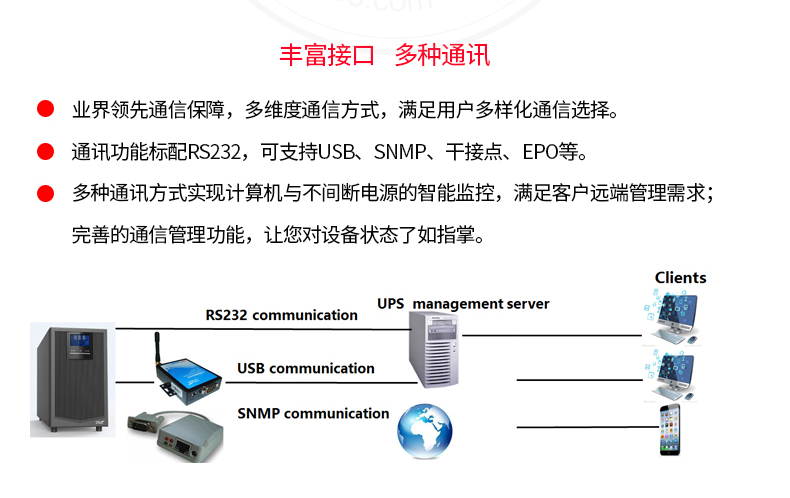

Communication function	RS232, EPO, USB (standard), optional SNMP, dry contacts, etc.
Panel display	Blue Screen LCD
Audio Noise (dB)	＜55
Alarm function	Battery low voltage, abnormal mains supply, UPS fault, output overload, output short circuit
Protection function	Battery undervoltage protection, overload protection, short circuit protection, over temperature protection
Operating temperature （℃）	0~40
Environmental humidity	0 ~ 90%, no condensation
Size (width * depth * height)(mm)	190369318
Weight (kg)	12

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
