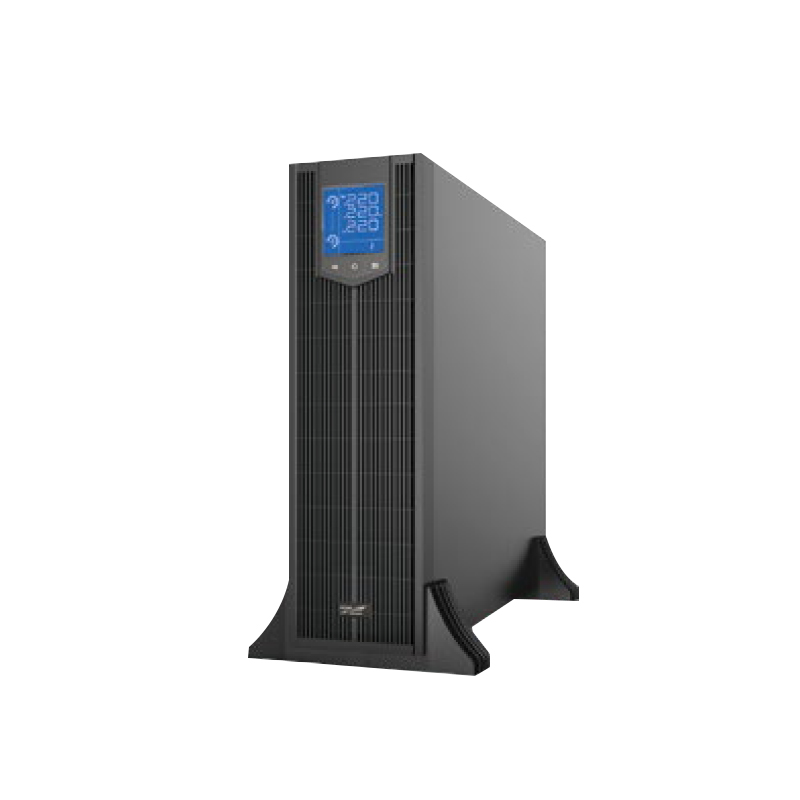

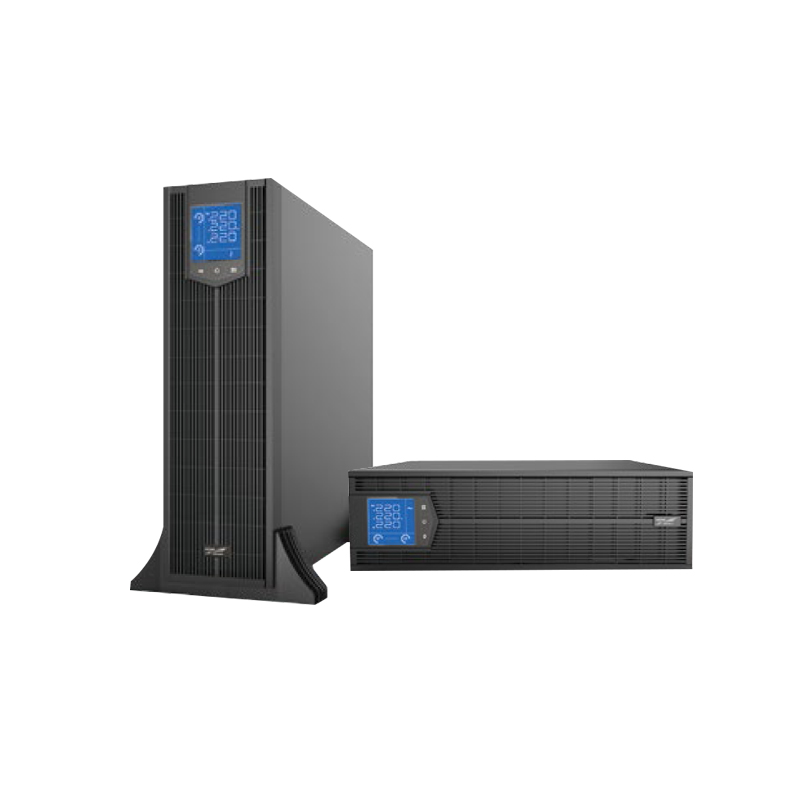

Kehua YTR-20-J

Name: Kehua YTR-20-J
SKU: 5492
Price: 12369 CNY
Availability: InStock

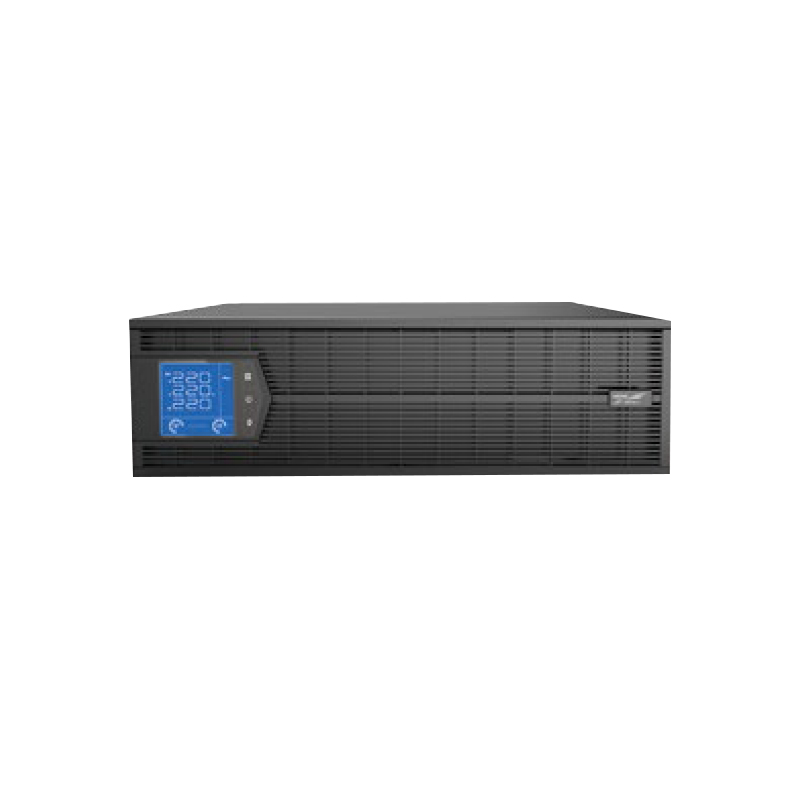

Online rack type three in three out 20kva/20kw long machine postage in most areas

¥12,369.00List price ¥20616.00

Ratings

UPS runtime configurations

View on mobile

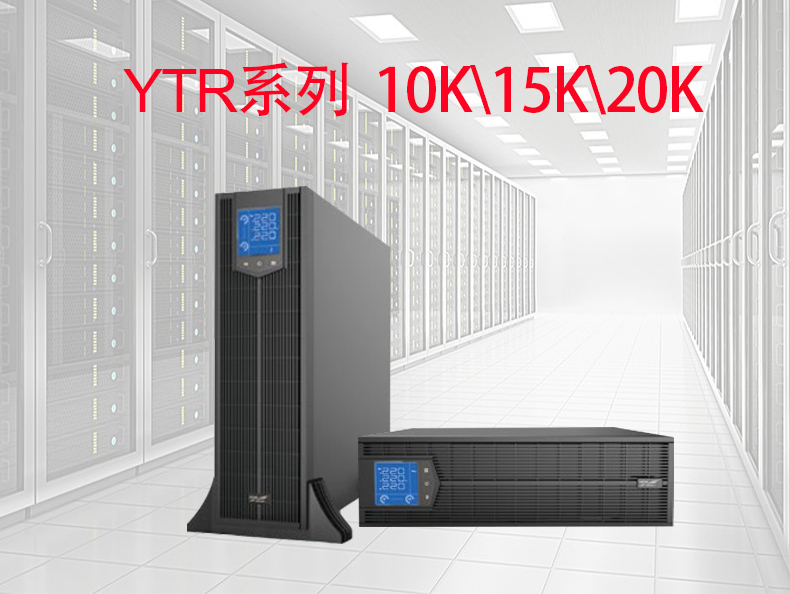

Product introduction https://img.rwyun.com/power86/rs1/ups/743/2590/5492/5492_c0.jpg

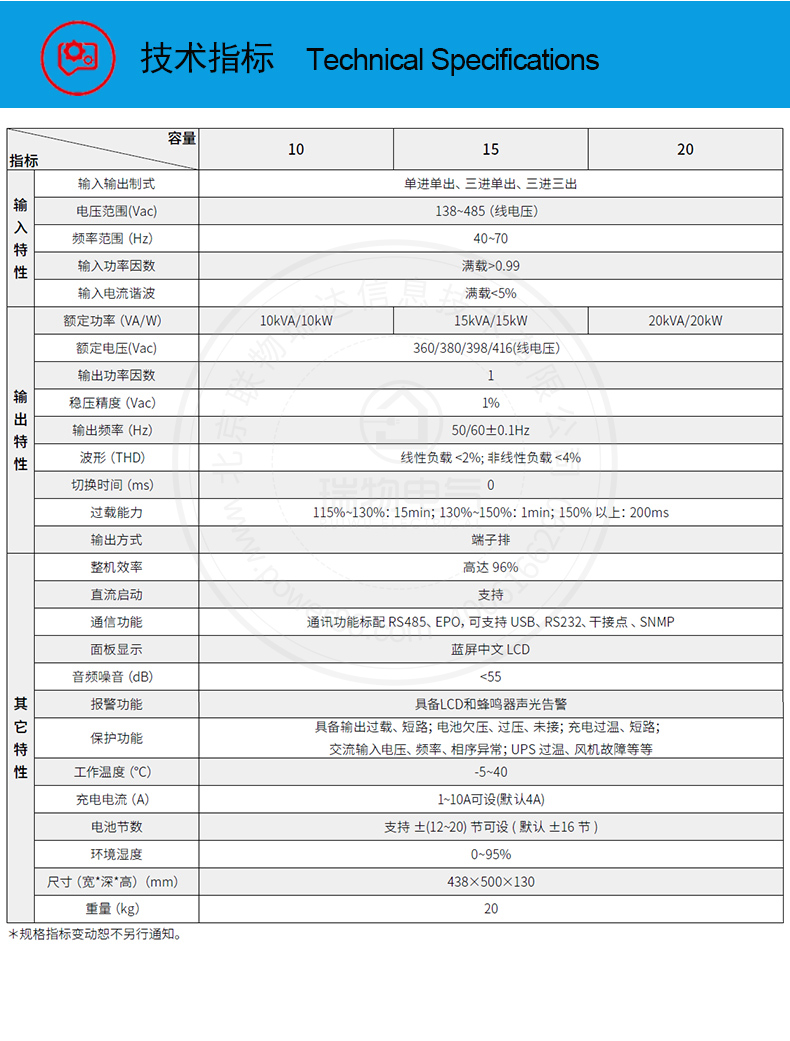

Detailed specifications:

Rated capacity	20KVA/20KW
Model	TR3320-J

input and output system	Single in and single out, three in and single out, three in and three out
Voltage range (Vac)	138~485 (line voltage)
Frequency range (Hz)	40~70
Input function factor	Full load> 0.99
Input current harmonics	Full load <5%

Rated power	20KVA / 20KW
Rated voltage (Vac)	360/380/398/416 (line voltage)
output power factor	1
Voltage stabilization accuracy (Vac)	1%
Output frequency （HZ）	50/60±0.1HZ
Waveform (THD)	Linear load <2%; Non-linear load <4%
Switching time (ms)	0
Overload capacity	115~130%:15min;130~150%:1min; Over 150%: 200ms
Output method	Terminal block

Overall efficiency	Up to 96%
DC start	Support
Communication function	Communication function standard RS485, EPO, can support USB, RS232, dry contact, SNMP
Panel display	Blue Screen Chinese LCD
Audio Noise (dB)	＜55
Alarm function	Acousto-optic alarm with LCD and buzzer
Protection function	With output overload, short circuit; Battery undervoltage, overvoltage, missed; Charging over temperature, short circuit; Abnormal AC input voltage, frequency and phase sequence; UPS over temperature, fan failure, etc.
Operating temperature （℃）	-5~40
Charging current （A）	1 ~ 10A can be set (default 4A)
Number of battery cells	Supports ±(12–20) cells, configurable (default ±16 cells)
Environmental humidity	0~95%
Size (width * depth * height)(mm)	438500130
Weight （kg）	20

20KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²

20KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²
