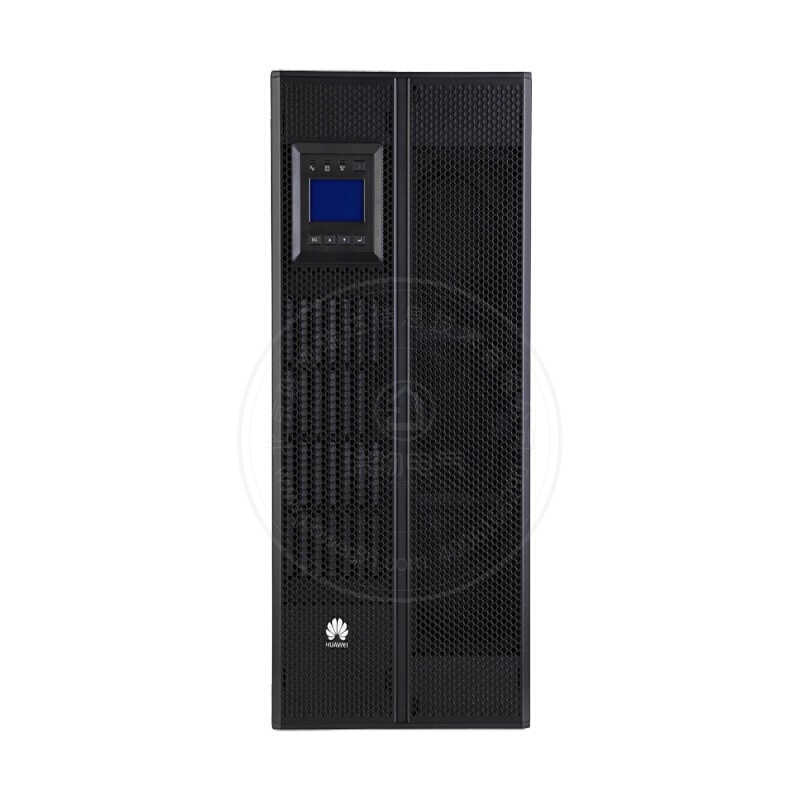

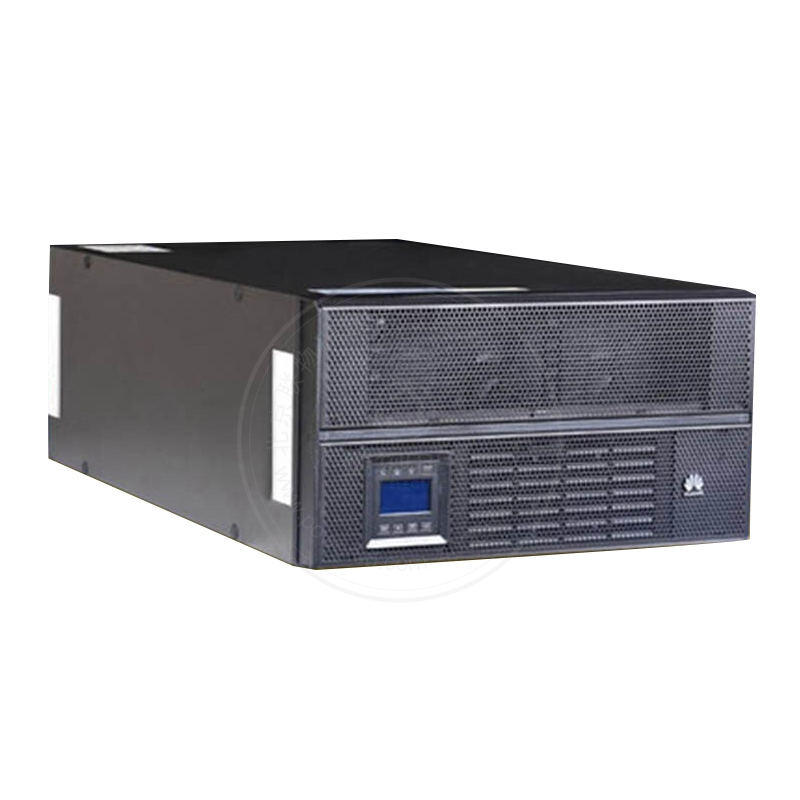

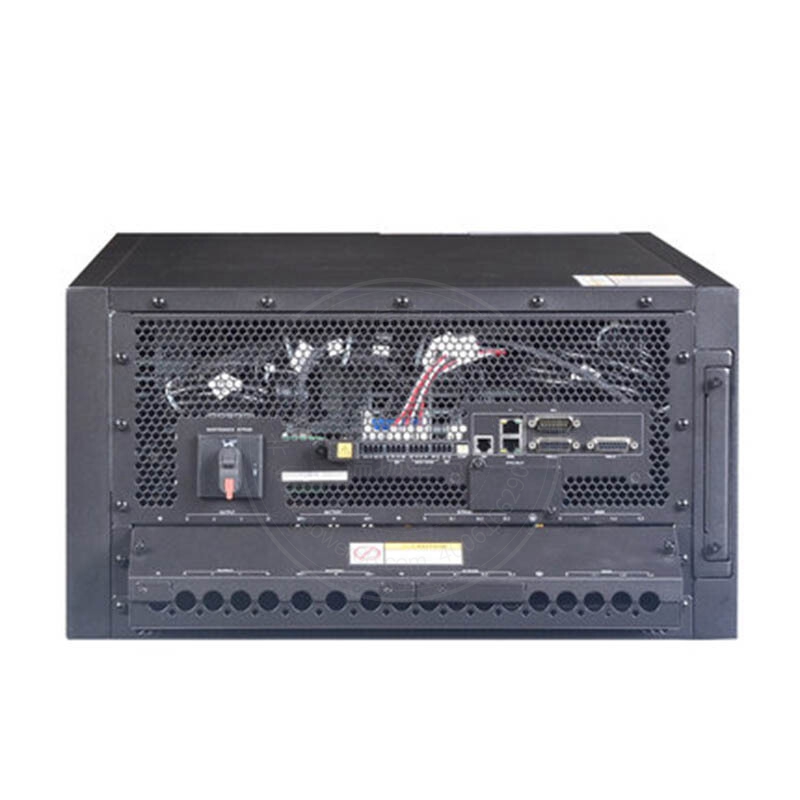

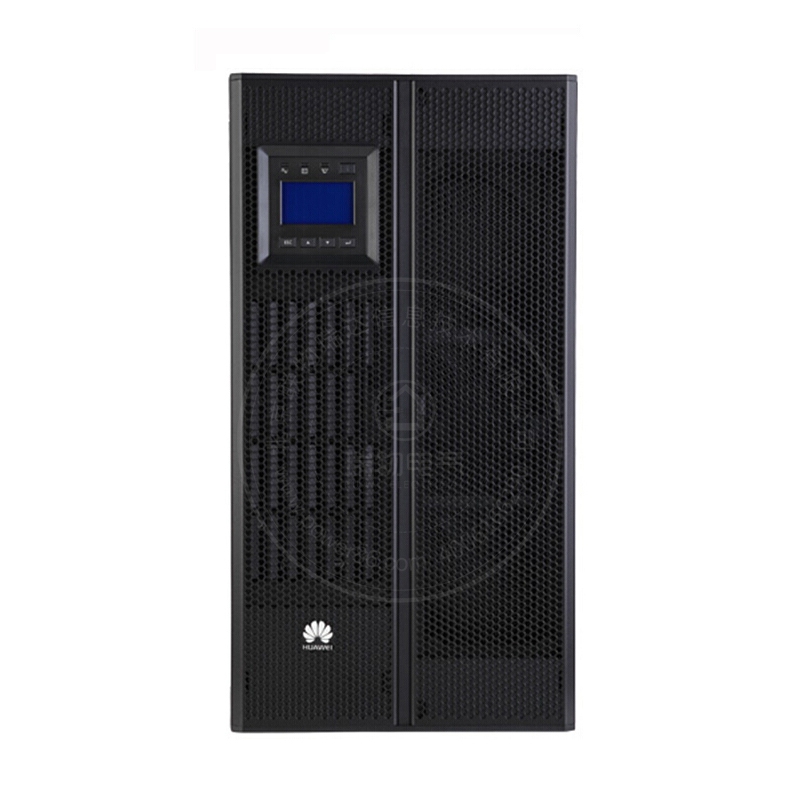

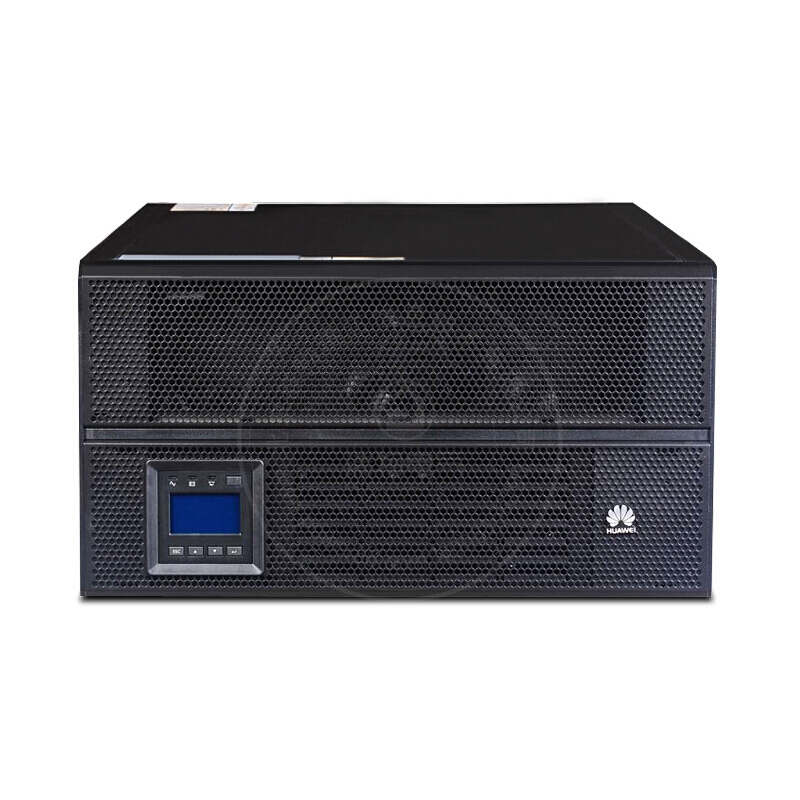

HuaweiUPS5000-A-30KTTL

On-line Huawei UPS power supply 30KVA load 30KW requires external battery

Price on request

Ratings

UPS runtime configurations

View on mobile

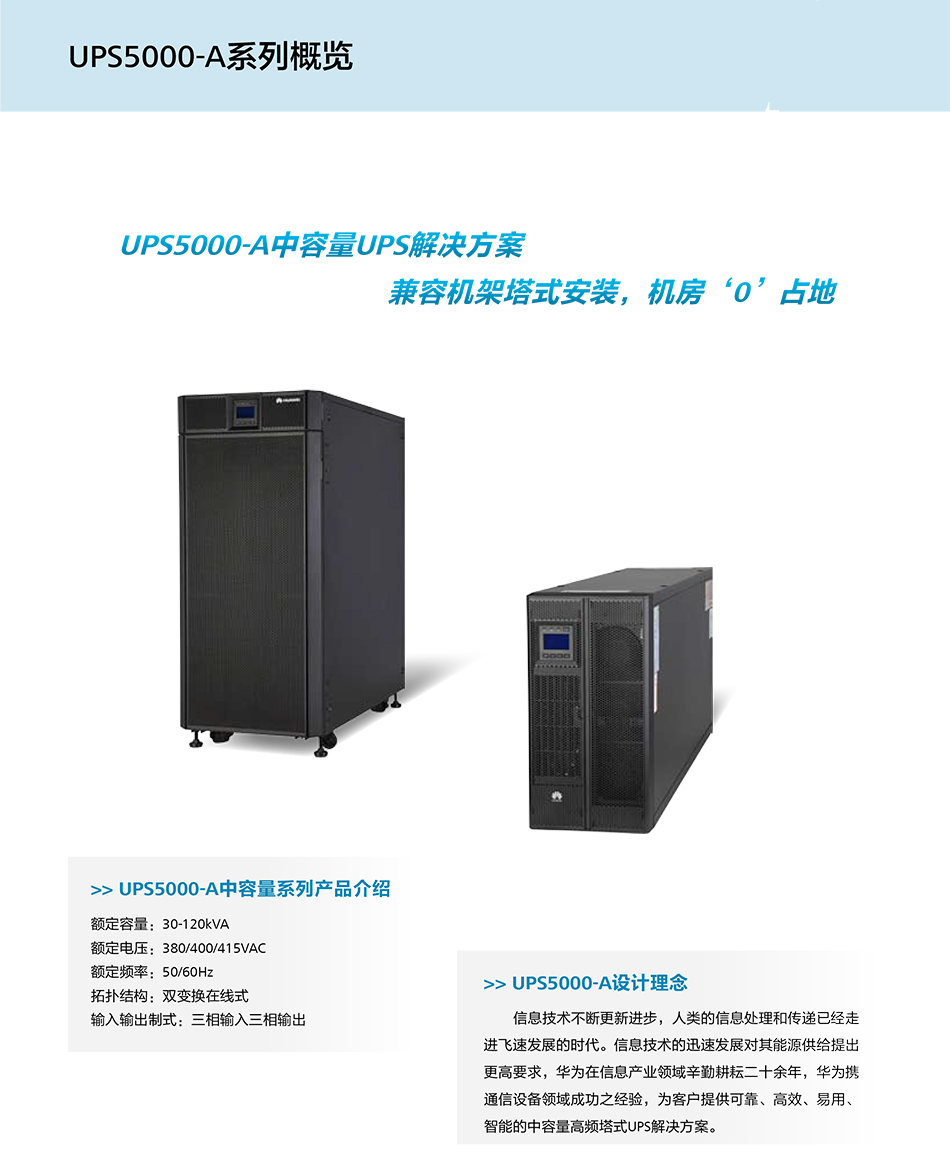

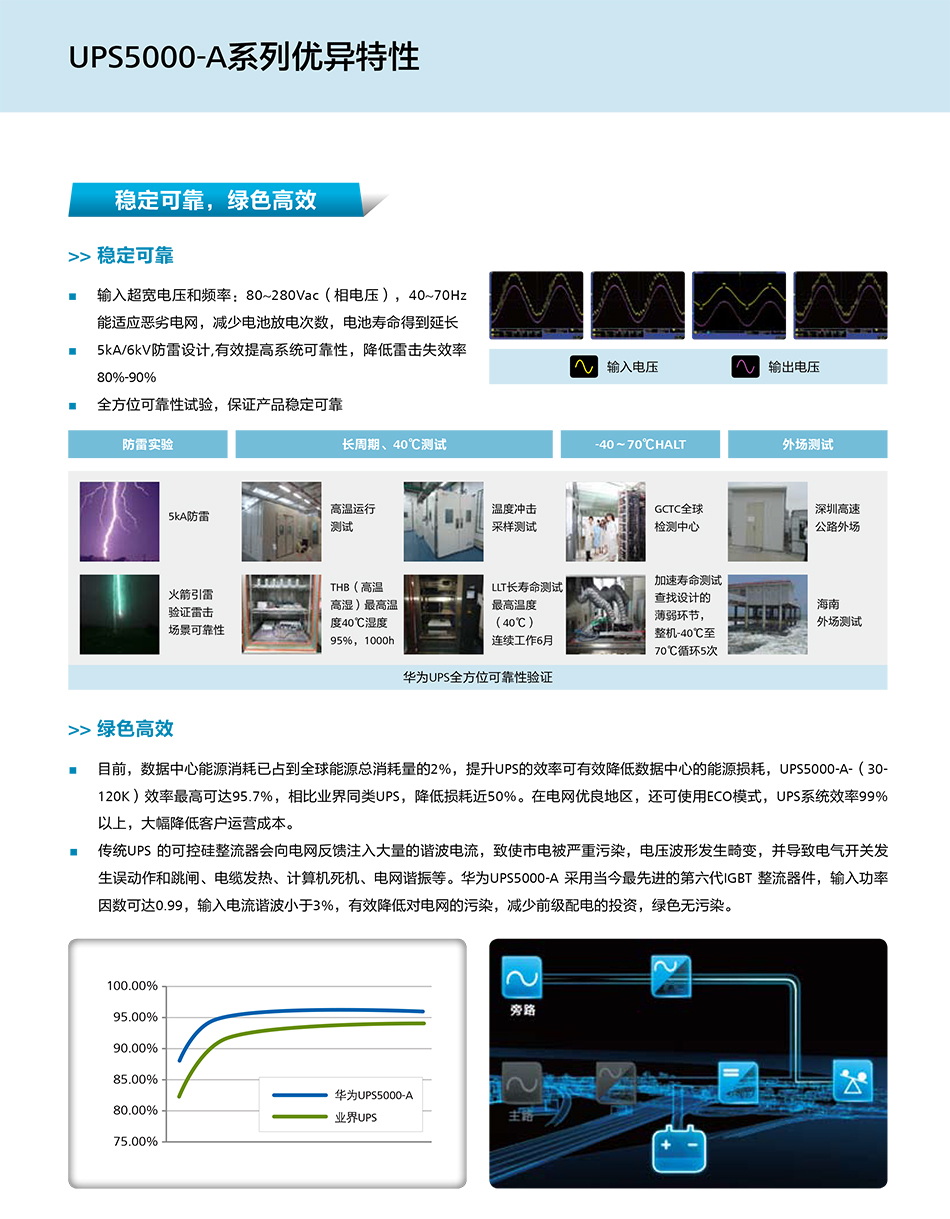

Series Introduction

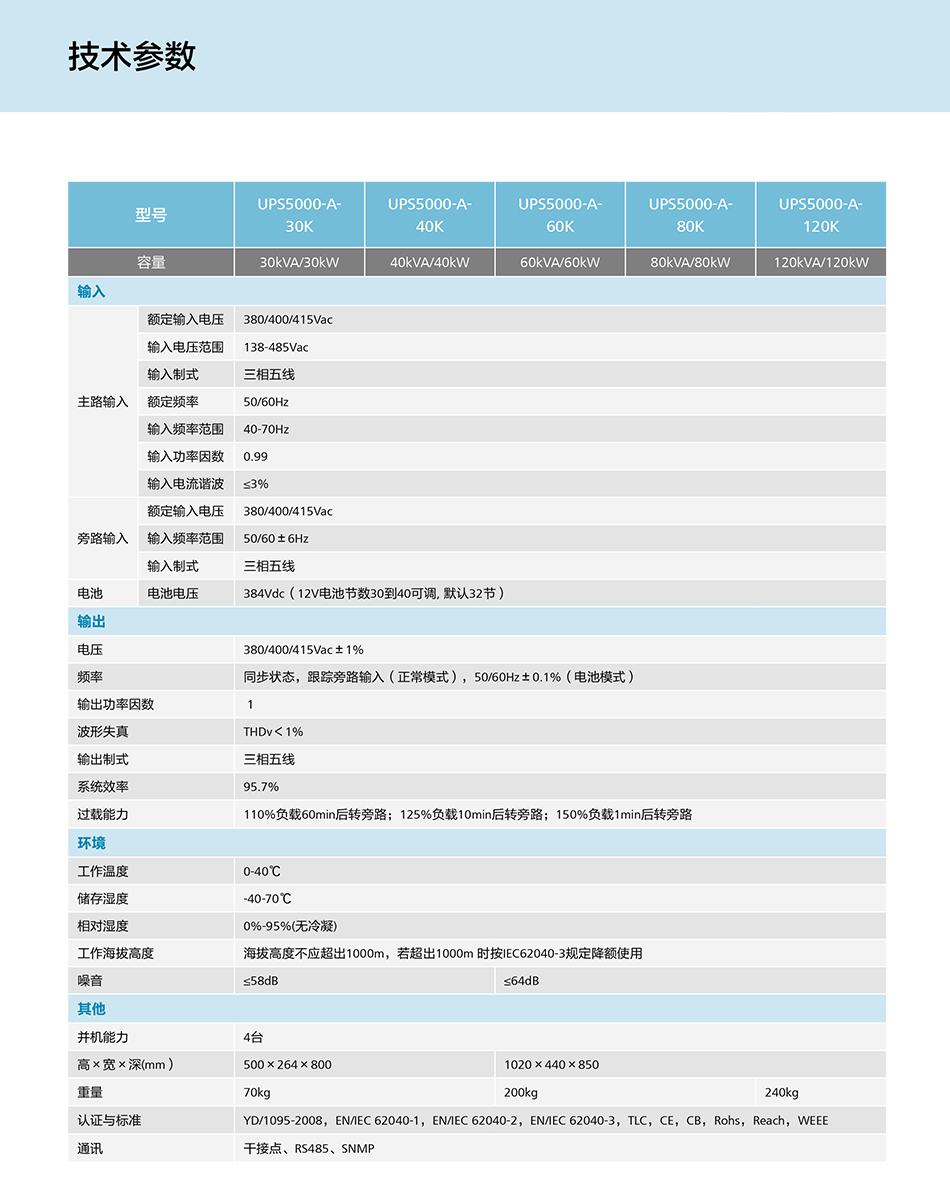

Detailed specifications:

Capacity	30KVA/30KW
Input format	Three-phase four-wire PE
Rated input voltage	380VAC/400VAC/415VAC (line voltage)
Input voltage range	138VAC ~ 485VAC 305VAC ~ 485VAC is not derated, 305VAC ~ 138VAC is derated to 40% according to power
Rated power	50Hz/60Hz
Input frequency range	40Hz~70Hz
Input power factor	Full load> 0.99, half load> 0.98
input current harmonic component	THDi<3% (linear load)

Input format	Three-phase four-wire PE
Rated input voltage	380VAC/400VAC/415VAC (line voltage)
Rated frequency	50/60Hz
Frequency range	±6Hz (adjustable, 0.5Hz increments; default ±2 Hz)
Input mode	Supports both main side-source and different source modes
Bypass current-averaging function	When parallel, the average flow is achieved by controlling the length of the cable, and the average flow is less than 25%.

Battery voltage	360VDC ~ 480VDC(30~40 sections optional, default 32 sections). 6% derating for 30 batteries
Battery Management	Intelligent Battery Management
One key cold start function	In the event of a mains power outage, the UPS can be started to supply power to the load only by the energy of the battery.
Battery pack sharing function	Support the sharing of battery packs in parallel between machines, and the default battery is not shared in the machine.
Charging voltage requirements	Average charging voltage: 2.35V/cell, floating voltage: 2.25V/cell

Output system	Three-phase four-wire PE
Voltage	380 VAC/400 VAC/415 VAC ±1% (line voltage)
Frequency	Synchronization status, tracking bypass input (mains mode), 50 Hz/60 Hz ± 0.25% (inverter local oscillator frequency)
waveform distortion	THDv<1% at 100% linear load
output power factor	1
Switching time	0ms
Output voltage unbalance	±3%
Overload capacity	Inverter overload capacity: When the load is between 105% and 110%, the system will transfer to bypass after 60 minutes. When the load is between 110% and 125%, the system will transfer to bypass after 10 minutes. When the load is between 125% and 150%, it will switch to bypass after 1 minute. Transient overload capacity: The load is ≤125%, allowing for long-term operation. Load = 1000%, 100ms

Route mode	Support incoming line
IP rating	IP20
Product dimensions
High	500 mm
Wide	264 mm
deep	800 mm
Weight	70 KG
Communication function	Support SLOT card expansion port, PS485 serial port, FE port; Support SNMP, MODBUS communication protocol

Operating temperature	0 - 40 °C
Relative humidity	0- 95% RH (no condensation)
Altitude	0m ~ 1000m More than 1000m start reference IEC62040-3 standard derating, the highest 4000m
Storage temperature	-40- 70 °C
Noise	100%load:30/40kVA 58dBA;60/80/120kVA 63dBA; 50%load:30/40kVA 51dBA;60/80/120kVA 60dBA

30KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	10mm²
Input neutral conductor size	16mm²
Input earth conductor size	16mm²
Input breaker	63A -3P
Output parameter
Output voltage	380V AC
Output conductor size	10mm²
Output neutral conductor size	16mm²
Output earth conductor size	16mm²
Output breaker	63A-3P
Battery specifications
External battery breaker	150A-3P
External battery cable size	10mm²
