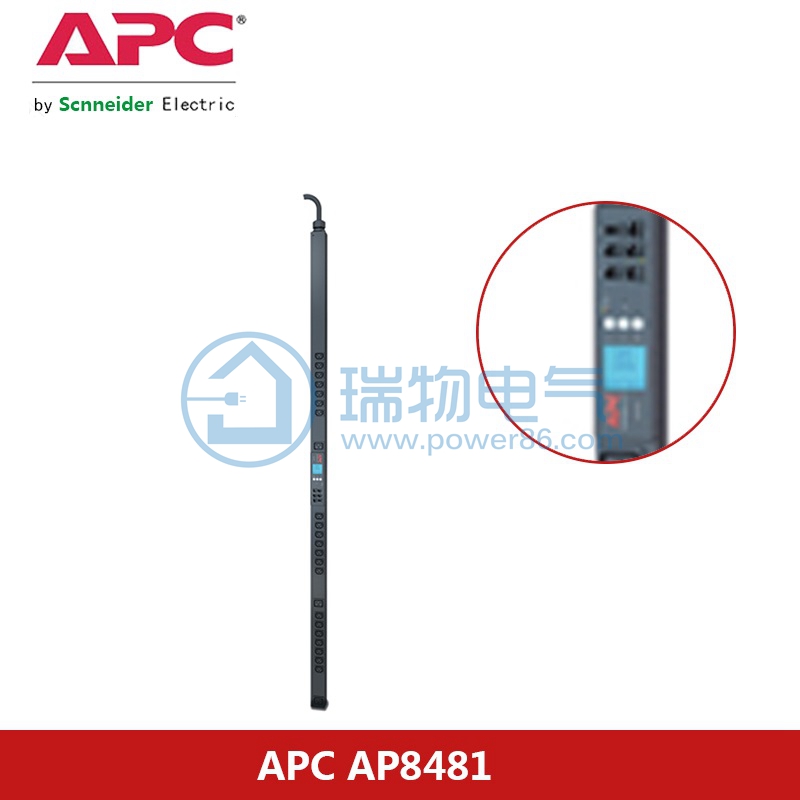

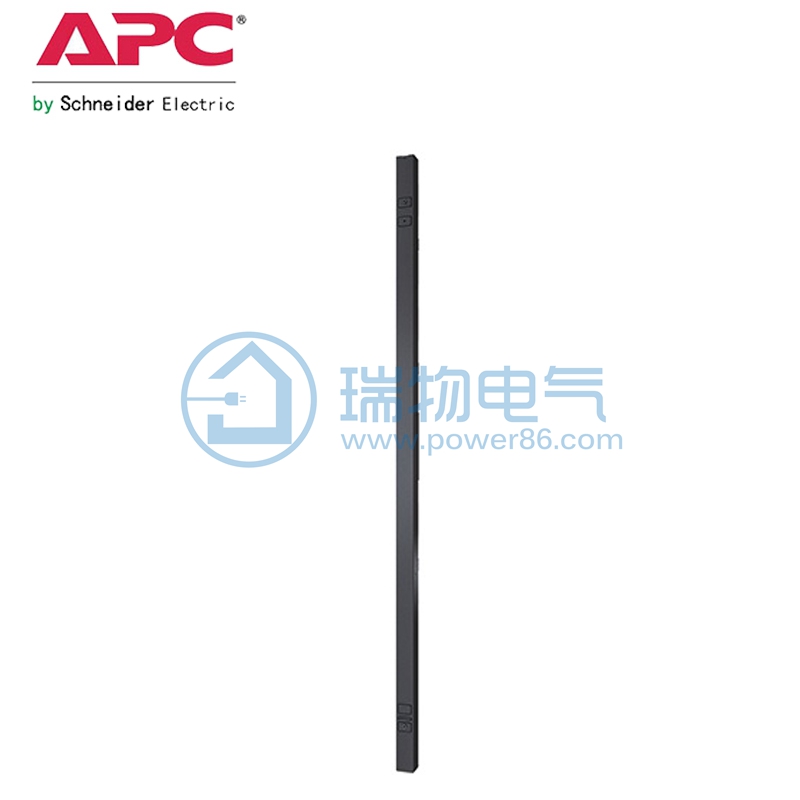

AP8481

Name: AP8481
SKU: 52
Availability: InStock

Price on request

Ratings

View on mobile

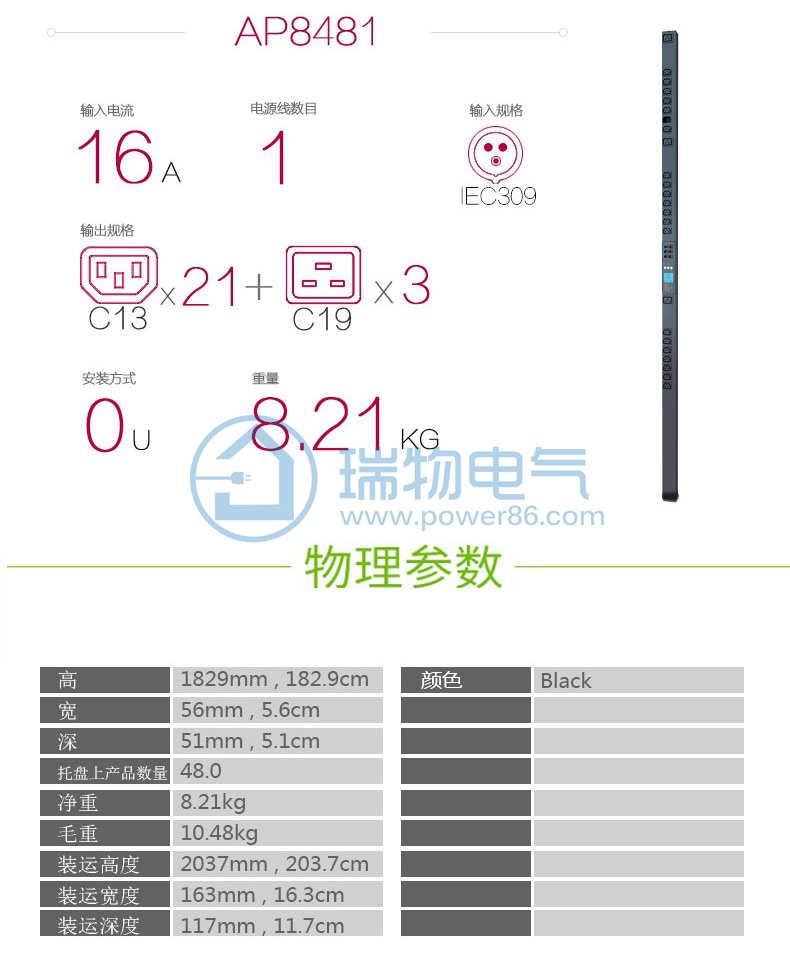

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1928/52/52_c0.jpg

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	16A
Output Connections	(21) IEC 320 C13；(3) IEC 320 C19
Input
Rated input voltage	400V 3PH
Input frequency	50/60
Adjusted Reduced Input Current (North America)	16A
Input terminal type	IEC 309 16A 3P+N+PE；IEC 309 20A 3P+N+E
Number of power cords	1
Maximum line current per phase	16A
Maximum input current	16A
Load capacity	5000kVA
Physical indicators
Net weight	8.21KG
High	1829.00 mm
Wide	56.00 mm
deep	51.00 mm
Transport weight	10.48KG
Transportation height	2037.00mm
Transport width	163.00 mm
Transport length	117.00 mm
Colour	Black
Quantity of products on each transport pallet	4.00
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
Battery Directive	Conform to
Battery Precautions	Contains Lithium Coin Cell

Data not yet provided
