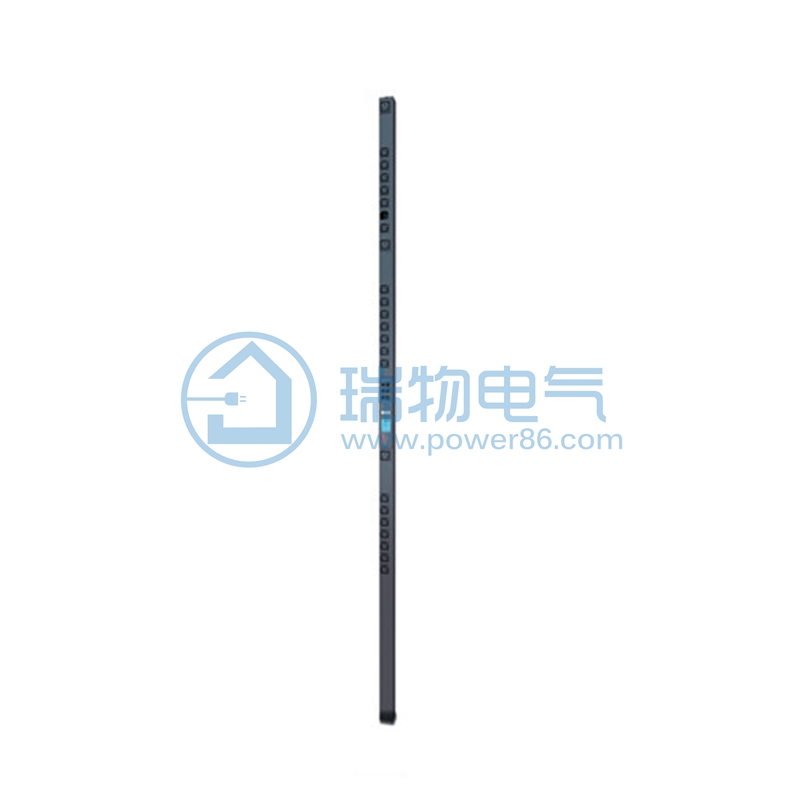

AP8459WW

Name: AP8459WW
SKU: 42
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	200V, 208V, 230V
Maximum total load current	16A
Output Connections	(21) IEC 320 C13;(3) IEC 320 C19
Overload protection	No
Input
Rated input voltage	200V, 208V, 230V
Input frequency	50/60Hz
Adjusted Reduced Input Current (North America)	16A
Input terminal type	IEC 320 C20
Number of power cords	1
Acceptable Input Voltage	100-240 VAC
Maximum input current	20A
Physical indicators
Net weight	6.08KG
High	1829.00 mm
Wide	56.00 mm
deep	51.00 mm
Transport weight	8.35KG
Transportation height	2037.00 mm
Transport width	163.00 mm
Transport length	117.00 mm
Colour	Black
Quantity of products on each transport pallet	48.00
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL as listed, VCCI Class A, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC
Battery Directive	Conform to
Battery Precautions	Contains Lithium Coin Cell

Data not yet provided
