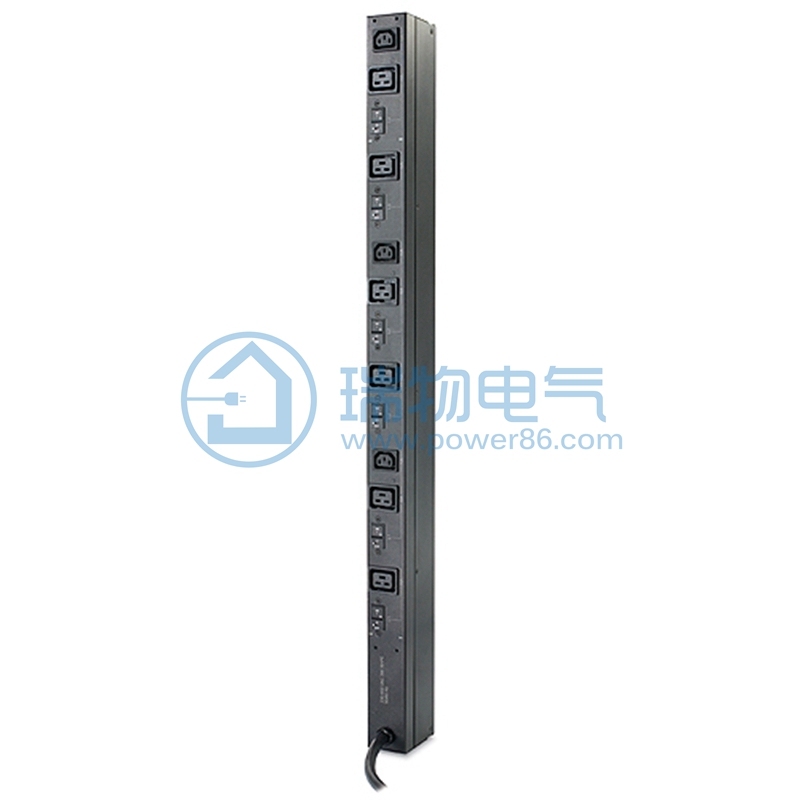

AP7555A

Name: AP7555A
SKU: 38
Availability: InStock

Price on request

Ratings

View on mobile

Detailed specifications:

Output
Rated output voltage	230V
Maximum total load current	32A
Output Connections	(3) IEC 320 C13；(6) IEC 320 C19
Overload protection	Yes
Input
Rated input voltage	400V 3PH
Input frequency	47-63Hz
Input terminal type	IEC 309 32A 3P+N+PE
Input line length	1.83 meters
Number of power cords	1
Acceptable Input Voltage	200-250 VAC
Maximum line current per phase	32A
Physical indicators
Net weight	4.76KG
High	927.00 mm
Wide	55.00 mm
deep	88.00 mm
Transport weight	6.26KG
Transportation height	1067.00 mm
Transport width	298.00 mm
Transport length	83.00 mm
Colour	Black
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	CE, GOST, VDE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
PEP	Available in Documentation tab
EOLI	Available in Documentation tab

Data not yet provided
