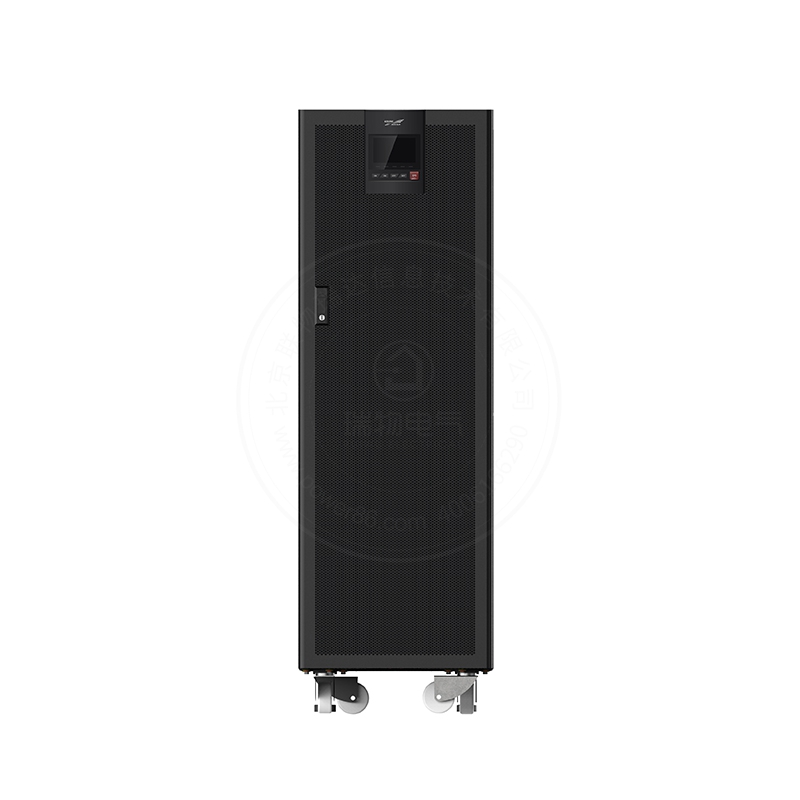

Kehua YTR33100

Name: Kehua YTR33100
SKU: 5499
Availability: InStock

Three-in-three-out 100K long machines include tax in most areas

Price on request

Ratings

UPS runtime configurations

View on mobile

Product introduction https://img.rwyun.com/power86/rs1/ups/743/2591/5499/5499_c0.jpg

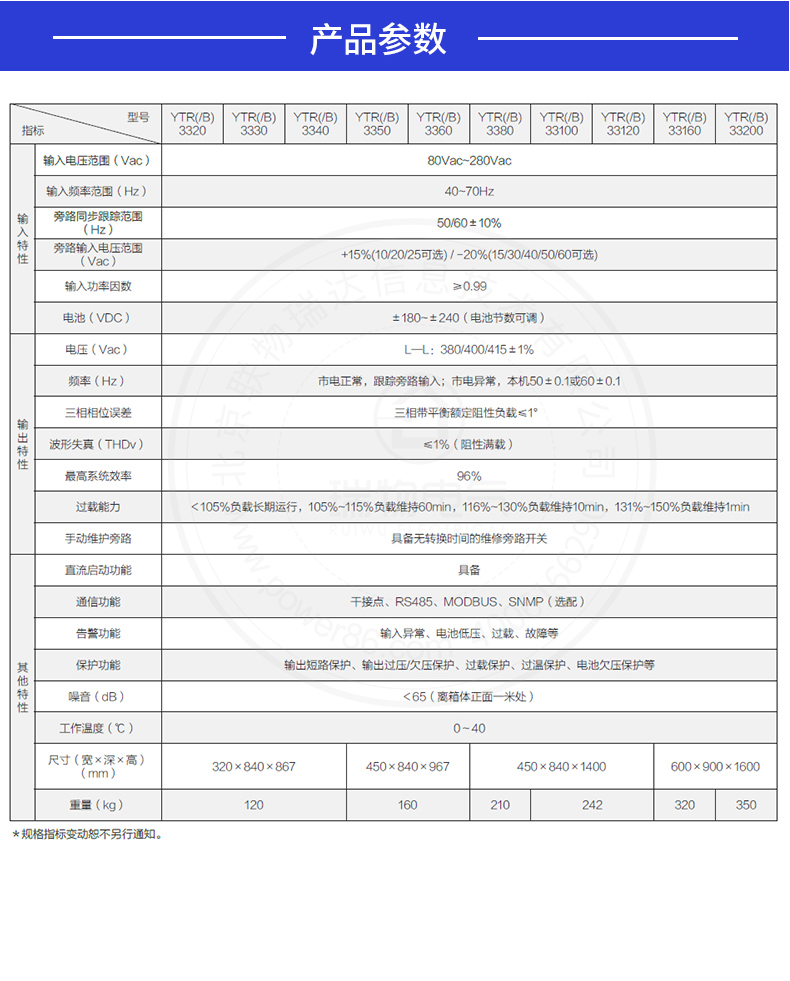

Detailed specifications:

Input voltage range (Vac)	80Vac~280Vac
Input frequency range (Hz)	40-70Hz
Bypass Sync Tracking Range (Hz)	50/60±10%
Bypass Input Voltage Range (Vac)	-15%(10/20/25 optional)/-20%(15/30/40/50/60 optional)
Input power factor	≥0.99
Battery （VDC）	±180 to ±240 (adjustable number of battery cells)

Voltage (Vac)	L-L:380/400/415±1%
Frequency (Hz)	When utility power is normal, the bypass input is tracked; when utility power is abnormal, the unit operates at 50±0.1Hz or 60±0.1 Hz.
three-phase phase error	Three-phase with balanced rated resistive load ≤1°
Waveform distortion (THDv)	≤1% (resistive full load)
Maximum system efficiency	96%
Overload capacity	<105% load for long-term operation, 105%~ 115% load for 60min,116%~ 130% load for 10min,131%~ 150% load for 1min
Manual Maintenance Bypass	Maintenance bypass switch with no changeover time

DC start function	Possess
Communication function	Dry contact, RS485, MODBUS, SNMP (optional)
Alert feature	Abnormal input, low battery voltage, overload, fault, etc.
Protection function	Output short circuit protection, output overvoltage/undervoltage protection, overload protection, over temperature protection, battery undervoltage protection, etc.
Noise （dB）	<65 (one meter from the front of the box)
Operating temperature （℃）	0~40
Size (width * depth * height)(mm))	4508401400
Weight （kg）	242

100KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	120mm²
Input neutral conductor size	120mm²
Input earth conductor size	50mm²
Input breaker	250A -Input AC 380V: Output AC 380V
Output parameter
Output voltage	380V AC
Output conductor size	95mm²
Output neutral conductor size	95mm²
Output earth conductor size	50mm²
Output breaker	200A -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	200A-Input AC 380V: Output AC 380V
External battery cable size	95mm²
