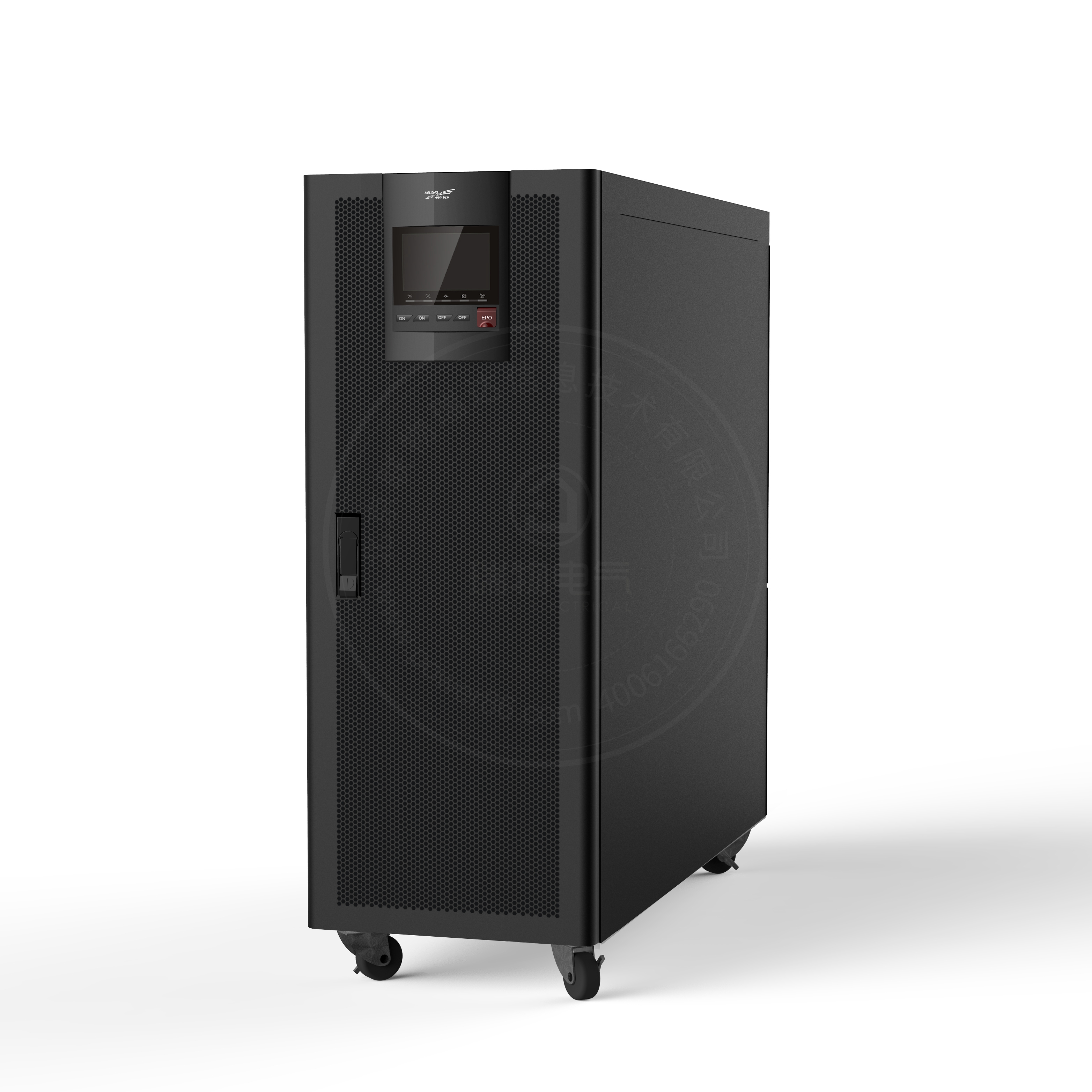

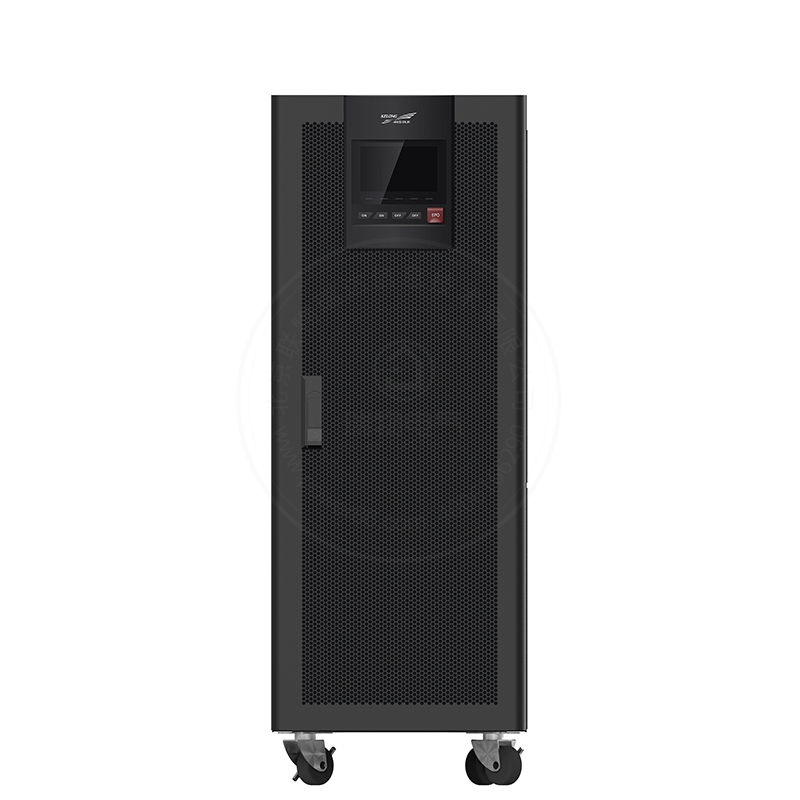

Kehua YTR3320

Name: Kehua YTR3320
SKU: 5493
Price: 19430 CNY
Availability: InStock

Three-in three-out 20KVA high frequency long delay voltage regulator

¥19,430.00List price ¥41291.00

Ratings

UPS runtime configurations

View on mobile

Product introduction https://img.rwyun.com/power86/rs1/ups/743/2591/5493/5493_c0.jpg

Detailed specifications:

Input voltage range (Vac)	80Vac~280Vac
Input frequency range (Hz)	40-70Hz
Bypass Sync Tracking Range (Hz)	50/60±10%
Bypass Input Voltage Range (Vac)	+15%(10/20/25 optional)/-20%(15/30/40/50/60 optional)
Input power factor	≥0.99
Battery （VDC）	±180 to ±240 (adjustable number of battery cells)

Voltage (Vac)	L-L:380/400/415±1%
Frequency (Hz)	When utility power is normal, the bypass input is tracked; when utility power is abnormal, the unit operates at 50±0.1Hz or 60±0.1 Hz.
three-phase phase error	Three-phase with balanced rated resistive load ≤1°
Waveform distortion (THDv)	≤1% (resistive full load)
Maximum system efficiency	96%
Overload capacity	<105% load for long-term operation, 105%~ 115% load for 60min,116%~ 130% load for 10min,131%~ 150% load for 1min
Manual Maintenance Bypass	Maintenance bypass switch with no changeover time

DC start function	Possess
Communication function	Dry contact, RS485, MODBUS, SNMP (optional)
Alert feature	Abnormal input, low battery voltage, overload, fault, etc.
Protection function	Output short circuit protection, output overvoltage/undervoltage protection, overload protection, over temperature protection, battery undervoltage protection, etc.
Noise （dB）	<65 (one meter from the front of the box)
Operating temperature （℃）	0~40
Size (width * depth * height)(mm))	320840867
Weight （kg）	120

20KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²

20KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²
