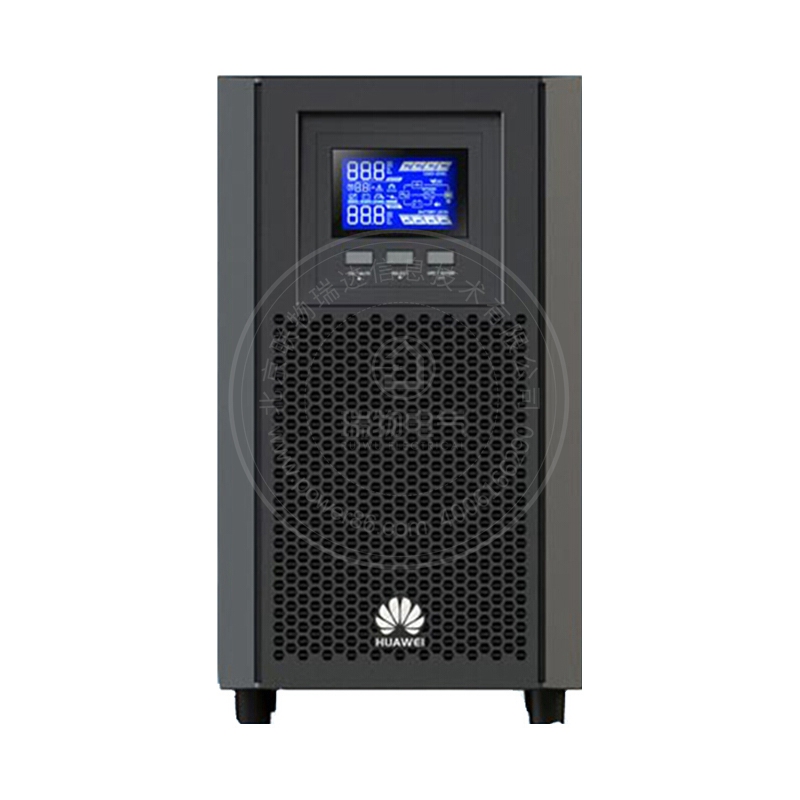

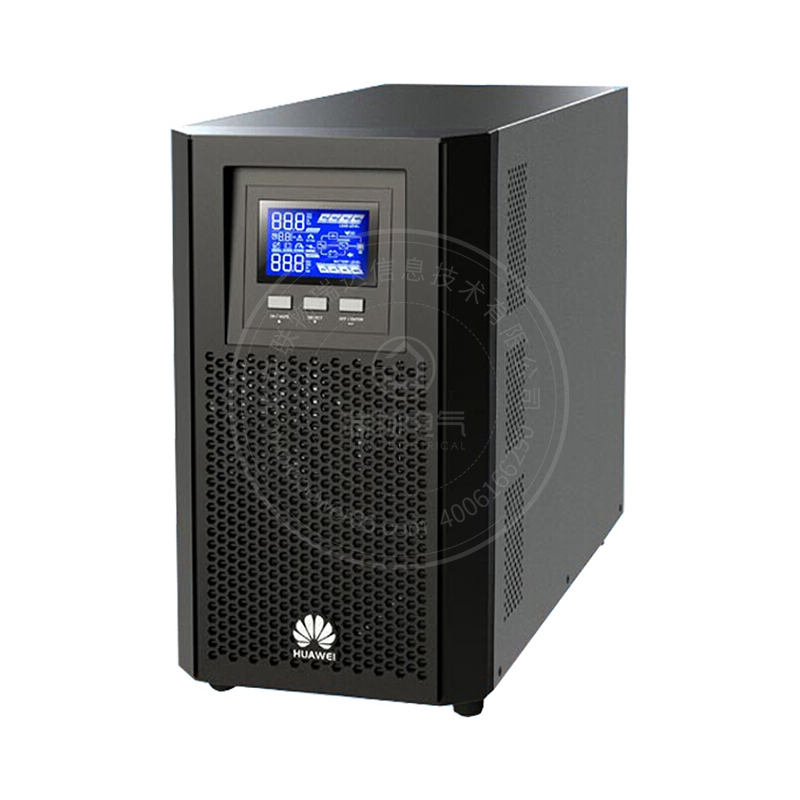

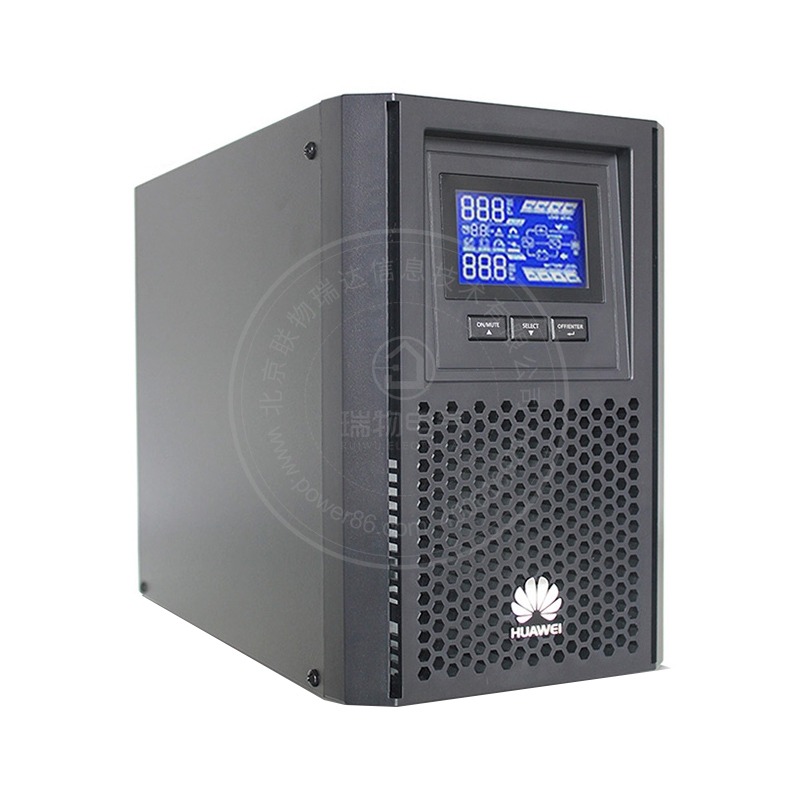

HuaweiUPS2000-A-1KTTS

Name: HuaweiUPS2000-A-1KTTS
SKU: 5544
Price: 1182 CNY
Availability: InStock

1K built-in battery labeling machine includes tax in most areas

¥1,182.00

Ratings

View on mobile

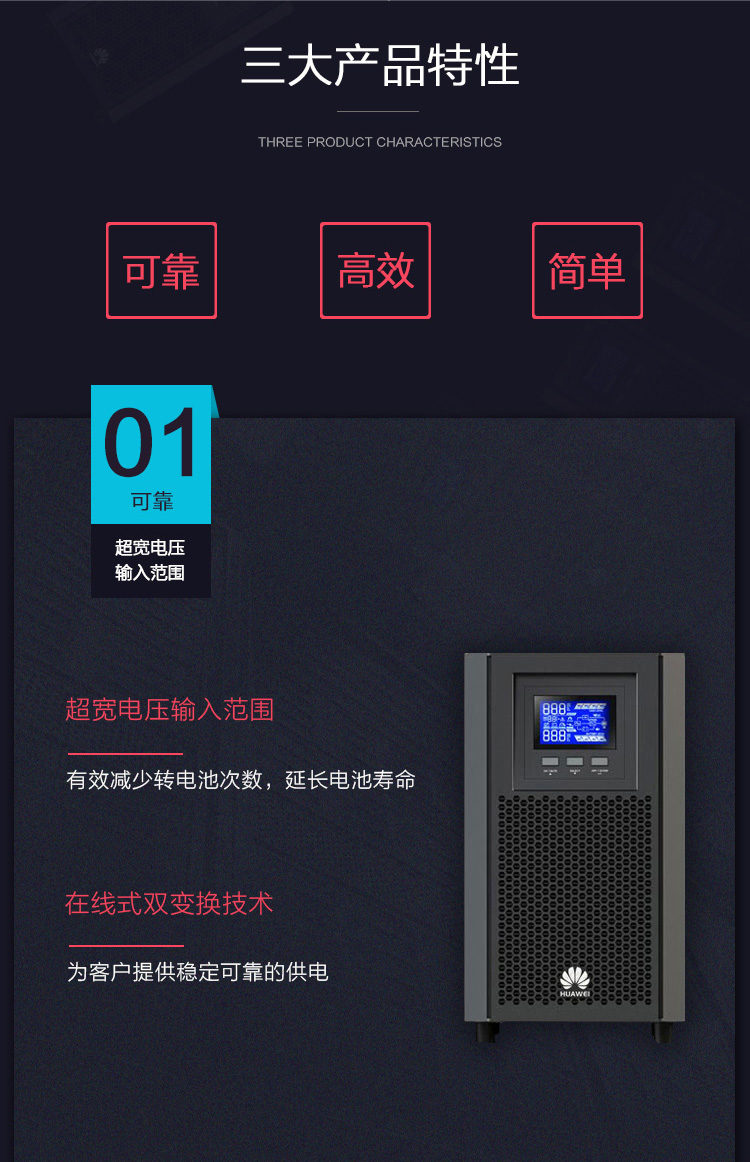

Product introduction https://img.rwyun.com/power86/rs1/ups/2637/2638/5544/5544_c0.jpg

Detailed specifications:

UPS2000-A-1KTTS input

Capacity	800W/1000 VA
input and output system	Single inlet and single outlet
Input format	L+N+PE
Rated input voltage	220/230/240Vac
Input voltage range	110-300VAC
Input frequency range	40-70Hz
Input power factor	0.99

Rated input voltage	220/230/240Vac
Input frequency range	47-53Hz/57-63Hz

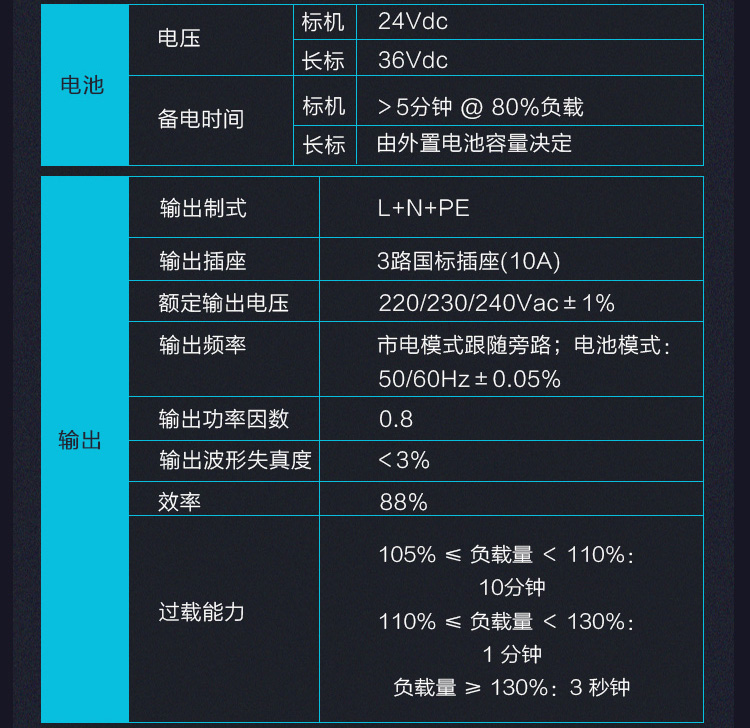

Battery voltage	24Vdc
Standby time	> 5 minutes @ 80% load

Output system	L+N+PE
Output socket	3-way national standard socket (10A)
Rated output voltage	220/230/240Vac±1%
Output frequency	Utility mode follows the bypass; Battery mode: 50/60Hz ± 0.05%
output power factor	0.8
Output waveform distortion	＜3%
Efficiency	88%
Overload capacity	105% ≤ load <110%: 10 minutes 110% ≤ load <130%: 1 minute Load factor ≥ 130%: 3 seconds

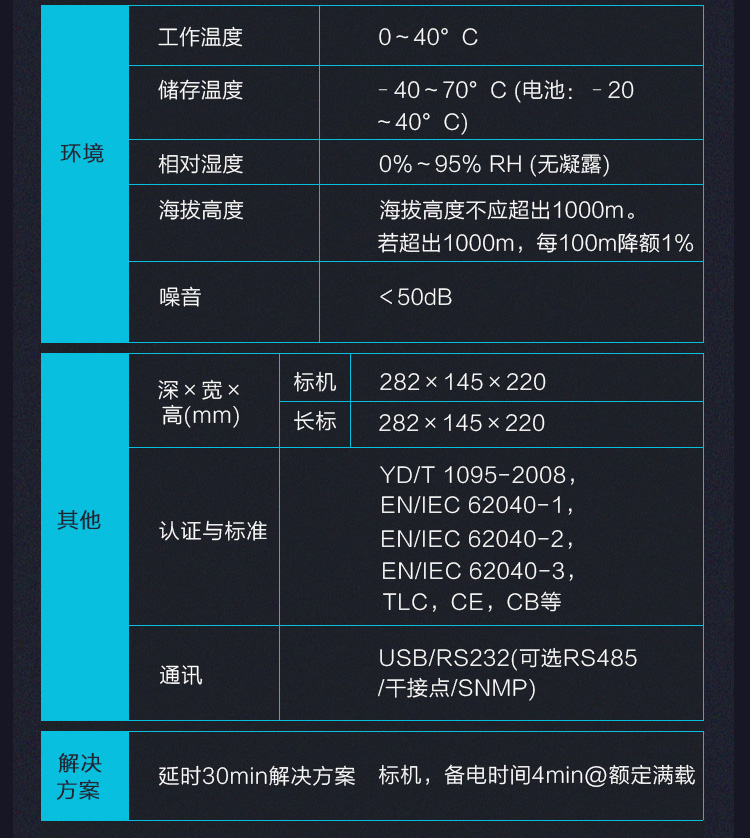

Operating temperature	0 - 40 °C
Relative humidity	0 - 95% RH (non-condensing)
Altitude	<1000m without derating; If it exceeds 1000m, derating 1% per 100m
Storage temperature	-40 - 70 °C（Battery：-20~40℃）
Noise	＜50dB

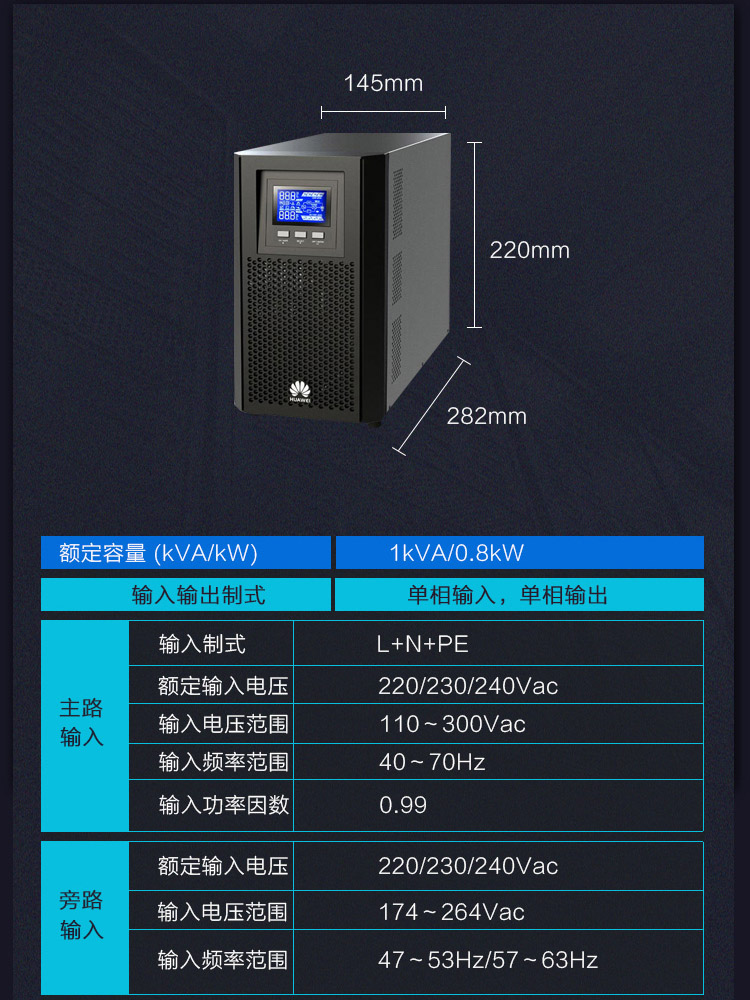

High	220 mm
Wide	145 mm
deep	282 mm
Net weight	9.8KG
Certification and Standards	YD/T 1095-2008 EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 TLC,CE,CB, etc

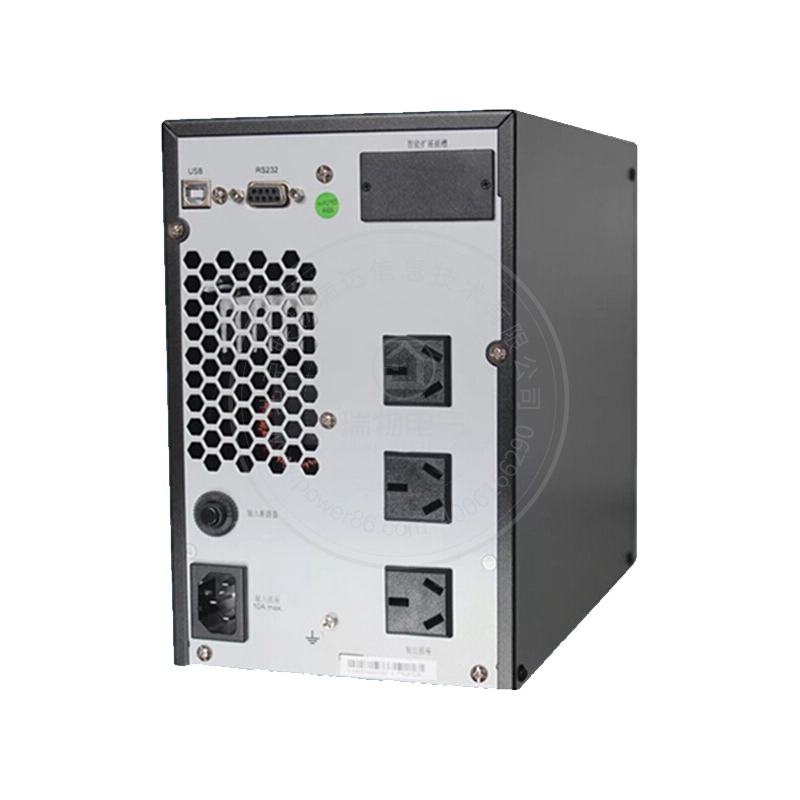

Communication function	USB/RS232 (optional RS485/dry contact/SNMP)

1KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
