HuaweiUPS2000-A-3KTTL

Name: HuaweiUPS2000-A-3KTTL
SKU: 5549
Price: 1974 CNY
Availability: InStock

3K long machine in most areas including tax

¥1,974.00

Ratings

UPS runtime configurations

View on mobile

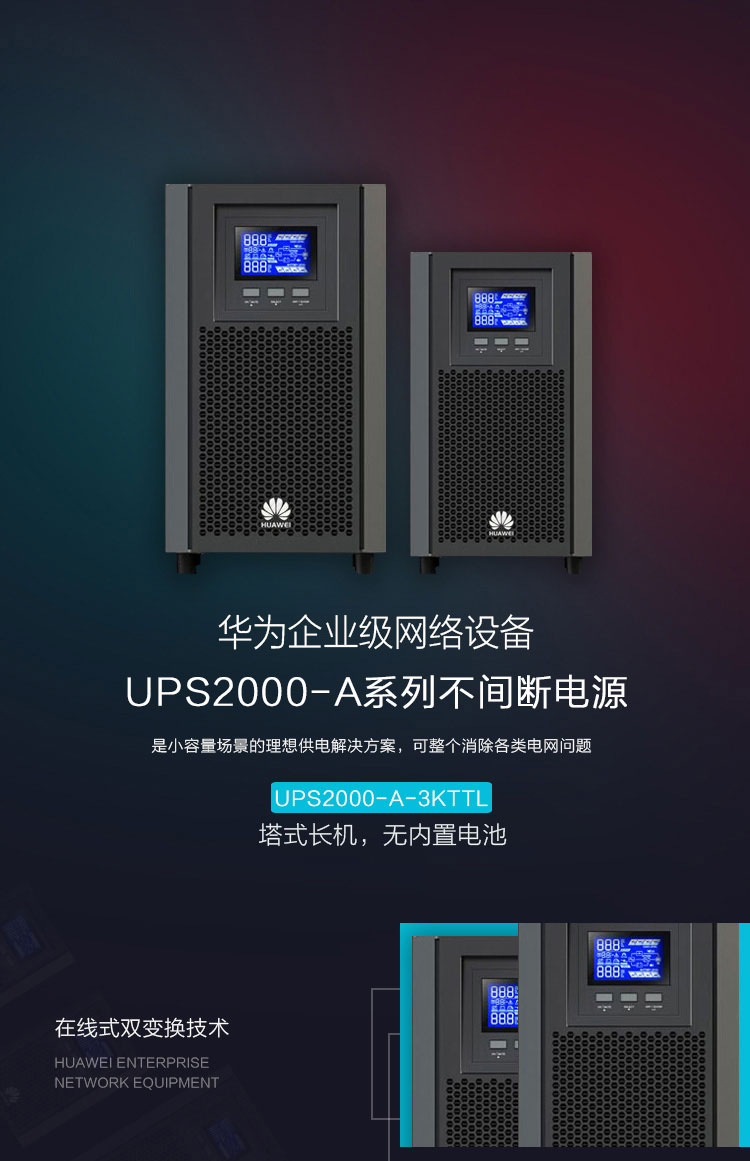

Product introduction https://img.rwyun.com/power86/rs1/ups/2637/2638/5549/5549_c0.jpg

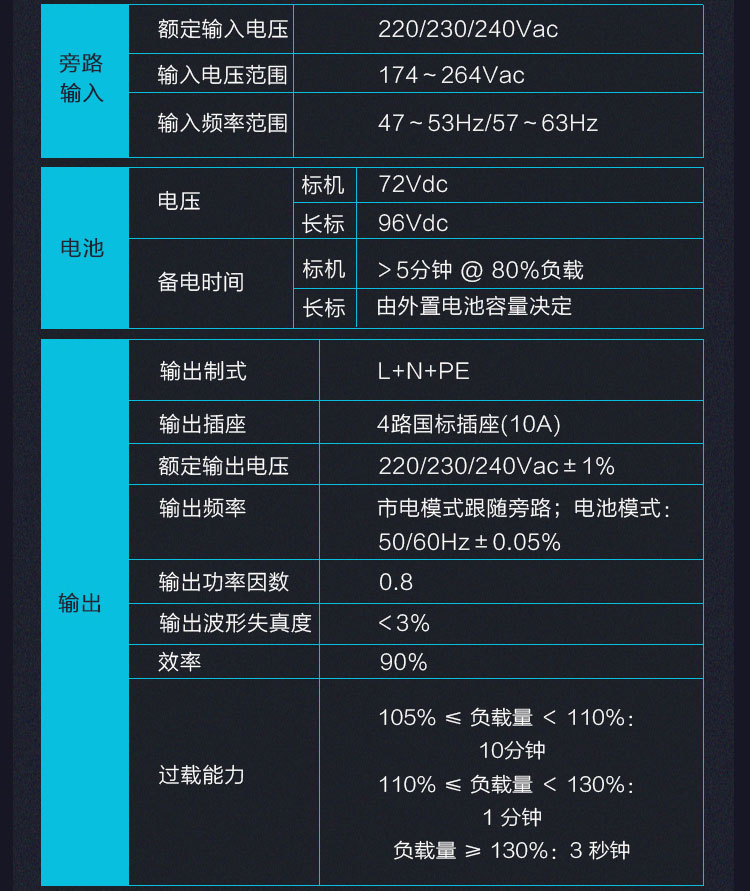

Detailed specifications:

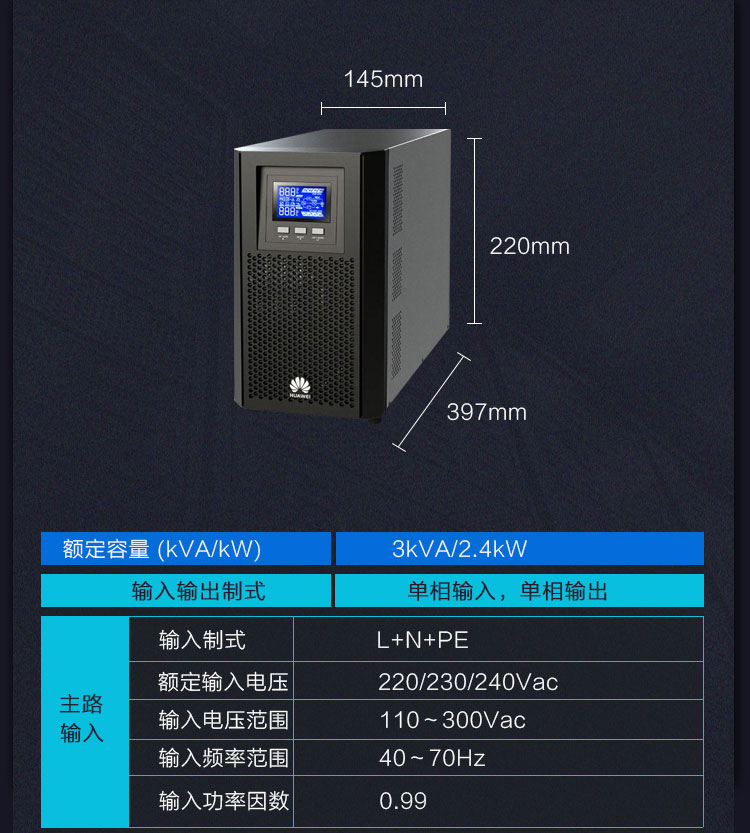

UPS2000-A-3KTTL input

Capacity	2400W/3000 VA
input and output system	Single inlet and single outlet
Input format	L+N+PE
Rated input voltage	220/230/240Vac
Input voltage range	110-300VAC
Input frequency range	47~70Hz
Input power factor	0.99

Rated input voltage	220/230/240Vac
Input frequency range	47-53Hz/57-63Hz

Battery voltage	96Vdc
Standby time	Determined by external battery capacity

Output system	L+N+PE
Output socket	4-way GB socket (10A)
Rated output voltage	220/230/240Vac±1%
Output frequency	Utility mode follows the bypass; Battery mode: 50/60Hz ± 0.05%
output power factor	0.8
Output waveform distortion	＜3%
Efficiency	90%
Overload capacity	105% ≤ load <110%: 10 minutes 110% ≤ load <130%: 1 minute Load factor ≥ 130%: 3 seconds

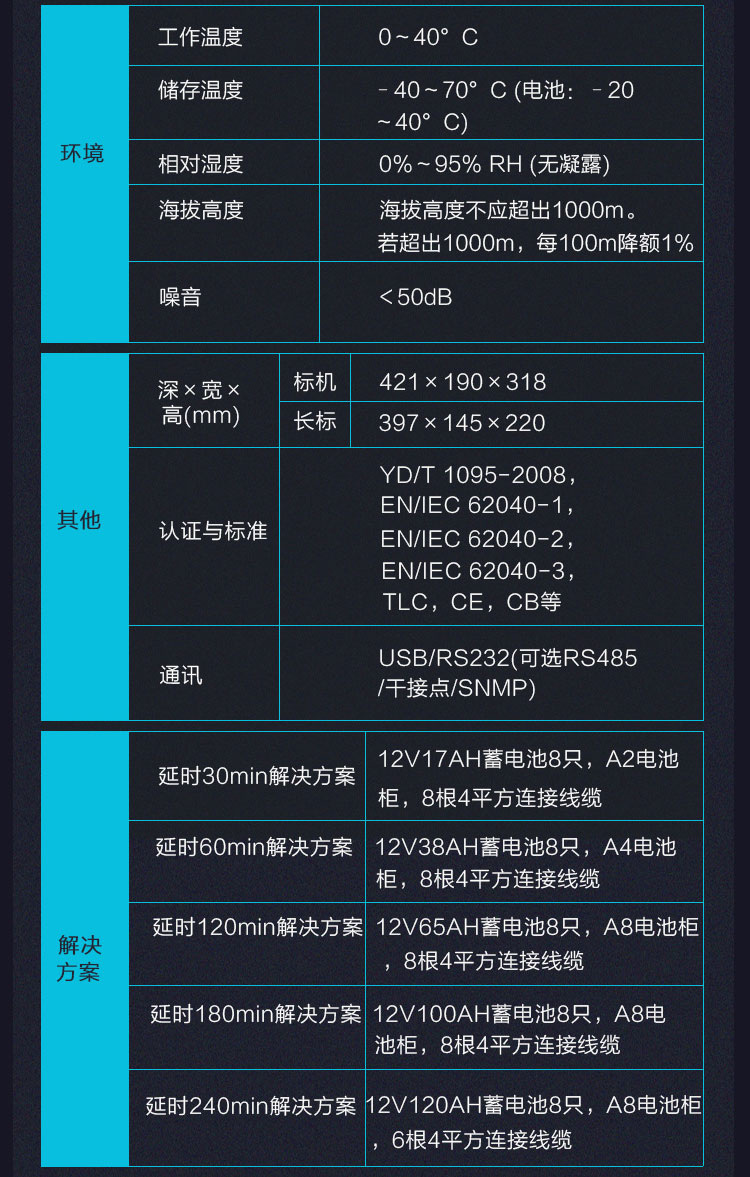

Operating environment	0 - 40 °C
Relative humidity	0 - 95% RH (no condensation)
Altitude	<1000m without derating; If it exceeds 1000m, derating 1% per 100m
Storage temperature	-40 - 70 °C（Battery：-20~40℃）
Noise	＜50dB

High	220 mm
Wide	145 mm
deep	397 mm
Net weight	20KG
Certification and Standards	YD/T 1095-2008, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, TLC,CCE,CB, etc
Communication function	USB/RS232 (optional RS485/dry contact/SNMP)

3KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	16A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	16A -2P
Battery specifications
External battery breaker	63A-2P
External battery cable size	4mm²
