Kehua YTG33100

Name: Kehua YTG33100
SKU: 5520
Availability: InStock

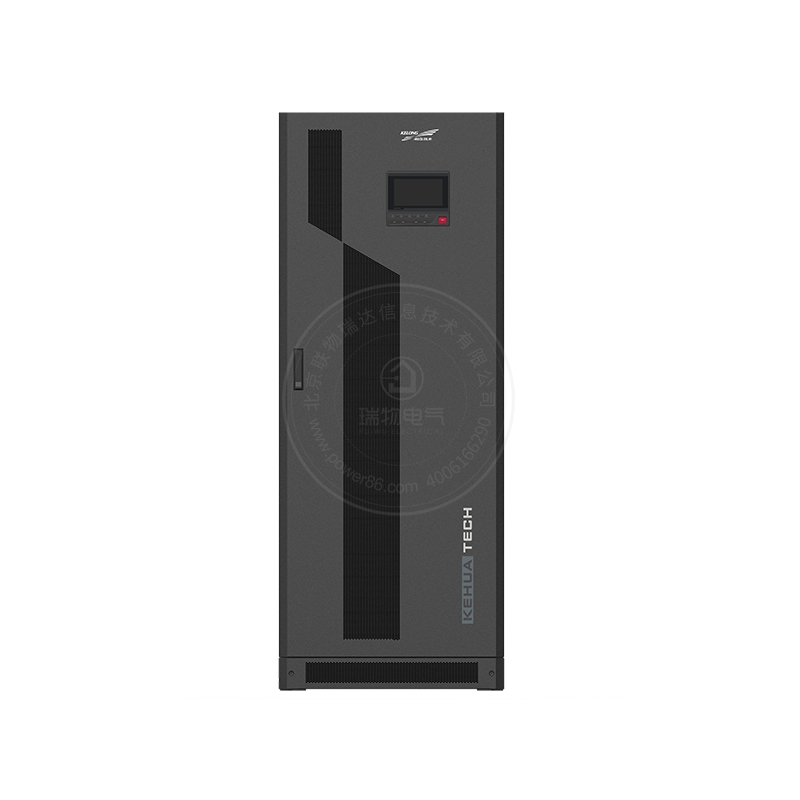

Kehua three-phase in / three-phase out Transformer-based 100KVA/90KW

Price on request

Ratings

UPS runtime configurations

View on mobile

Detailed specifications:

Rated input voltage （Vac）	380/400/415(L-L)
Input voltage range (Vac)	±25%
Input frequency （Hz）	40~70
Bypass Sync Tracking Range (Hz)	50/60±10% (5% optional)
Phase number	Three-phase four-wire PE
Battery voltage	348

Capacity （kVA）	100
Output power factor (PF)	0.9
Voltage (VAC)	380/400/415±1%
Frequency (Hz)	When utility power is normal, it automatically synchronizes; when utility power is abnormal, the unit operates at 50Hz (60 Hz) ± 0.2%.
Waveform	Sine wave, THD<2% (linear load)
Overload capacity	Inverter state: 125% full load for 10 minutes; 150% full load for 1 minute
system efficiency	Up to 94%

Communication function	Support RS232/RS485, SNMP, dry contact communication
Alert feature	Abnormal mains supply, UPS fault, battery undervoltage, input overload, etc.
Protection function	Battery undervoltage protection, overload protection, short circuit protection, over temperature protection, input undervoltage protection, etc.
Operating temperature （℃）	-5~40
Relative humidity	0% ~ 95% (no condensation)
Noise （dB）	＜65
Size (width * depth * height)(mm)6 pulses	7008001800
Weight （kg）	600

100KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	120mm²
Input neutral conductor size	120mm²
Input earth conductor size	50mm²
Input breaker	250A -Input AC 380V: Output AC 380V
Output parameter
Output voltage	380V AC
Output conductor size	95mm²
Output neutral conductor size	95mm²
Output earth conductor size	50mm²
Output breaker	200A -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	200A-Input AC 380V: Output AC 380V
External battery cable size	95mm²
