Kehua
Kehua FR-UK3110
Kehua Online double-conversion Transformer-based three-phase in / single-phase out 10K/8KW
- Model
- Kehua FR-UK3110
- Capacity / Power
- 10KVA / 8KW
- Dimensions mm
- 300*780*720
Price on requestView details

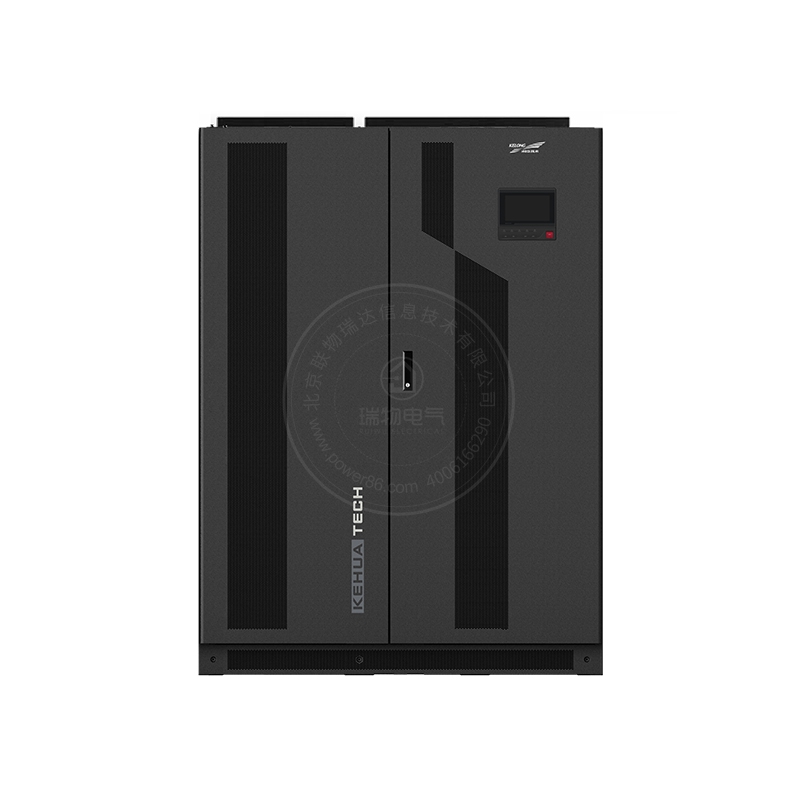

Kehua YTG33200
Kehua three-phase in / three-phase out Transformer-based 200KVA/180KW
Price on request
- Rated power
- 180KW (kilowatt)
- Rated capacity
- 200KVA (KVA)
- Input / output
- Three in and three out (380V:380V)
- External battery voltage
- (long machine) 384V (DC)
- Blocks per string
- 32 blocks
- Net weight
- 1280.00kg (kg)
- Gross weight
- 0.00kg (kg)
- Dimensions (L×W×H)
- 1000*1400*1850mm (mm) U
UPS runtime configurations
View on mobileDetailed specifications:
YTG33200 input characteristics
| Rated input voltage （Vac） | 380/400/415(L-L) |
| Input voltage range (Vac) | ±25% |
| Input frequency （Hz） | 40~70 |
| Bypass Sync Tracking Range (Hz) | 50/60±10% (5% optional) |
| Phase number | Three-phase four-wire PE |
| Battery voltage | 384 |
YTG33200 output characteristics
| Capacity （kVA） | 200 |
| Output power factor (PF) | 0.9 |
| Voltage (VAC) | 380/400/415±1% |
| Frequency (Hz) | When utility power is normal, it automatically synchronizes; when utility power is abnormal, the unit operates at 50Hz (60 Hz) ± 0.2%. |
| Waveform | Sine wave, THD<2% (linear load) |
| Overload capacity | Inverter state: 125% full load for 10 minutes; 150% full load for 1 minute |
| system efficiency | Up to 94% |
YTG33200 other features
| Communication function | Support RS232/RS485, SNMP, dry contact communication |
| Alert feature | Abnormal mains supply, UPS fault, battery undervoltage, input overload, etc. |
| Protection function | Battery undervoltage protection, overload protection, short circuit protection, over temperature protection, input undervoltage protection, etc. |
| Operating temperature （℃） | -5~40 |
| Relative humidity | 0% ~ 95% (no condensation) |
| Noise （dB） | ＜70 |
| Size (width * depth * height)(mm)6 pulses | 1400*1000*1850 |
| Weight （kg） | 1280 |
