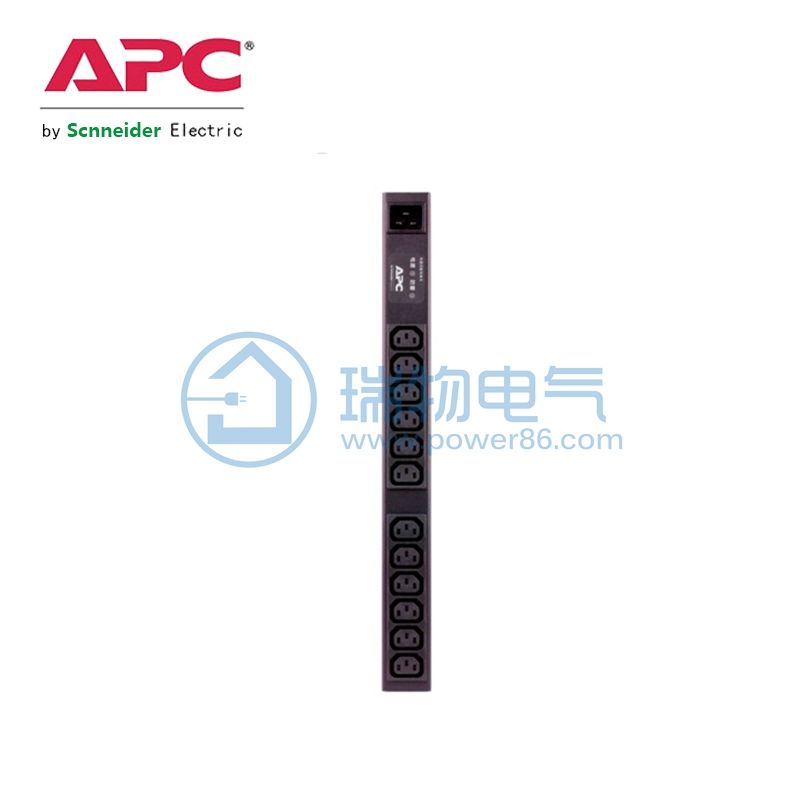

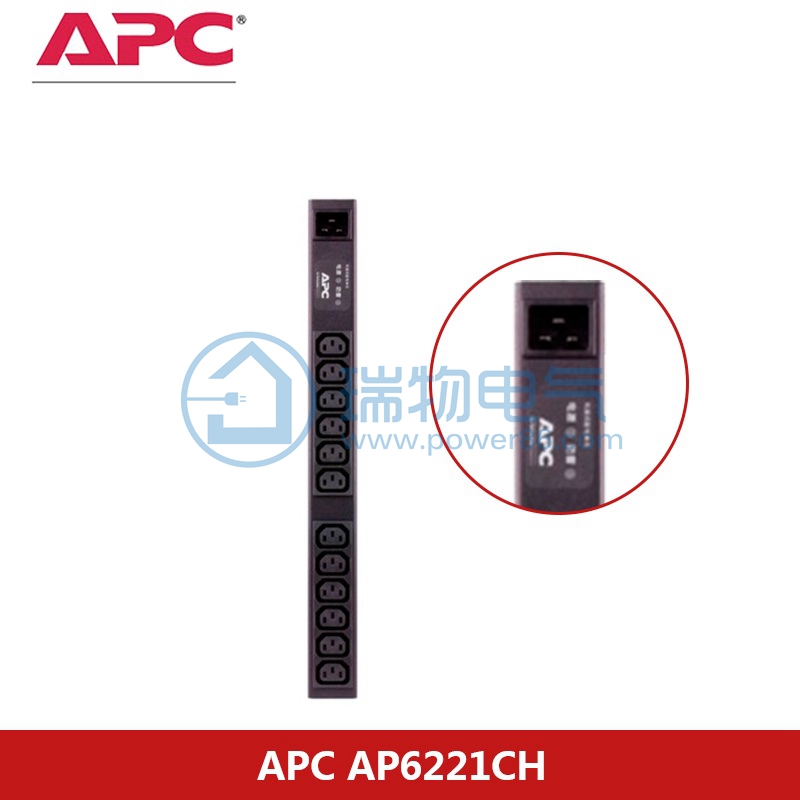

AP6221CH

Name: AP6221CH
SKU: 33
Availability: InStock

Price on request

Ratings

View on mobile

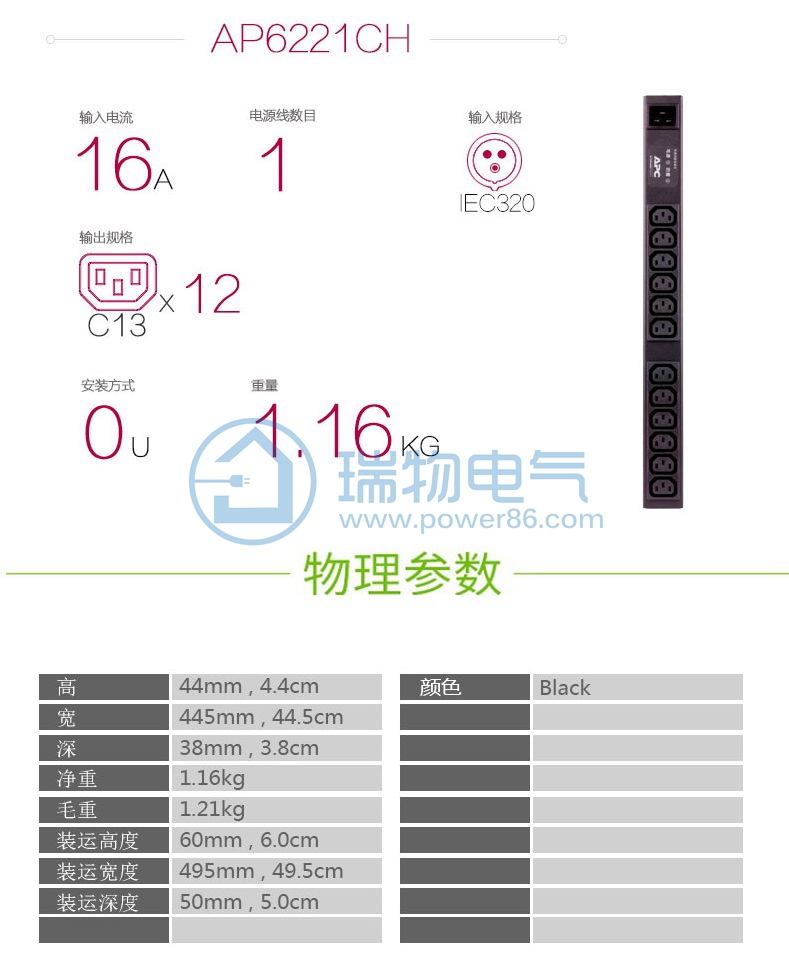

Product introduction https://img.rwyun.com/power86/rs1/pdu/1905/1927/33/33_c0.jpg

Detailed specifications:

Output
Rated output voltage	220V
Maximum total load current	16A
Output Connections	(12) IEC 320 C13
Overload protection	No
Input
Rated input voltage	220V
Input frequency	50Hz
Input terminal type	IEC-320 C20
Acceptable Input Voltage	200-240 VAC
Maximum line current per phase	16A
Maximum input current	16A
Load capacity	3520 VA
Physical indicators
Net weight	1.16KG
High	44.00 mm
Wide	445.00 mm
deep	38.00 mm
Transport weight	1.21KG
Transportation height	60.00 mm
Transport width	495.00 mm
Transport length	50.00 mm
Colour	Black
Environment
Operating environment	-5-45°C
Operating relative humidity	5-95%
Operating height	0-3000 m
Storage temperature	-25 - 65°C
Storage Relative Humidity	5-95%
Storage height	0-15000 m
Conformity
Management body certification	CE
Standard warranty	Repair or replacement within 2 years
Sustainable provision status
RoHS	Conform to
REACH	REACH: No SVHC

Data not yet provided

Power Distribution Units (PDU)
